FANUC A03B-0801-C127 | ID64D 64-Channel 24V DC Digital Input Module — Series 10/11/15 / 20ms / PLC Backplane / Discontinued

64 Digital Inputs for the Series 10/11/15 PLC Backplane

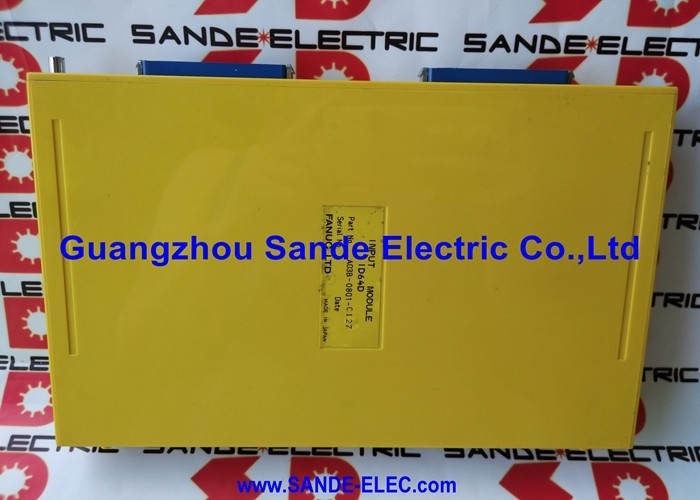

The A03B-0801-C127 is the ID64D input module for the PLC (Programmable Logic Controller) backplane in FANUC's Series 10, 11, and 15 CNC systems. The Series 10, 11, and 15 used a modular I/O architecture where input and output modules plug into a dedicated PLC backplane — a different mechanical arrangement from the later Zero C and 0i series. The A03B-0801-C127 is one of those plug-in modules, providing 64 channels of 24V DC digital input in one backplane slot.

The "ID64D" designation encodes the module's core specification: I = Input, D = DC type, 64 = channel count. Each of the 64 input channels accepts a 24V DC signal from the field — limit switches, proximity sensors, pushbuttons, relay contacts, and other DC binary signals. The 20ms input filter time applies to all channels: a signal must be held for at least 20ms before the module reports it to the CNC's PMC, filtering out electrical contact bounce and short noise pulses that would otherwise produce false ladder logic events.

The module connects to the PLC backplane via its edge connectors. Inside the module housing, the main processing board is the A16B-1310-0143 — this board is a component of the A03B-0801-C127 assembly and is not supplied as a separate stock item.

Key Specifications

20ms Input Filter — Contact Bounce and Noise Immunity

The 20ms filter time is long enough to reject contact bounce from mechanical switches — a typical mechanical contact bounce duration is under 10ms. Any pulse shorter than 20ms on a 24V DC input is ignored by the module. This provides built-in noise immunity for field wiring in electrically noisy machine environments without requiring external filtering components.

For applications where faster input response is required — high-speed skip signals, encoder triggers — a module with a shorter filter time or a dedicated high-speed input channel would be specified separately. The ID64D's 20ms filter suits standard machine interlock and sequencing inputs.

FAQ

Q1: What FANUC CNC series is the A03B-0801-C127 designed for?

The ID64D module is designed for FANUC Series 10, 11, and 15 CNC controls. These series used the A03B-0801 modular I/O backplane architecture. It is not compatible with the Zero (0) series I/O architecture, the i-series distributed I/O architecture, or other FANUC CNC generations that use different I/O system designs.

Q2: What does the 20ms input filter mean in practice?

The 20ms filter means the input signal must be present continuously for at least 20 milliseconds before the CNC's PMC registers a state change. This is intentional noise filtering — it rejects contact bounce from mechanical switches (typically under 10ms) and short electrical transients. A genuine 24V DC input signal from a proximity sensor or limit switch is held long enough to pass the filter. A brief noise spike is rejected.

Q3: Can the internal A16B-1310-0143 board be replaced separately if it fails?

The A16B-1310-0143 is a component within the A03B-0801-C127 module assembly — it is not available as a separate stock item. If the internal board fails, the correct replacement path is the complete A03B-0801-C127 module. The module is ordered and supplied as a complete unit; the internal board is not separately serviceable through the standard aftermarket.

Q4: All 64 inputs on the module read incorrectly. Is this a module failure or a wiring fault?

If all 64 inputs fail simultaneously, the module's common power supply or the interface between the module and the PLC backplane is the most likely cause — a single channel failure is a channel-level fault, but simultaneous failure of all channels points to a shared circuit element. Check the 24V DC common supply to the module, the backplane connector seating, and the backplane power supply before concluding the module itself has failed.

Q5: Where is the A03B-0801-C127 sourced after discontinuation?

Through the FANUC Series 10/11/15 I/O module aftermarket — specialist FANUC parts dealers, CNC repair services experienced with the Series 15 platform, and tested surplus suppliers. Confirm A03B-0801-C127 (ID64D) from the module's label before ordering. Adjacent A03B-0801 variants carry different channel counts or output functions and are not interchangeable with the ID64D input module.
