TR Electronic CEV65M-01460 Absolute Rotary Encoder — PROFIBUS-DP, 4096 PPR, 11–27V DC

Part Number: CEV65M-01460

Manufacturer: TR-Electronic GmbH

Type: Absolute Multiturn Encoder

Interface: PROFIBUS-DP

Resolution: 4,096 Steps/Rev × 4,096 Rev

Supply: 11–27 V DC

Origin: Germany

Some encoders just count pulses. The TR Electronic CEV65M-01460 does something more useful: it remembers where it is. As an absolute multiturn rotary encoder, it retains its exact position data even when power is removed — which means no homing cycle, no loss of reference, and no surprises when the machine starts back up after a shutdown.

Built in Germany by TR-Electronic GmbH, the CEV65M-01460 is part of the well-regarded CE-65 series — a line of industrial absolute encoders designed for the kind of environments where a sensor has to keep working regardless of what's happening around it.

Absolute vs. Incremental — Why It Matters Here

An incremental encoder tells you how far a shaft has moved from a starting point. Lose power, and that reference is gone. An absolute encoder, by contrast, assigns a unique digital code to every shaft position across its full range of motion — so the moment power returns, the controller already knows exactly where the axis stands.

For the CEV65M-01460, that coverage spans up to 4,096 revolutions × 4,096 steps per revolution, fully programmable. That's a total resolution of over 16 million unique positions — more than sufficient for the demanding positioning tasks found in heavy industrial machinery.

Technical Specifications

The PROFIBUS-DP Advantage

A lot of industrial encoders still rely on analog outputs or basic digital signals that require additional converter hardware. The CEV65M-01460 communicates natively over PROFIBUS-DP — the fieldbus standard that runs the backbone of countless PLC and DCS architectures in steel mills, crane systems, and heavy process plants worldwide.

What that means practically: the encoder connects directly to the PROFIBUS network. No signal conditioning modules, no intermediate hardware. Position and diagnostic data arrive at the controller in clean, structured packets. And with support for baud rates up to 12 Mbaud and compliance with PNO Profile Class 2, it integrates cleanly with any PROFIBUS-DP master without custom configuration gymnastics.

Industries and Applications

The CEV65M-01460 isn't a general-purpose part — it's built for environments that ask a lot of a sensor. According to TR-Electronic's own application guidance for the CE-65 series, typical deployment areas include:

Steel production — tracking roll positions, coiler angles, and ladle movements where absolute position retention is safety-critical.

Wind energy — pitch and yaw position monitoring on turbine systems that may power cycle frequently.

Crane and hoist systems — hook height tracking and slew angle measurement in port cranes and overhead gantry cranes.

Ship construction and maritime equipment — ramp, hatch, and deck machinery positioning in salt-air environments where IP65 sealing earns its keep.

Packaging and logistics — conveyor divert positions and accumulation system monitoring.

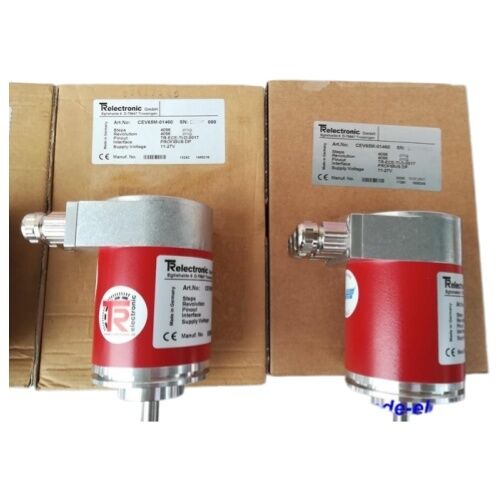

Condition: New In Box

This unit is offered new in original manufacturer's packaging — unused, factory-sealed, with full original labeling intact. For maintenance teams sourcing a like-for-like replacement on an existing PROFIBUS-DP installation, buying new-in-box avoids the uncertainty of unknown service hours and wear history that comes with refurbished units.

The CEV65M-01460 is a mature part with broad availability in the secondary market as well, though new stock is the preferred option for any application where unexpected encoder failure would cause significant downtime.

A Note on Programmability

One feature that tends to get overlooked: both the steps-per-revolution and the number of active revolutions are fully programmable on this encoder via the PROFIBUS master. This means a single hardware SKU can be configured to match specific gear ratios, measuring ranges, or legacy system requirements without needing a custom-wound part. For a maintenance engineer standardizing spare parts inventory, that flexibility has real value.

FAQ

Q1: Is the CEV65M-01460 an incremental or absolute encoder?

It's an absolute multiturn encoder. It retains its exact position across up to 4,096 revolutions even when powered down — so there's no need to re-home an axis after a power cycle or emergency stop.

Q2: What fieldbus protocol does this encoder use?

The CEV65M-01460 communicates via PROFIBUS-DP, using an RS485 output driver. It supports baud rates up to 12 Mbaud and is compliant with PNO Profile Class 2, making it compatible with standard PROFIBUS-DP masters without special configuration.

Q3: Can the resolution be changed after installation?

Yes. Both the steps-per-revolution (up to 4,096) and the active revolution count (up to 4,096) are programmable via the PROFIBUS master. This allows the encoder to be reconfigured to match different mechanical setups or control system requirements in the field.

Q4: What is the IP rating, and is it suitable for outdoor or wash-down environments?

The CEV65M-01460 carries an IP65 protection rating — sealed against dust ingress and protected against water jets from any direction. It is suitable for industrial outdoor use and moderate wash-down environments, though it is not designed for full immersion.

Q5: What is the alternative part number for this encoder?

The factory alternative part number is 110-01460, which appears on some TR-Electronic documentation and older procurement records. Both numbers refer to the same product: the CEV65M-series absolute multiturn PROFIBUS-DP encoder with 4,096×4,096 programmable resolution.
