FANUC A20B-9000-0300 Spindle Motor Sensor Encoder

B-Type Optical Pickup | 12-Pin Feedback Device | Early Generation FANUC AC Spindle Motors | Spindle Speed & Orientation Feedback | Order Code: A290-1003-V320 | Made in Japan

The Sensor Behind the Spindle

Before a CNC machining center can orient its spindle for a tool change, before the control can execute a threading pass on a lathe, before rigid tapping becomes possible — the spindle motor's position and speed must be reported to the control in real time. That function belongs to the spindle motor sensor. On early generation FANUC AC spindle motors, the component responsible for that feedback is the A20B-9000-0300.

This is a B-type optical pickup sensor, designed and manufactured by FANUC in Japan specifically for the black and red cap AC spindle motor variants that equipped thousands of CNC machining centers, turning centers, and EDM machines from the 1980s through the early 1990s. Its official FANUC order designation is A290-1003-V320, though the A20B-9000-0300 reference number is the form under which it circulates throughout the CNC maintenance and spare parts market.

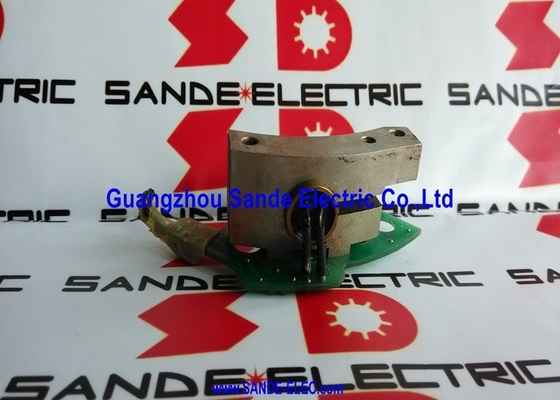

The sensor is sold as a complete assembly — optical pickup PCB with mounting hardware and, depending on the supplier, with or without the connecting cable. There is no subassembly to source separately.

What This Sensor Does Inside the Machine

The FANUC AC spindle drive system depends on continuous feedback from the spindle motor to maintain controlled speed, execute orientation stops, and in capable drive configurations, enable position-controlled spindle functions. The A20B-9000-0300 is the physical source of that feedback. Mounted in the rear of the spindle motor body, the sensor reads a target wheel on the motor shaft and generates the pulse train that the spindle drive and CNC control use to calculate actual spindle RPM and track angular position.

Three specific functions in the CNC depend directly on this sensor being present and operating correctly:

Spindle speed regulation — The spindle amplifier uses the sensor's output as actual-speed feedback to close the speed loop. Without a valid signal, the drive cannot maintain programmed spindle speed against varying cutting loads, and in most configurations will generate an alarm and inhibit spindle operation entirely.

Spindle orientation (M19) — The orientation command parks the spindle at a fixed angular position for automatic tool changes. The position loop for orientation is closed through the spindle sensor. If the sensor fails or loses signal integrity, the spindle will either fail to reach the orientation position or will continuously rotate without stopping — a behavior commonly reported on FANUC troubleshooting resources and a reliable indicator of sensor failure.

Spindle-synchronized functions — Threading cycles on lathes, rigid tapping on machining centers (where supported by the drive generation), and any cycle requiring the control to know spindle position in real time all depend on the sensor's pulse output being clean, consistent, and phase-accurate.

Motor Compatibility: Early FANUC AC Spindle Motor Families

The A20B-9000-0300 was designed for the early generation of FANUC AC spindle motors — the original black cap and red cap variants that preceded the Alpha series. Within the DNC Electronics classification used by FANUC specialists, these motors span the 07xx and 10xx series (the earliest black cap models) and continue through the S, P, and I series motors covering the 072x through 076x frame designations, where the B-type sensor interface was specified.

For the S and P series spindle motors — the workhorses of FANUC 0, 6, 10, 11, and 15-era machine tool installations — the A20B-9000-0300 is the correct B-type sensor. If the machine uses an Alpha or Alpha i series spindle motor, a different sensor family is required.

CNC System Context: What Controlled These Motors

The machines where A20B-9000-0300 sensors are most frequently found reflect the installed base of FANUC-controlled machine tools from that period. Documented examples include Kitamura MY Center-2B vertical machining centers with FANUC 11M controls, Hardinge CHNC CNC lathes, and AGIE AGIECUT EDM machines — a cross-section that illustrates how widely the early FANUC AC spindle motor platform was adopted across machine tool builders and machine types.

The FANUC CNC controls paired with these spindle motors — the 0 series, 3 series, 6 series, 10/11/15 series — are themselves still active in service on machines worldwide. The spindle sensor is one of the wear items on these machines. Unlike the motor windings or bearings, which typically wear gradually, sensor failure tends to be abrupt: a contamination event, a mechanical impact, or simply long-term thermal fatigue of the optical components and PCB. When the sensor fails, the machine stops.

The A20B-9000-0300 and Its Sibling: A20B-9000-0380

The A20B-9000-0380 appears alongside the A20B-9000-0300 in the listings of multiple FANUC parts specialists and is cross-listed as a compatible/related part. Both are B-type sensors for the early generation AC spindle motor range. When sourcing a replacement, confirming the exact motor variant and checking against both part numbers is advisable — the sensor that shipped from the factory with the motor is the definitive reference, and the motor's rear housing or nameplate may identify the original sensor designation directly.

Procurement and Condition Notes

New-stock A20B-9000-0300 sensors are extremely scarce. FANUC's official production of components for this generation of spindle motor has long been discontinued, and the remaining market supply comes from three sources: old factory surplus stock, pull-from-machine units removed during machine retrofits or decommissioning, and refurbished units processed by FANUC-specialist repair centers.

Reputable FANUC specialists test these sensors only when submitted with the complete spindle motor — standalone sensor testing without the motor's target wheel and mounting arrangement does not replicate in-machine operating conditions. When purchasing a replacement unit, a 90-to-180-day warranty from a specialist repairer who tests with the motor installed is the realistic standard in this segment of the market.

Frequently Asked Questions

Q1: How do I confirm that the A20B-9000-0300 is the correct sensor for my specific FANUC spindle motor?

The most reliable method is to check the spindle motor's rear housing or nameplate — the original sensor part number is typically printed or labeled on the motor body near the sensor mounting location. If the motor's documentation is unavailable, the motor series designation (visible on the motor nameplate as a model code in the 072x–076x range for S/P/I series motors) confirms B-type sensor compatibility. If the motor is in a machine with a FANUC 10, 11, or 15 series control and uses a black or red cap AC spindle motor, the A20B-9000-0300 is the primary candidate. The related A20B-9000-0380 should also be checked as it covers an overlapping range of early AC spindle motors.

Q2: What symptoms indicate that the A20B-9000-0300 sensor has failed?

The most common presentation is a spindle orientation failure — the spindle commanded to M19 either fails to stop at the target position or rotates continuously without reaching orientation stop. A second common symptom is a spindle alarm on the CNC at startup or during acceleration, where the drive reports no speed feedback signal or an inconsistent feedback signal. In some cases, spindle speed regulation becomes erratic before complete failure — the programmed RPM cannot be maintained against cutting load. Any of these conditions on an early-generation FANUC AC spindle drive warrants sensor inspection before condemning the amplifier or motor.

Q3: Can the sensor be tested on the bench without the spindle motor?

Meaningful bench testing of this optical sensor requires the motor's target wheel (the toothed or slotted disk that the sensor reads) and a proper mounting arrangement that replicates the sensor-to-target gap specified for the motor. Standalone testing with a bench power supply can confirm that the PCB electronics are operational, but will not detect gap sensitivity issues, contamination on the optical path, or intermittent faults that only manifest under the vibration and thermal conditions of an operating spindle. FANUC specialists who offer sensor testing properly perform it with the complete motor assembly for this reason.

Q4: Is the A20B-9000-0300 compatible with FANUC Alpha series spindle motors?

No. The Alpha and Alpha i series spindle motors use a different sensor family — MZ or CZ type sensors with different physical mounting, different connector configurations, and different signal interfaces. The A20B-9000-0300 is specifically for the earlier S, P, and I series FANUC AC spindle motors. Installing a B-type sensor in an Alpha motor, or attempting to adapt the wiring, is not a supported or viable substitution. If the machine uses an Alpha series spindle motor, the correct sensor is from the A20B-2002-xxxx or A20B-2200-xxxx family depending on the motor generation.

Q5: What is the relationship between the A20B-9000-0300 and the order code A290-1003-V320?

Both numbers refer to the same physical component. A290-1003-V320 is the FANUC factory order code — the number used when ordering directly through FANUC distribution channels. A20B-9000-0300 is the common reference number by which the part is known throughout the aftermarket and repair sector, typically because this number appears on the sensor's PCB silkscreen or label. When searching aftermarket suppliers, both numbers may yield results, and when verifying a received part against the original, either number appearing on the PCB confirms correct identity.
