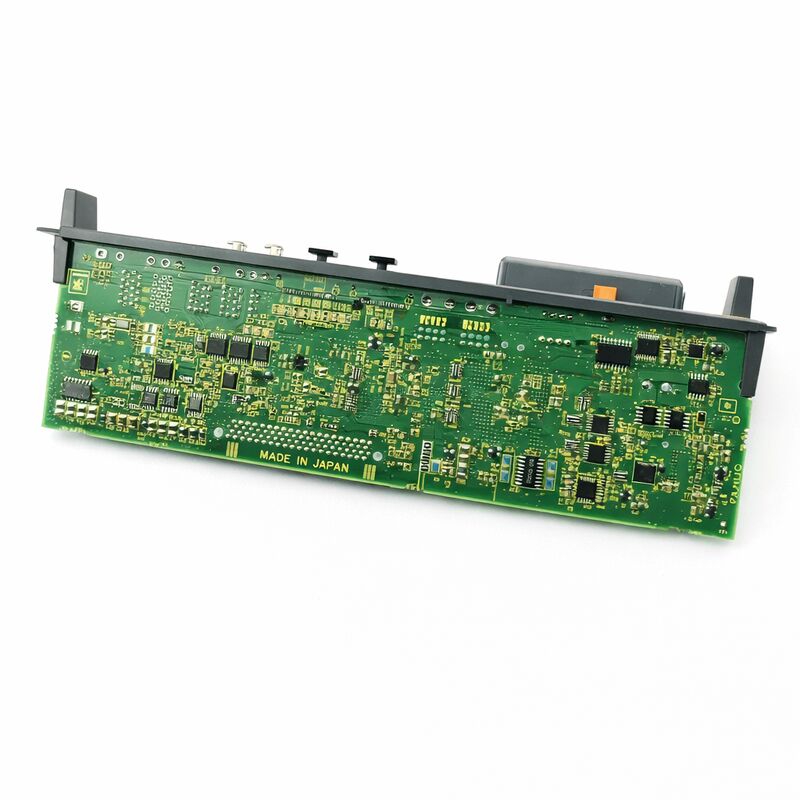

FANUC A20B-2101-0042 | PC Alpha iSV Dual-Channel 3-Axis Drive Control Board — A20B-2101 Series

Control Layer Inside the Alpha iSV Amplifier

The A20B-2101-0042 is the control PCB for FANUC's Alpha iSV servo amplifier system — a drive-side board that provides the processing and control intelligence for a dual-channel, 3-axis servo drive arrangement. In the Alpha iSV amplifier architecture, the control board handles the digital signal processing for servo axis control: receiving axis position commands from the CNC, executing current and velocity control algorithms, generating PWM gate signals to the amplifier's power stage, and managing encoder feedback processing and alarm detection.

The dual-channel designation means this single board supports two independent servo axis channels. The 3-axis capability reflects the board's processing capacity for drive configurations serving up to three servo axes in the installed drive system.

This board is a servo add-on module — it belongs to the amplifier and motion-control side of the hardware, not to the CNC main CPU or communication option layer. Its failure affects the servo drive function of the axes it controls. Symptoms are typically axis-specific: servo communication alarms, overcurrent alarms that cannot be cleared through motor or cable inspection, or axes that fail to initialise while other axes in the same CNC system remain functional.

Key Specifications

A20B-2101 Series — Board-Level Repair for Alpha iSV Drives

The A20B-2101 family covers drive control PCBs for FANUC's Alpha iSV servo amplifier range. Board-level replacement of a failed control PCB is the cost-effective maintenance approach when the amplifier's power stage is healthy — the power stage (IGBT modules, rectifier, bus capacitors) and the control PCB fail through different mechanisms and can be serviced independently.

Confirming which component has failed before ordering is the critical first step. Servo alarms that persist after inspecting motor cables, encoder cables, and encoder condition, combined with normal power stage diagnostics (bus voltage present, no visible component damage), point to the control PCB. Alarms consistent with IGBT failure (overcurrent with cables disconnected, bus voltage collapse) point to the power stage.

The A20B-2101-0042 is specific to the dual-channel 3-axis Alpha iSV configuration. Adjacent part numbers in the A20B-2101 series serve different axis counts and amplifier configurations — substituting a different suffix installs a board with different firmware and axis configuration that may not match the installed drive architecture.

FAQ

Q1: What does "dual-channel 3-axis" mean for this board?

The board supports two independent servo drive channels physically, with processing capacity for up to three servo axes in the drive configuration it serves. One channel may drive one or two axes depending on the amplifier module it is installed in. The dual-channel designation distinguishes this board from single-channel Alpha iSV control boards within the same A20B-2101 family.

Q2: How is a failed A20B-2101-0042 confirmed before ordering a replacement?

Start with alarm code analysis — servo communication and axis-specific faults that persist after cable inspection and encoder checks point toward the drive control board. Confirm bus voltage is present and stable (a healthy power stage). If available, move the suspect amplifier's control board to a known-good amplifier of the same type — if the alarm follows the board, the board is confirmed faulty. If the alarm follows the amplifier body, the power stage has failed.

Q3: Can an A20B-2101-0042 from a different machine be used as a replacement?

Yes, provided the source board is the same part number A20B-2101-0042 and was confirmed functional before removal. The board does not store machine-specific parameters — those reside in the CNC controller. After fitting a replacement control board, verify the CNC's axis parameter set (motor type, current limit, encoder type) matches the installed motor configuration and run a slow-speed test on the affected axes before returning to production.

Q4: Is the A20B-2101-0042 the same as other A20B-2101 series boards?

Adjacent part numbers in the A20B-2101 series serve different amplifier configurations — different axis counts, different channel arrangements, or different interface types. The suffix -0042 identifies this specific dual-channel 3-axis variant. Substituting a different suffix installs a board with different axis control logic that may not match the installed amplifier's configuration.

Q5: Where is the A20B-2101-0042 sourced?

Through the FANUC Alpha iSV drive component aftermarket — specialists in FANUC servo amplifier board-level repair and exchange. Confirm the exact part number A20B-2101-0042 (dual-channel, 3-axis) from the installed board's label. Board-level suppliers should confirm the unit was tested in a live Alpha iSV drive system with motor loads connected — not just powered on in isolation — before delivery.
