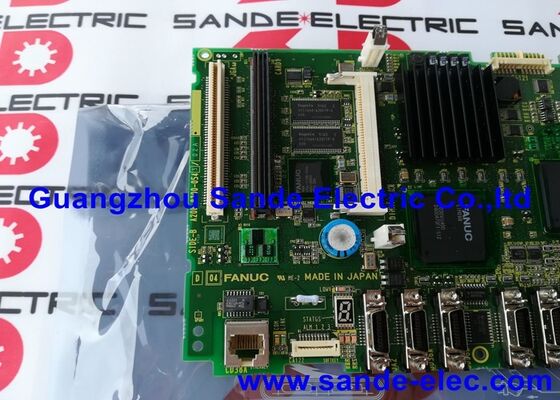

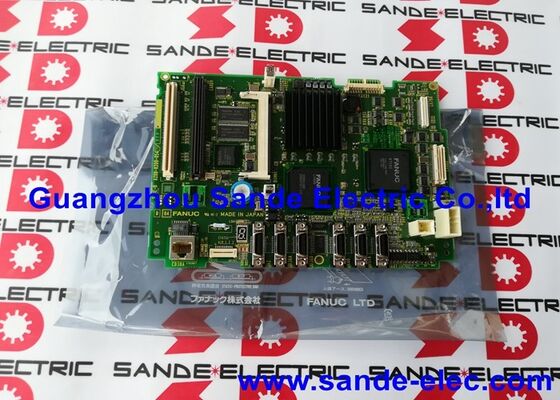

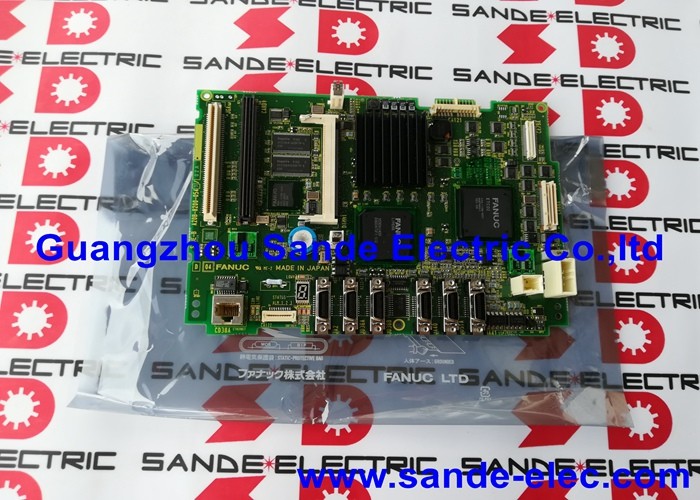

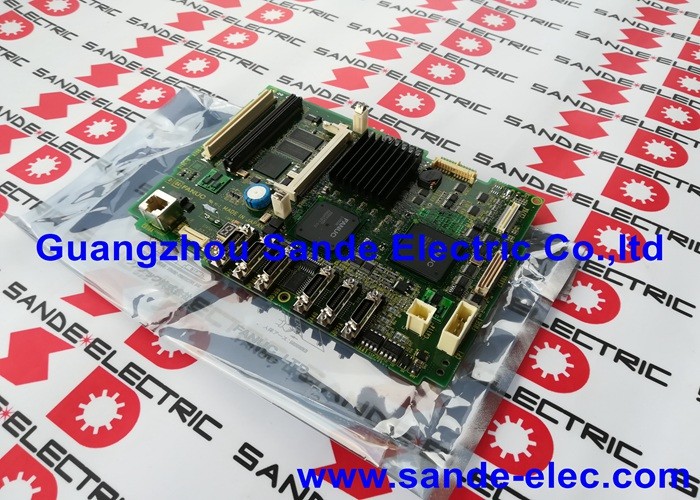

New and original FANUC A20B-8200-0543 Board A20B82000543 A2OB-82OO-O543

A20B-8200-0543 | FANUC 0i-D Main PCB A3 — 5VDC / 9W / 0.45kg / Ethernet / 0i-MD / 0i-TD / Yellow Backplane

0i-D — The Generation This Board Defines

The FANUC Series 0i-D is the fourth-generation 0i platform, positioned as FANUC's standard economy CNC for general-purpose machine tools. The "D" generation introduced several capability upgrades from the preceding 0i-C: enhanced servo response with the HRV3 current control option, an expanded PMC (from SA1 up to SB7 class), and built-in Ethernet PC function as a standard feature.

The A20B-8200-0543 is the A3 main board — the physical core of the 0i-D control unit. Every other component in the CNC plugs into or connects through this board: the axis card, FROM/SRAM memory module, graphics/video board, and communication option boards.

Key Specifications

Built-In Ethernet PC Function

The Ethernet port on the A20B-8200-0543 enables several operational modes for the 0i-D system:

DNC networking: Part programmes are streamed over Ethernet from a plant server directly to the CNC execution buffer. Long programmes that exceed the CNC's internal memory are executed in continuous streaming mode.

Data collection: Machine state, programme execution data, and production counts can be transmitted to factory management systems via the plant Ethernet network.

Remote file management: Programme libraries stored on a network server are accessible at the machine, simplifying multi-programme production environments.

These connectivity features are native to the A20B-8200-0543 board — no additional communication option cards are needed for standard Ethernet operation.

Application Scenarios

0i-D main board failure: A 0i-MD CNC machining centre fails to boot, showing no display response. After confirming the power supply, the A20B-8200-0543 is identified as the failed main board. Replacement and parameter restore return the machine to production.

Ethernet port failure: A 0i-TD turning centre loses its Ethernet DNC function. The Ethernet port on the A20B-8200-0543 is confirmed faulty. Board replacement restores network streaming capability.

FAQ

Q1: What 0i-D system designations are compatible with the A20B-8200-0543?

Confirmed compatible system: A02B-0319-Bxxx series (0i-MD). For 0i-TD and other 0i-D variants, confirm the specific system designation from the controller's hardware manual. The A3 board type designation must match the installed control unit configuration.

Q2: Will the Ethernet MAC address change after replacing the A20B-8200-0543?

Yes. The MAC address is associated with the board's Ethernet hardware and will differ on the replacement board. After fitting the replacement, update any DHCP reservations or fixed IP assignments in the plant network that were based on the original board's MAC address. Re-enter the Ethernet network parameters (IP address, subnet, gateway) if they were stored in CNC system parameters that did not survive the board change.

Q3: Is A20B-8200-0543 compatible with 0i-C or 0i-B generation systems?

No. The 0i-D (A20B-8200-0543) and 0i-C (A16B-3200-049x series) main boards are not interchangeable. Each 0i generation uses a distinct hardware architecture with different connector configurations. Always replace the main board with the correct generation and board type for the installed control unit.

Q4: What cooling is required for the A20B-8200-0543?

Forced air circulation is mandatory — natural convection cooling is insufficient. The CNC control unit's internal fans provide the required airflow. Before and after any maintenance, verify the cooling fans are operational. Running the A20B-8200-0543 without adequate airflow in an environment above 55°C will shorten its service life and increase the risk of premature failure.

Q5: How much technical knowledge does replacing the A20B-8200-0543 require?

More than a simple board swap. The replacement process involves: performing a complete SRAM and FROM backup before starting; disassembling the LCD/MDI unit to access the yellow housing; carefully transferring all option modules (axis card, FROM/SRAM, video board) to the replacement board; restoring all backed-up data; and configuring Ethernet settings. Technicians unfamiliar with 0i-D hardware should work alongside a qualified FANUC service engineer for the first replacement.
