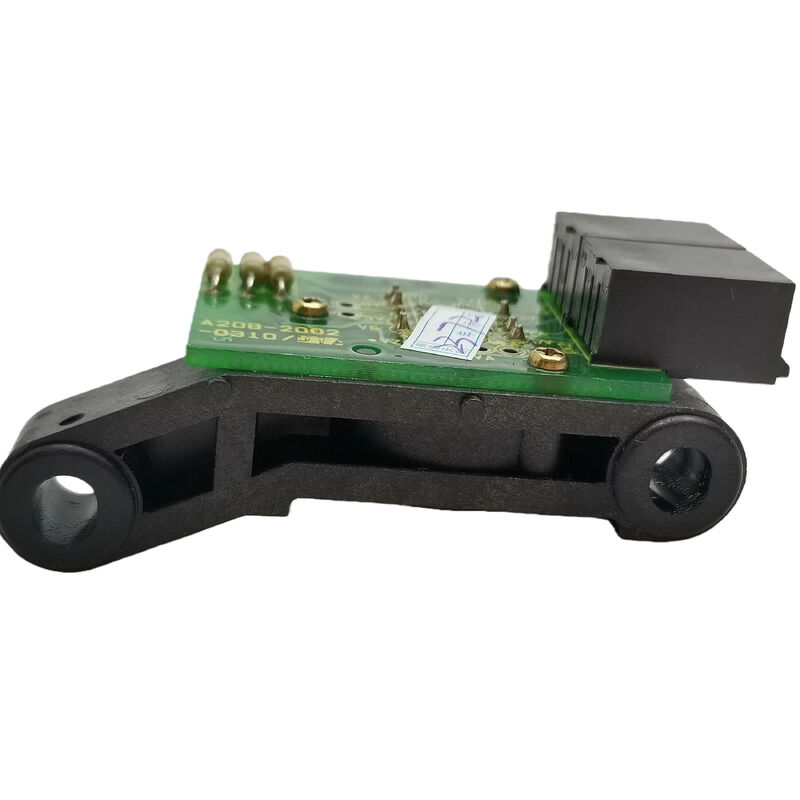

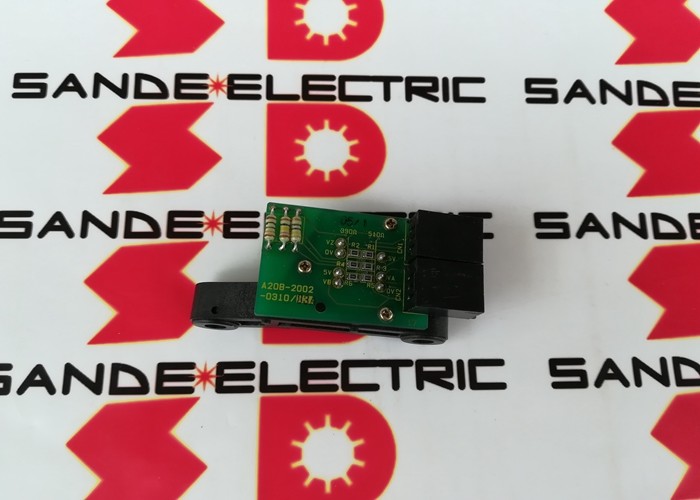

FANUC A20B-2002-0310 Spindle Motor Encoder
Part Number: A20B-2002-0310
Type: Spindle Servo Motor Encoder (Replacement)
Compatible Systems: FANUC Series 0 / 15 / 16 / 18 / 21 / 0i CNC Controllers
Overview
Spindle feedback restored. Machine back in cut. The FANUC A20B-2002-0310 is a spindle motor encoder replacement unit that provides critical feedback to the CNC controller about spindle speed, position, and orientation. When this unit fails, spindle functionality is compromised, disabling rigid tapping, spindle orientation, and potentially causing complete machine shutdown.
Replacing the encoder restores full spindle functionality without requiring motor removal, rewinding, or complete spindle drive replacement, making it an efficient solution for maintenance teams working under production pressure.
Key Specifications
| Parameter |
Value |
| Part Number |
A20B-2002-0310 |
| Manufacturer |
FANUC |
| Unit Type |
Spindle Motor Encoder (Replacement PCB/Unit) |
| Signal Type |
Serial feedback (FANUC proprietary) |
| Compatible Motor Types |
FANUC AC Spindle Motors (selected models) |
| Controller Compatibility |
FANUC Series 0 / 15 / 16 / 18 / 21 / 0i |
| Application |
Spindle speed, position & orientation feedback |
Machine Functions Enabled by This Encoder
The spindle encoder actively reports shaft position and rotational speed to the CNC controller, enabling several critical machining functions:
- Rigid Tapping: Synchronizes spindle rotation with Z-axis feed in real time
- Spindle Orientation: Positions spindle at precise angular locations for tool changes and boring operations
- Constant Surface Speed (CSS) Control: Adjusts spindle RPM based on cutting diameter changes
- Speed Regulation: Maintains stable spindle speed under varying cutting loads
Common Failure Symptoms
Encoder problems typically manifest as:
- Spindle alarm codes related to speed deviation or feedback signal loss
- Rigid tapping failures with inconsistent thread depth or tap breakage
- Spindle orientation errors during tool change operations
- Intermittent spindle faults that clear on reset but return under load
- Velocity instability with spindle speed drifting or surging during cutting
Encoder Replacement vs. Motor Replacement
Spindle motors are mechanically robust and often outlast multiple encoder service intervals. Replacing the encoder unit directly is significantly more cost-effective and faster than motor replacement or sending the motor out for service, minimizing production downtime and associated costs.
Typical Installation Environments
- CNC Turning Centers (CSS control, rigid tapping, live tooling synchronization)
- Vertical & Horizontal Machining Centers (automatic tool change operations)
- Boring Mills & Large-Format Machining (positional repeatability for accuracy)
- Grinding Machines (wheel speed regulation and dressing cycles)
- Production Lines with FANUC CNC (minimizing unplanned spindle downtime)
Frequently Asked Questions
What CNC controllers is the A20B-2002-0310 compatible with?
The A20B-2002-0310 is compatible with FANUC Series 0, 15, 16, 18, 21, and 0i CNC controllers paired with corresponding FANUC AC spindle drive and motor combinations. Verify compatibility against specific spindle motor model numbers before installation.
Can the encoder be replaced without removing the spindle motor from the machine?
In most installations, yes. The encoder unit is typically accessible at the rear of the spindle motor without requiring motor removal. Consult the machine builder's maintenance manual for specific disassembly procedures.
What alarms typically appear on the CNC when this encoder fails?
Common FANUC alarm codes include spindle speed deviation alarms, feedback signal errors, and position control alarms. Intermittent alarms that clear on reset but return under load are characteristic early symptoms.
Does the replacement encoder require any parameter changes in the CNC controller?
Typically no parameter changes are needed for like-for-like replacement. However, verify that spindle feedback signals are clean and that orientation and rigid tapping functions perform correctly before returning to production.
How is this encoder unit different from a spindle drive or spindle motor?
The encoder is the feedback device that measures and reports shaft speed and position. The spindle drive controls power output, while the spindle motor converts electrical power to mechanical rotation. The encoder closes the loop between them.
