Delta RS232 Servo Motor Cable Driver Cable ASD-A2-EN1005
  • Delta RS232 Servo Motor Cable Driver Cable ASD-A2-EN1005

Delta RS232 Servo Motor Cable Driver Cable ASD-A2-EN1005

Place of Origin JAPAN
Brand Name Delta
Certification CE RoHS
Model Number ASD-A2-EN1005
Product Details
Condition:
New Factory Seal (NFS)
Item No.:
ASDA2EN1005
Origin:
Taiwan
Certificate:
CE
Highlight:

DELTA Servo Motor Cable

,

RS232 Servo Motor Cable

,

Servo delta rs232 cable

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Original packing
Delivery Time
0-3 days
Payment Terms
T/T,PayPal,Western Union
Supply Ability
100 pcs/day
Product Description

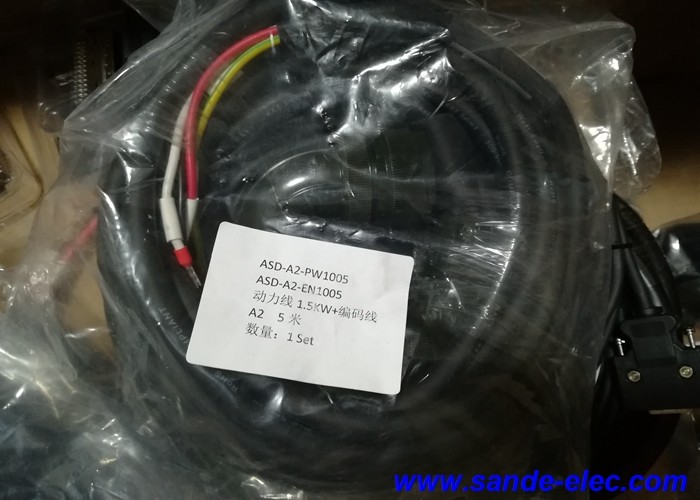

ASD-A2-EN1005 | Delta ASDA-A2 Encoder Feedback Cable — 5m / Pre-Assembled / ASDA-A2 to ECMA Servo Motor Encoder


Encoder Feedback Cable for Delta ASDA-A2 Servo Systems

The ASD-A2-EN1005 is a 5-metre pre-assembled encoder feedback cable from Delta Electronics' ASDA-A2 servo system accessory range. This cable carries the encoder position and speed data from the ECMA series servo motor's encoder assembly to the ASDA-A2 servo drive's CN2 encoder input — the feedback loop that enables the ASDA-A2 to perform closed-loop position and velocity control of the motor.


At 5m, the ASD-A2-EN1005 serves standard servo axis installations where the ASDA-A2 drive cabinet is positioned within 5 metres of the ECMA motor — the most common drive-to-motor distance range in industrial automation and machine tool installations.


Key Specifications

Parameter Value
Length 5m
Cable Type Encoder feedback (CN2 interface)
System Delta ASDA-A2
Compatible Motors Delta ECMA series
Type Pre-assembled

ASDA-A2 Encoder Interface — Precision Position Feedback

The ASDA-A2 servo system uses a high-resolution encoder integrated into the ECMA servo motor:

20-bit encoder resolution: Delta ECMA motors are equipped with a 20-bit encoder — providing 1,048,576 counts per revolution for exceptional position resolution. This high-resolution feedback enables the ASDA-A2 to achieve the precise positioning required in high-accuracy CNC and automation applications.


Absolute encoder support: Some ECMA motor variants include a 17-bit absolute encoder — retaining position data through power-off. The ASD-A2-EN1005 cable carries the absolute encoder's multi-turn position data to the ASDA-A2, enabling homing-free axis operation on power-up.

High-speed serial encoder data: The encoder communicates position data to the ASDA-A2 via a high-speed serial interface. The ASD-A2-EN1005 cable carries this serial data reliably over the 5m distance without signal degradation.


Applications

Delta ASDA-A2 CNC machine tool axes: ECMA servo motors on CNC machining centres, turning centres, and grinding machines using ASDA-A2 drives — one ASD-A2-EN1005 per servo axis at standard 5m cable run distances.

Industrial automation positioning: ASDA-A2-driven servo axes on automated assembly, material handling, and precision positioning equipment with ECMA motors.


High-speed packaging and labelling: Servo-controlled web handling, filling, and labelling equipment using ASDA-A2 and ECMA servo systems.

Precision motion control: E-CAM (electronic cam) and synchronized motion applications using the ASDA-A2's advanced control features — accurate encoder feedback through the ASD-A2-EN1005 is essential for flywheel shear, rotary cut, and registration control.


FAQ

Q1: Can ASD-A2-EN1005 be used with other Delta ASDA servo drive series?

The ASD-A2-EN1005 is designed for the ASDA-A2 series CN2 interface. Other Delta ASDA drive series (ASDA-B2, ASDA-A3) may use different CN2 connector formats or encoder interface protocols. Confirm from Delta's servo system documentation that the drive-end connector and encoder protocol match before using this cable with a non-A2 drive.


Q2: What symptoms indicate a faulty ASD-A2-EN1005 encoder cable?

A failed or degraded encoder cable produces encoder communication alarms on the ASDA-A2 (fault codes such as AL002, AL003, AL009, or encoder error codes depending on the specific fault type), erratic motor speed feedback, position counter errors, or complete loss of encoder signal causing the drive to fault on enable. Check cable connector seating at both ends before condemning the cable — loose connections cause the same symptoms.


Q3: Is ASD-A2-EN1005 compatible with ECMA motors using absolute encoders?

Delta ASDA-A2 drives support both incremental and absolute encoder ECMA motors through the same CN2 interface. The ASD-A2-EN1005 cable carries both encoder types' data through the same cable and connector — the encoder type is determined by the motor model, not the cable. Both absolute (17-bit) and incremental (20-bit) ECMA encoder interfaces use the same CN2 connector and the same ASD-A2-EN1005 cable.


Q4: What is the maximum encoder cable length for Delta ASDA-A2 systems?

Delta specifies maximum encoder cable length for the ASDA-A2 in the servo amplifier instruction manual. The high-speed serial encoder interface has maximum cable length constraints related to signal timing and cable capacitance. Standard installations use cables up to 20m or longer for some configurations. Confirm the maximum length from Delta's ASDA-A2 documentation for the specific encoder type in use.



Delta RS232 Servo Motor Cable Driver Cable ASD-A2-EN1005 0
