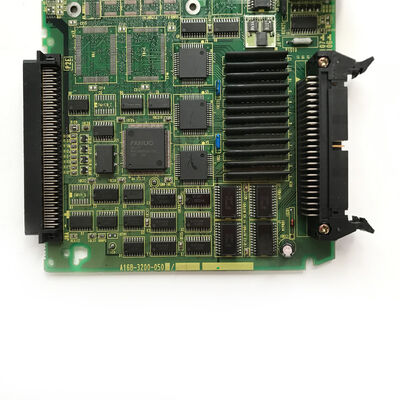

A16B-3200-0500 | FANUC Series 0i-B I/O Board Without Data Server — F0i-B Control / Machine I/O Interface / CNC PCB

The "Without Data Server" Designation — What It Means

FANUC's Series 0i-B I/O board exists in two configurations for different application requirements:

With Data Server: Includes an integrated local storage function — a compact flash or hard disk storage area within the CNC that allows large part programmes to be stored locally and streamed to the CNC execution buffer. Useful for complex, long programmes too large to fit in the CNC's standard programme memory.

Without Data Server (A16B-3200-0500): The I/O board without the local storage hardware. This is the correct variant for 0i-B systems where part programmes are loaded directly into the CNC's programme memory, or where DNC programme streaming is handled through the Ethernet or RS-232C interface rather than an on-board Data Server storage unit.

Fitting the wrong variant — with Data Server instead of without — adds hardware the system software does not expect, potentially causing configuration alarms.

Key Product Information

I/O Board Function in the 0i-B CNC

Within the 0i-B control unit, the I/O board handles the signal exchange between the CNC's internal PMC and the machine's electrical devices:

Inputs: Position switches, hydraulic pressure sensors, door interlocks, coolant level sensors, operator panel switches, and safety relay status signals. The PMC reads these inputs every scan cycle to monitor machine state.

Outputs: Coolant pump relay, spindle brake release, axis brake release, hydraulic valve control, tool changer motor command, indicator lamp control, and operator panel LED drivers. The PMC writes to these outputs to control machine sequences.

The A16B-3200-0500 provides the physical interface — the terminal connections, signal conditioning, and bus interface — that makes this signal exchange possible.

Application Scenarios

0i-B CNC I/O board fault: A FANUC 0i-B CNC machining centre develops random PMC I/O alarms — specific machine functions fail intermittently with no corresponding mechanical fault. Testing confirms the I/O board is failing to correctly pass signals between the machine field devices and the PMC. The A16B-3200-0500 replacement restores reliable I/O communication.

CNC control unit restoration: A Series 0i-B control unit removed from a machine is reconditioned for reuse. The A16B-3200-0500 I/O board is replaced alongside other aged components to provide a known-good control unit for the next installation.

FAQ

Q1: How do I confirm the 0i-B system requires the "without Data Server" variant?

Check the existing I/O board label for the part number A16B-3200-0500. If it reads this number, the system is confirmed to use the without-Data-Server variant. Alternatively, check the CNC system's hardware configuration documentation (connection manual) for the applicable 0i-B controller type — it will specify which I/O board variant is correct for that configuration.

Q2: Does A16B-3200-0500 replacement require PMC programme changes?

No. The PMC programme addresses machine I/O by I/O address — not by the specific board hardware. Replacing the A16B-3200-0500 with a correctly fitted replacement restores I/O communication without requiring any PMC programme modification. Verify all machine I/O functions after fitting to confirm the replacement board is operating correctly before resuming production.

Q3: What alarms indicate the A16B-3200-0500 has failed?

PMC alarm codes related to I/O link communication errors, random or persistent I/O address errors that don't correspond to field device faults, and intermittent machine sequence failures that trace back to specific I/O addresses all point toward an I/O board issue. Confirm that field wiring, sensors, and actuators are intact before concluding the board has failed.

Q4: Is the A16B-3200-0500 used on all 0i-B CNC models, or specific variants?

The A16B-3200-0500 is confirmed for the FANUC Series 0i-B (F0i-B) control. Within the 0i-B family, there are machining centre variants (0i-MB), turning centre variants (0i-TB), and other configurations. The I/O board may be common across these variants as it serves the same hardware slot in the 0i-B control unit regardless of machine type. Confirm from the specific controller's spare parts list before ordering.

Q5: What data must be backed up before replacing the A16B-3200-0500?

The I/O board does not carry CNC parameters or programmes. However, as a precaution before any CNC maintenance, perform a full SRAM backup — saving all CNC parameters, part programmes, tool data, and PMC ladder programme to external media. This ensures data recovery is possible if any unexpected event occurs during the maintenance.
