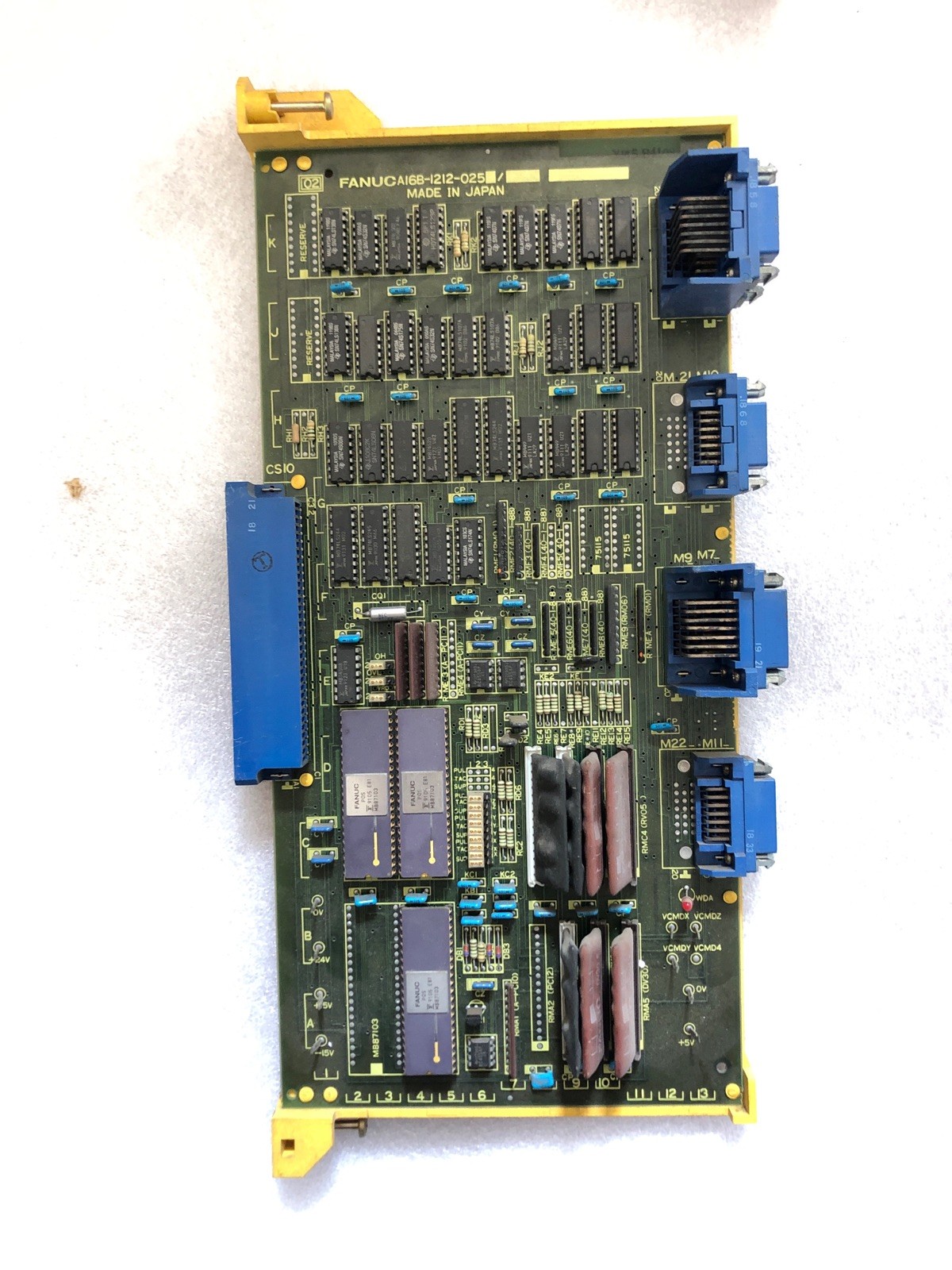

New Original Fanuc A16B-1212-0252 Triaxial card A16B-1212-O252

A16B-1212-0252 | FANUC A16B-1212 Series Printed Circuit Board — CNC Control System Replacement PCB

A16B-1212 — A Long-Running FANUC PCB Series

The A16B-1212 series encompasses a wide range of FANUC printed circuit boards serving the CNC product lines from the 1980s and 1990s. These boards cover multiple functional roles within FANUC CNC cabinets: power supply units, I/O interface boards, graphic control PCBs, memory modules, and option interface boards across Series 0, Series 15, Series 16, and Series 18 CNC systems.

Within this series, part numbers identify specific board functions:

Power supply boards (e.g., A16B-1212-0100, 0110, 0871, 0901) power the CNC control rack from AC mains.

I/O and interface boards (e.g., A16B-1212-0220) manage machine signal I/O and servo/spindle drive interfaces.

Graphic control boards (e.g., A16B-1212-0182, 0340) provide CRT and display processing for operator panels.

Memory and ROM modules (e.g., A16B-1212-0216) hold system software and programme storage.

The A16B-1212-0252 occupies a specific functional position within this series, serving its defined role in the FANUC CNC system for which it was designed.

Key Product Information

PCB Replacement in Legacy FANUC CNC Systems

Machines built on the FANUC platform from the late 1980s to mid-1990s continue operating in production facilities decades after installation. Reliability, a familiar operator interface, and the investment already made in tooling, fixtures, and programmes all support keeping these machines running.

When a board in these older CNC systems fails, the repair path is board replacement. The A16B-1212-0252 provides the replacement PCB for the specific slot and function it serves, restoring system operation without requiring changes to other boards, wiring, or CNC parameters.

Application Scenarios

CNC board failure: A FANUC CNC system develops a board-level fault. The part number on the failed board reads A16B-1212-0252. Fitting the replacement restores the system function served by this board.

Planned maintenance: A production facility schedules replacement of aged boards in a long-running FANUC CNC system. The A16B-1212-0252 is included in the board refresh to reset this board's service life.

FAQ

Q1: How do I identify whether A16B-1212-0252 is the correct replacement for my system?

Read the part number from the label on the installed board in your CNC system. If the label reads A16B-1212-0252, this is the correct replacement part. Additionally, the spare parts list in the FANUC maintenance manual for the specific CNC model maps each board by its slot position to its part number.

Q2: Does the A16B-1212 series contain boards for robot controllers as well as CNC systems?

Some A16B-1212 boards (notably the I/O and interface variants) appear in both CNC and robot controller applications within the FANUC product family. The specific deployment of A16B-1212-0252 depends on the system in which it is currently installed. Confirm the host system type from the maintenance manual before ordering.

Q3: Are there compatibility concerns with board revision suffixes for A16B-1212-0252?

FANUC boards can carry revision suffixes (e.g., /01A, /02B). These identify hardware updates within the same functional specification. Later revisions are typically backward compatible, but confirm from the system documentation if the exact revision is critical for the specific CNC application. Note the revision from the existing board label when ordering.

Q4: What data may be lost when replacing the A16B-1212-0252?

This depends on whether the A16B-1212-0252 is a passive hardware board or a board that carries stored data (RAM, parameters, firmware). Hardware-function boards (power supply, interface) do not hold CNC data. Memory or ROM boards carry programme content and parameters that require restore after replacement. Identify the board type from the system documentation before proceeding.

Q5: What ESD and safety procedures apply to A16B-1212-0252 replacement?

Use a grounded anti-static wrist strap and ESD-safe work surface. Power down the CNC system and confirm all internal voltages have discharged before accessing internal boards — power supply boards in particular retain capacitor charge after power-off. Follow the lockout/tagout procedure for the machine before opening the CNC cabinet.
