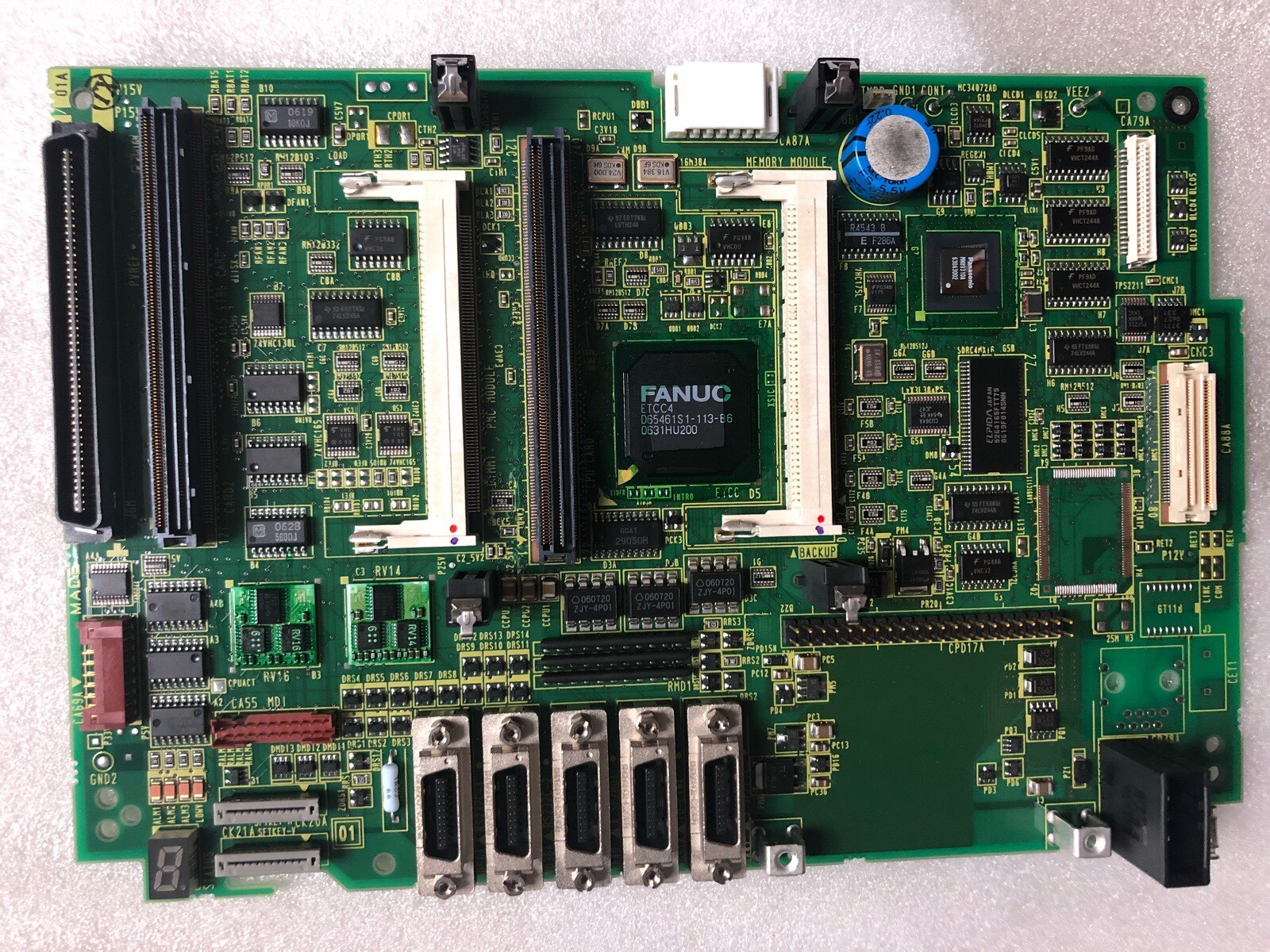

New Original FANUC Circuit Board A20B-8101-0402 A20B81010402

A20B-8101-0402 | FANUC Series 32i-A Main PCB A6 — 2 Paths / 12 Axes / Multi-Path CNC Master Board / High-End Platform

Series 32i-A — The Capability Level

Within FANUC's 30i/31i/32i product family, each series occupies a distinct position based on axis count and path capacity:

Series 30i-A: 10 paths, up to 40 axes (32 feed axes + 8 spindles) — for the most complex multi-spindle and multi-path machines.

Series 31i-A: 4 paths, up to 26 axes (20 feed axes + 6 spindles) — for advanced multi-path machines.

Series 32i-A: 2 paths, up to 12 axes (9 feed axes + 3 spindles) — for high-capability 2-path turning centres, compound machines, and advanced machining centres.

The 32i-A occupies the entry level of this high-end family. It brings the full capability suite of the 30i/31i/32i platform — nano interpolation, AI servo, HRV4 high-response control, and multi-path programme coordination — to applications that require 2 paths and up to 12 axes but do not need the larger configuration of the 30i or 31i.

The A20B-8101-0402 A6 main board is the master PCB that underlies all of this capability.

Key Specifications

What Makes the 32i-A a High-End Platform

The capability gap between the 0i series and the 32i-A series reflects decades of FANUC CNC development:

Nano interpolation: The 32i-A calculates servo commands at nano-metre resolution rather than micrometre resolution. At high feedrates, this finer command resolution produces smoother surfaces with less high-frequency velocity ripple.

AI servo (Adaptive Servo): The CNC continuously monitors servo axis response and adjusts gains in real time to compensate for friction, thermal expansion, and load variation throughout the cutting cycle. This maintains consistent servo stiffness across the full range of operating conditions.

Multi-path programme coordination: Two independent programme paths execute simultaneously, with inter-path synchronisation commands allowing coordinated movement between paths. A twin-spindle, twin-turret turning centre uses this to synchronise the two turrets in a single continuous machining sequence.

HRV4 current control: The fourth-generation High Response Vector current control runs the servo current loop at high update rates, providing the servo stiffness and disturbance rejection needed for high-speed, high-precision cutting.

The A20B-8101-0402 A6 main board is the hardware that hosts these capabilities — providing the processing architecture, bus connectivity, and module expansion infrastructure required to deliver them.

Application Scenarios

32i-A CNC failure on compound machine: A twin-spindle turning centre with a FANUC 32i-A control fails to initialise. Both programme paths are inactive and the display shows no content. After systematic fault isolation, the A20B-8101-0402 main board is identified as the failed component. Replacement with a correctly configured A6 board restores both control paths.

Planned main board replacement: A machine tool repair facility performing a comprehensive 32i-A control unit refurbishment replaces the A20B-8101-0402 as part of a board-level renewal, ensuring the refurbished CNC starts its next service period with a reliable main board.

FAQ

Q1: How does the 32i-A differ from the 31i-A in terms of hardware architecture?

The 31i-A supports 4 control paths and up to 26 axes; the 32i-A supports 2 paths and up to 12 axes. These are not software-limited configurations of the same hardware — they use different main board hardware from different A20B-8101 sub-series. The A20B-8101-0402 is specific to the 32i-A and is not interchangeable with 31i-A or 30i-A main boards.

Q2: What data must be backed up before replacing the A20B-8101-0402?

Back up all CNC parameters for both control paths, all part programmes from both path programme memories, tool offset and geometry data, work coordinate data, PMC ladder programme and data, and servo and spindle tuning parameters. The 32i-A's multi-path configuration means twice the parameter backup is needed compared to a single-path CNC. Perform the backup through the CNC's ALL IO function to an external device before starting the replacement.

Q3: Does the A20B-8101-0402 A6 board support all 32i-A option functions?

The A6 board type configuration supports specific combinations of option cards in the 32i-A control unit. Whether a specific option (HRV4, dual-check safety, high-speed remote buffer) is supported depends on the board type's slot complement and the option cards installed. Confirm the option requirements from the machine's hardware specification against the A6 board type's capabilities in the 32i-A hardware connection manual.

Q4: After fitting the A20B-8101-0402, what commissioning steps are needed?

After fitting and powering up: confirm both programme paths initialise correctly; verify FSSB servo communication is established for all axes across both paths; check spindle interface communication for all spindles; confirm all PMC I/O assignments respond correctly; and run both programme paths at low feedrate before full-speed production. For a machine with custom servo parameter tuning, compare post-replacement axis behaviour against the tuned parameters to detect any parameter restore issues.

Q5: Are there known failure modes specific to the A20B-8101-0402 main board?

Main boards in the A20B-8101 series can develop failures related to: ageing electrolytic capacitors on the power supply rails (causing intermittent reset or erratic behaviour at operating temperature); connection oxidation at plug-in module sockets (causing option card communication errors); and SRAM battery exhaustion leading to parameter loss on power cycles. Regular SRAM battery replacement and periodic parameter backup are the most effective preventive measures against the most common failure consequences.
