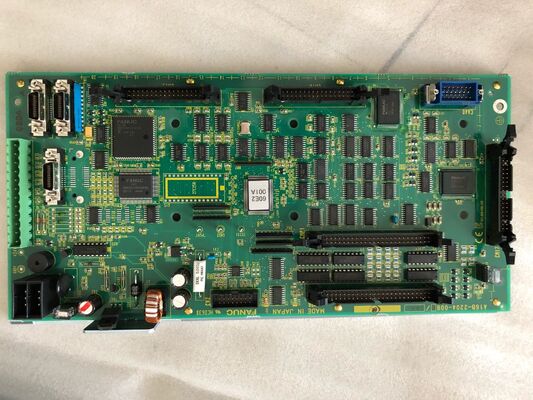

A16B-2204-0080 Fanuc PCB Board A16B-22O4-OO8O

A16B-2204-0080 | FANUC A16B-2204 Series PCB — Japan Manufactured / I/O and Process Interface / CNC and Automation Systems

A16B-2204 — I/O and Process Interface Board Series

The A16B-2204 series covers I/O and process interface boards for FANUC CNC and robot automation systems. This series has been confirmed throughout this session to serve multiple functional categories:

Process I/O boards (001x range): A16B-2204-0010 (confirmed as PROCESS I/O PCB) and A16B-2204-0011 — boards providing the interface between FANUC CNC or robot controllers and external process-level automation equipment.

I/O unit boards (02xx range): A16B-2204-0240 (confirmed for I/O unit A02B-0319-C001, 0i-D CNC systems) — the series' entry into standard machine I/O unit board applications.

The A16B-2204-0080 occupies the 008x position within this series — between the confirmed 001x process I/O boards and the 024x machine I/O unit board. This positioning places it within the same I/O and interface domain as its numbered neighbours.

Key Product Information

Japan Manufacturing in the A16B-2204 Context

All A16B-2204 series boards originate from FANUC's Japan manufacturing operations. The Japan origin for industrial I/O and interface PCBs ensures:

Component quality: Industrial-rated SMD components with thermal and humidity ratings matched to machine tool and robot controller environments — continuous duty, thermal cycling, and vibration conditions that consumer electronics grades cannot reliably withstand.

PCB fabrication: FANUC's PCB specifications — copper weight, laminate material, via quality, and surface finish — applied consistently across all A16B-2204 production.

Test and verification: Japan-origin manufacturing includes FANUC's incoming and outgoing quality checks, ensuring each board meets its functional specification before shipment.

For I/O boards like the A16B-2204-0080, which handle the critical signal exchange between the CNC controller and the machine or peripheral equipment, production quality directly affects system reliability.

Application Scenarios

I/O board fault in FANUC CNC or robot system: A FANUC CNC or automation system develops I/O communication faults. The A16B-2204-0080 is identified from its board label as the failed component. Replacement restores the I/O interface function.

Planned spare for automation cell: A production facility holding spare boards for its FANUC CNC and robot systems stocks the A16B-2204-0080 for the specific system in which it is deployed.

FAQ

Q1: How do I confirm A16B-2204-0080 is the correct board for my FANUC system?

Read the part number from the installed board label. If it reads A16B-2204-0080, this is the confirmed replacement. Cross-reference with the spare parts table in the applicable FANUC maintenance manual for the specific system model.

Q2: Is A16B-2204-0080 related to the A16B-2204-0010 (Process I/O PCB) described in this series?

Both are in the A16B-2204 series, which spans process I/O boards (001x range) and machine I/O unit boards (024x range). The 008x position of A16B-2204-0080 falls between these two confirmed groups — consistent with the same I/O and interface application domain. Confirm the specific functional relationship from the host system documentation.

Q3: Does replacing A16B-2204-0080 require PMC programme changes?

No. I/O boards communicate with the PMC via I/O Link address. A like-for-like replacement at the same I/O Link address restores communication without any PMC programme changes.

Q4: What ESD precautions apply to A16B-2204-0080?

Handle with a grounded anti-static wrist strap on an ESD-safe surface. Store and transport in anti-static packaging. Power down the host system completely before accessing any internal boards.
