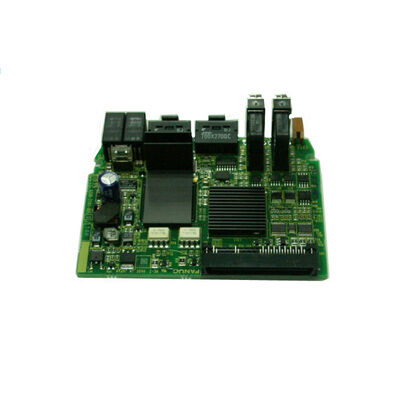

New in Original packing A20B-2101-0500 Fanuc PCB Board A2OB-21O1-O5OO

A20B-2101-0500 | FANUC A20B-2101 Series Drive PCB — CNC and Automation Drive Systems / Japan Manufactured

A20B-2101 Series — A Comprehensive Drive PCB Family

The A20B-2101 series spans one of FANUC's most functionally diverse PCB families — drive boards and power boards for servo amplifiers, spindle amplifiers, power supply modules, and robot servo drives across multiple generations and product families.

The series covers a wide numerical range, with each group of part numbers serving distinct drive hardware roles confirmed throughout this session:

Beta-i SVM1 control and power boards (005x–009x): Including A20B-2101-0050/0051 (Beta-i SVM1 control PCBs for 4i/20i/40i and 80i/40HVi) and A20B-2101-0090/0091 (power PCBs for 4A and 20A SVM1 variants).

Beta iSVSP integrated drive boards (001x–002x): Including A20B-2101-0012 (βiSVPM2 servo/spindle drive board) and A20B-2101-0022/0025 (dual-axis and triple-axis power PCBs for the A06B-6134 Beta SVSP series).

Spindle and servo control boards (035x): Including A20B-2101-0350 class boards for spindle amplifier control in drive and robot applications.

Power supply boards (039x): Including A20B-2101-0390/0391/0392/0393 family — confirmed as Alpha-i PSM high-power supply boards with 7-segment LED display and noise filter.

Power boards (063x–068x–084x): Including A20B-2101-0631 (power board), A20B-2101-0681 (power supply board), and A20B-2101-0840 (power connection board) confirmed in this session.

The A20B-2101-0500 occupies the 05xx range — between the confirmed power supply boards (039x) and the confirmed power boards (063x), a position in the series that covers boards serving specific drive interface or power distribution functions within the Alpha/Beta servo and spindle drive systems.

Key Product Information

Drive PCBs in the A20B-2101 Architecture

The A20B-2101 drive PCBs serve different layers within the drive module hardware stack, depending on the specific board function:

Control-layer boards: These boards process digital command signals, manage communication interfaces, and generate gate drive commands for power transistors. They operate at logic voltage levels.

Power-layer boards (wiring boards / power boards): These carry the high-current motor output paths, DC bus connections, and current sensing hardware. They operate at bus voltage levels.

Interface and distribution boards (power connection boards): These route power supply rails and signals between multiple boards within a drive assembly, providing the electrical backbone for multi-board drive configurations.

The A20B-2101-0500 serves one of these functional roles within the specific drive module it belongs to — with its exact function confirmed from the installed module's spare parts documentation.

Application Scenarios

Drive module PCB fault: A FANUC CNC or automation drive system develops a fault traced to the A20B-2101-0500 board. The board is identified from its part number label. Replacement restores the drive function.

Workshop spare inventory: A service facility maintains A20B-2101-0500 as a stocked spare for the drive systems it services.

FAQ

Q1: How do I confirm A20B-2101-0500 is the correct board for my drive module?

Read the part number from the board label inside the specific drive module. If it reads A20B-2101-0500, this is the correct replacement. Cross-reference against the drive module's spare parts list in the applicable FANUC maintenance manual to confirm the board's functional role.

Q2: Does A20B-2101-0500 serve servo amplifier or spindle amplifier applications?

The A20B-2101 series serves both servo and spindle drive applications. Confirmed boards in the same series cover Beta-i SVM1 servo drives (005x–009x), SVSP integrated drives (001x–002x), PSM power supplies (039x), and various power boards (063x–084x). The A20B-2101-0500 at the 05xx position serves the specific drive application confirmed from the host module documentation.

Q3: Does replacing A20B-2101-0500 affect servo or spindle parameters?

No. Drive parameters reside in the CNC's main parameter memory. Replacing A20B-2101-0500 does not affect any stored servo or spindle parameter values. After fitting the replacement and restoring power, the drive re-establishes its communication with the CNC and operates under the existing parameters.

Q4: What discharge safety applies before accessing A20B-2101-0500?

Drive modules contain DC bus capacitors retaining dangerous voltage after mains power removal. Follow the applicable FANUC maintenance manual's discharge wait procedure and verify discharge with a calibrated voltmeter before opening any drive module housing.
