| Place of Origin: | USA |
| Brand Name: | Banner Engineering |
| Model Number: | GM-FA-10J |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 175 |
Banner GM 1 Auxiliary Contacts Safety Relay 24V ac Dual, Single 2 Safety Contacts

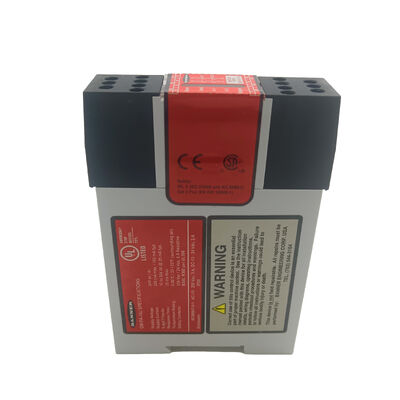

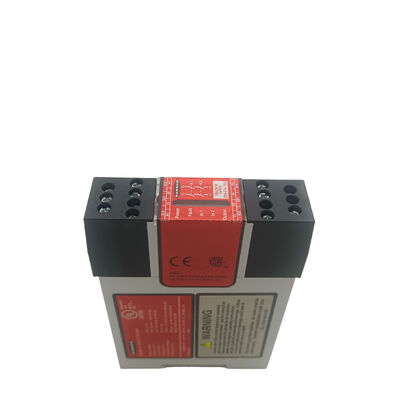

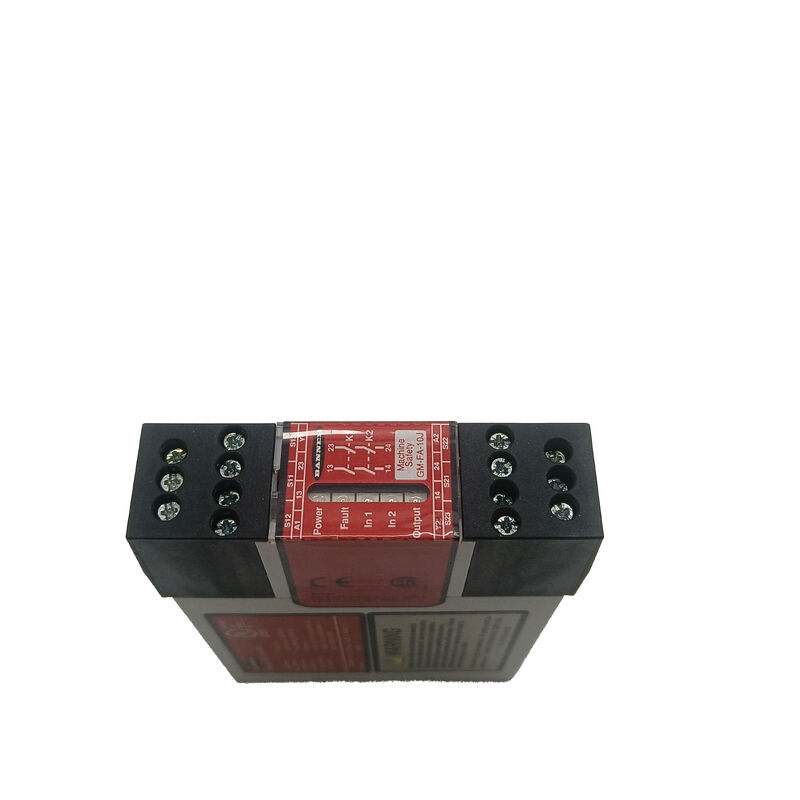

The GM-FA-10J Gate Monitor Safety Module (the “Safety Module”) is used to verify the proper operation of coded magnetic safety switches and positive-opening safety switches by monitoring a normally open (N.O.) and a normally closed (N.C.) contact from each switch. It can also be used to monitor and verify the correct state of two redundant current-sourcing PNP signals. (One PNP source must be Normally OFF and the other Normally Conducting for each input channel.) In a typical application, two safety switches (individually mounted) indicate the open or closed status of a gate, moveable guard, or barrier (all called “guards” throughout this document).
Features
• Monitors one or two safety switches for a contact failure or wiring fault • Two output switching channels for connection to control-reliable power interrupt circuits • Auto reset or monitored manual reset • Design complies with standards UL991, ISO 14119, and ISO 13849-1 (EN954-1) (Safety Category 2, 3 or 4) • For use in functional stop category 0 applications per NFPA 79 and IEC 60204-1 • 6 amp safety output contacts • Plug-in terminal blocks • If terminal blocks are swapped, Module remains functional with no loss of safety function
Echnical Parameters
Rated Power: 3 W
Number of Output Interfaces: 6
Number of Channels: 1, 2
Contact Rated Current: 6 A
Operating Temperature (Max): 50℃
Operating Temperature (Min): 0℃
Power Supply Voltage: 24VAC, 24VDC
Dimensions
Length: 22.5 mm
Physical Parameters
Operating Temperature: 0℃ ~ 50℃
Other
Product Lifecycle: Active
Technical Specifications
| Parameter | Value |
|---|---|
| Model | GM-FA-10J |
| Product Type | Gate Monitoring Safety Module |
| Supply Voltage | 24V AC / 24V DC |
| Safety Function | Guard door / gate interlock monitoring |
| Output Type | Dual safety relay outputs |
| Contact Configuration | 2NO safety contacts + auxiliary signal |
| Response Time | ≤ 30 ms |
| Reset Type | Manual / Auto reset (model dependent) |
| Mounting | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
| Certifications | CE, Safety compliant |
| Condition | New, Factory Sealed |
Machine safety door monitoring
CNC safety enclosure protection
Robotic cell safety interlock
Packaging line guarding systems
Automated equipment emergency stop circuits
