AB Kinetix 5700 Dual Axis VFD Inverter Ser.B 2198-D057-ERS3

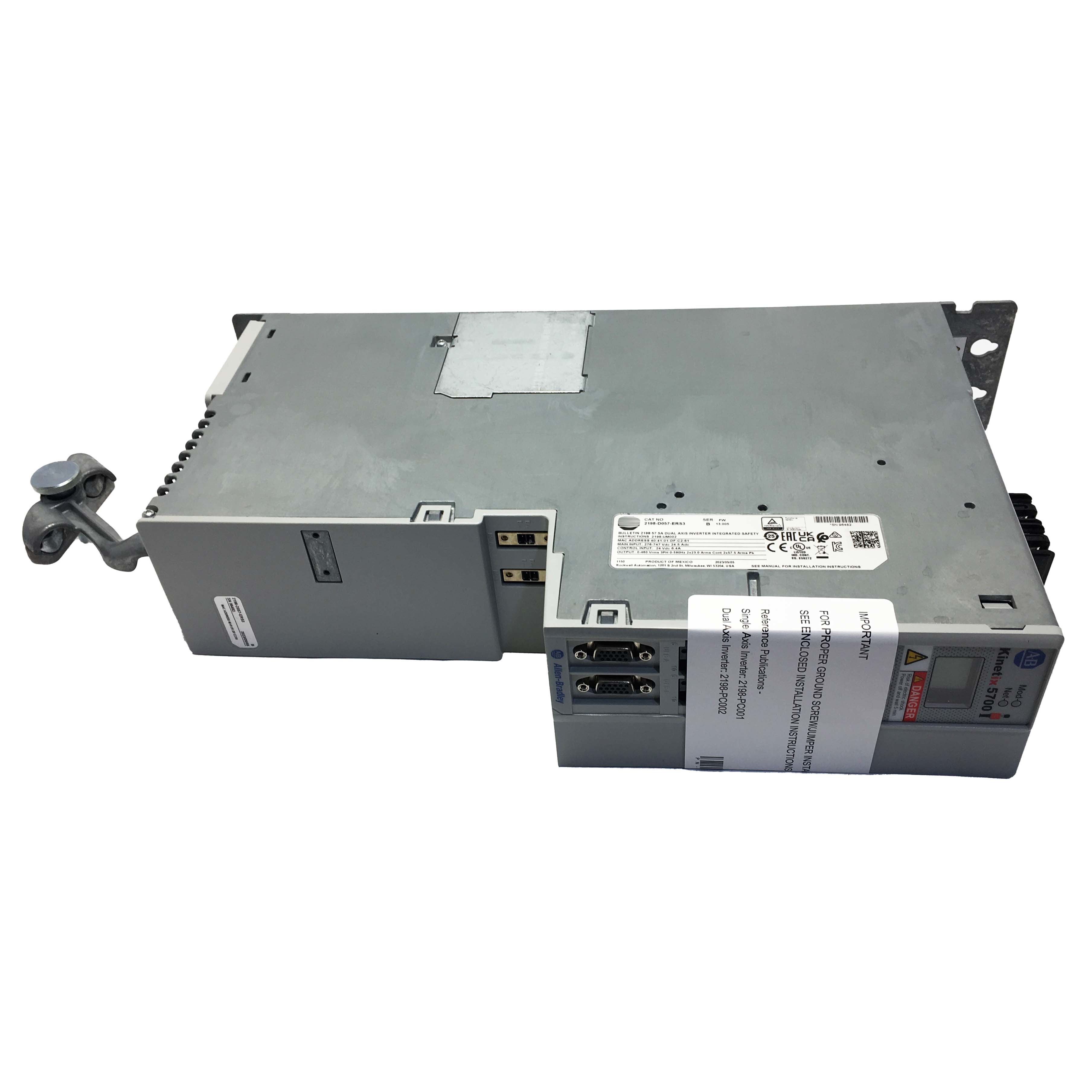

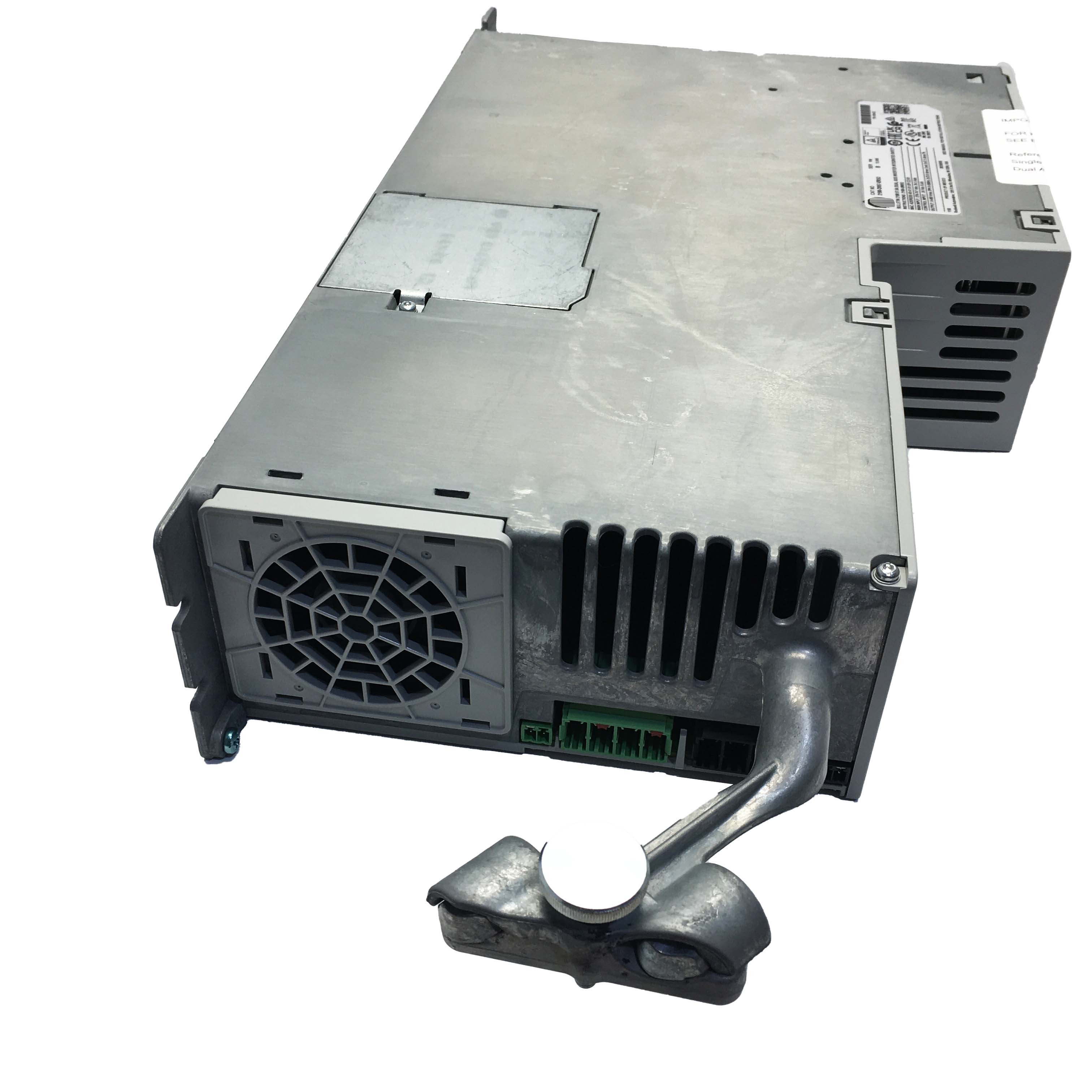

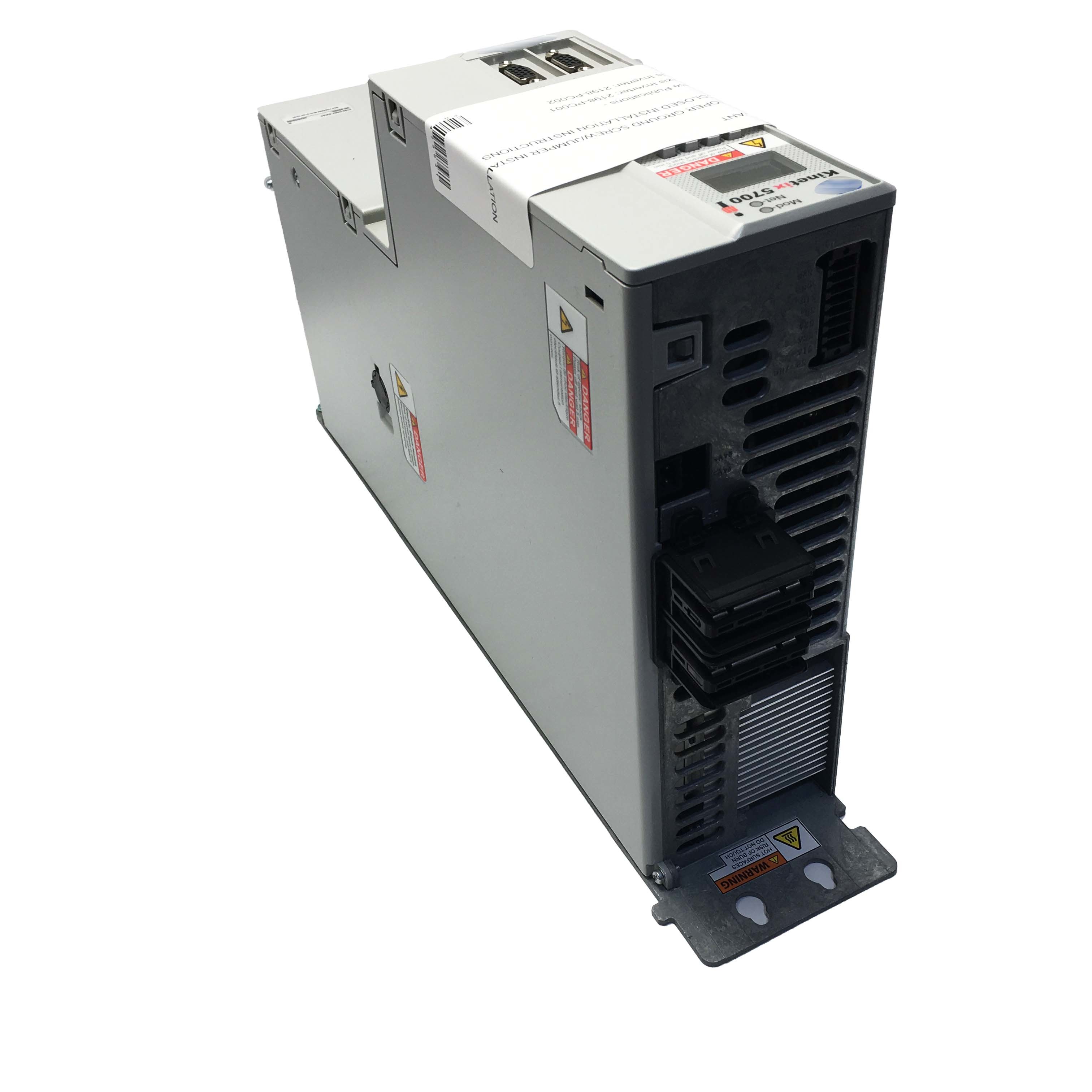

AB Kinetix 5700 Dual Axis Inverter 2198-D057-ERS3 Ser.B – Brand New In Box

The Allen-Bradley 2198-D057-ERS3 is a Kinetix Servo Drive that is part of the Kinetix 5700 Ethernet I/P servo system. This servo drive is used to interface with Kinetix Servo motors to implement motion and position control. It supports integrated motion control over Ethernet I/P via the embedded dual RJ45 Ethernet interface communication ports.The 2198-D057-ERS3 has a module width of 85 mm with physical measurements of 9.92 x 3.35 x 17.0 inches or 252 x 85 x 433 mm and weighs 14.9 lbs or 6.76 kg. It supports zero stacking installation and designed to reduce wiring and installation costs.

This servo drive is a dual axis servo drive and dual ethernet ports. With dual axis capability, it is capable of control more control directions while the dual ethernet capability allows this servo drive to communicate with automation devices connected in either linear or Device Level Ring (DLR) topology. This servo drive is designed to communicate with the Logix controller platform for direct integration of servo parameters for monitoring and control and further connection to Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems.

Technical Information

Ideal Applications:

• Multi-axis robotic arms

• CNC machining centers

• Automated assembly and packaging lines

• Precision material handling systems

• High-speed printing and labeling machinery

Key Features & Benefits:

• Dual Axis Capability: Controls two servo motors simultaneously, reducing cabinet footprint and wiring complexity.

• High Performance: Optimized for dynamic motion control, supporting high-speed acceleration and deceleration profiles.

• Advanced Safety Functions: Integrated Safe Torque Off (STO) and compliance with international safety standards.

• Flexible Communication: Supports EtherNet/IP for real-time, high-speed data exchange with controllers.

• Compact Design: Space-efficient for machine builders, simplifying installation in control cabinets.

• Energy Efficiency: Reduces power consumption with advanced regenerative capabilities.

• Scalable Control: Easily integrates with Kinetix 5700 family, expanding to multi-axis configurations.
