IPM Power Supply High Power IGBT Module Onsemi FSBB20CH120D

FSBB20CH120D Power Supply Module Onsemi IPM Module New Original

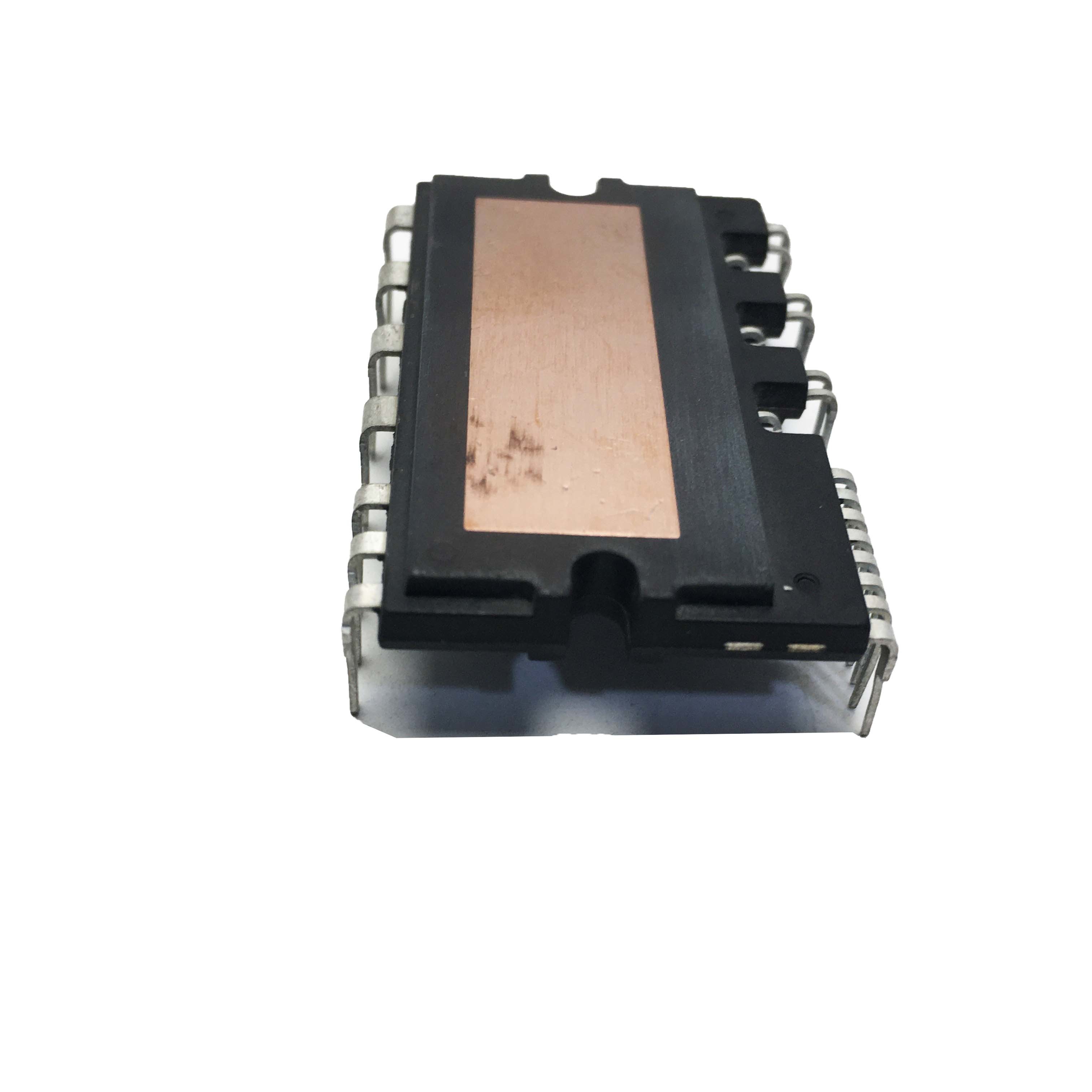

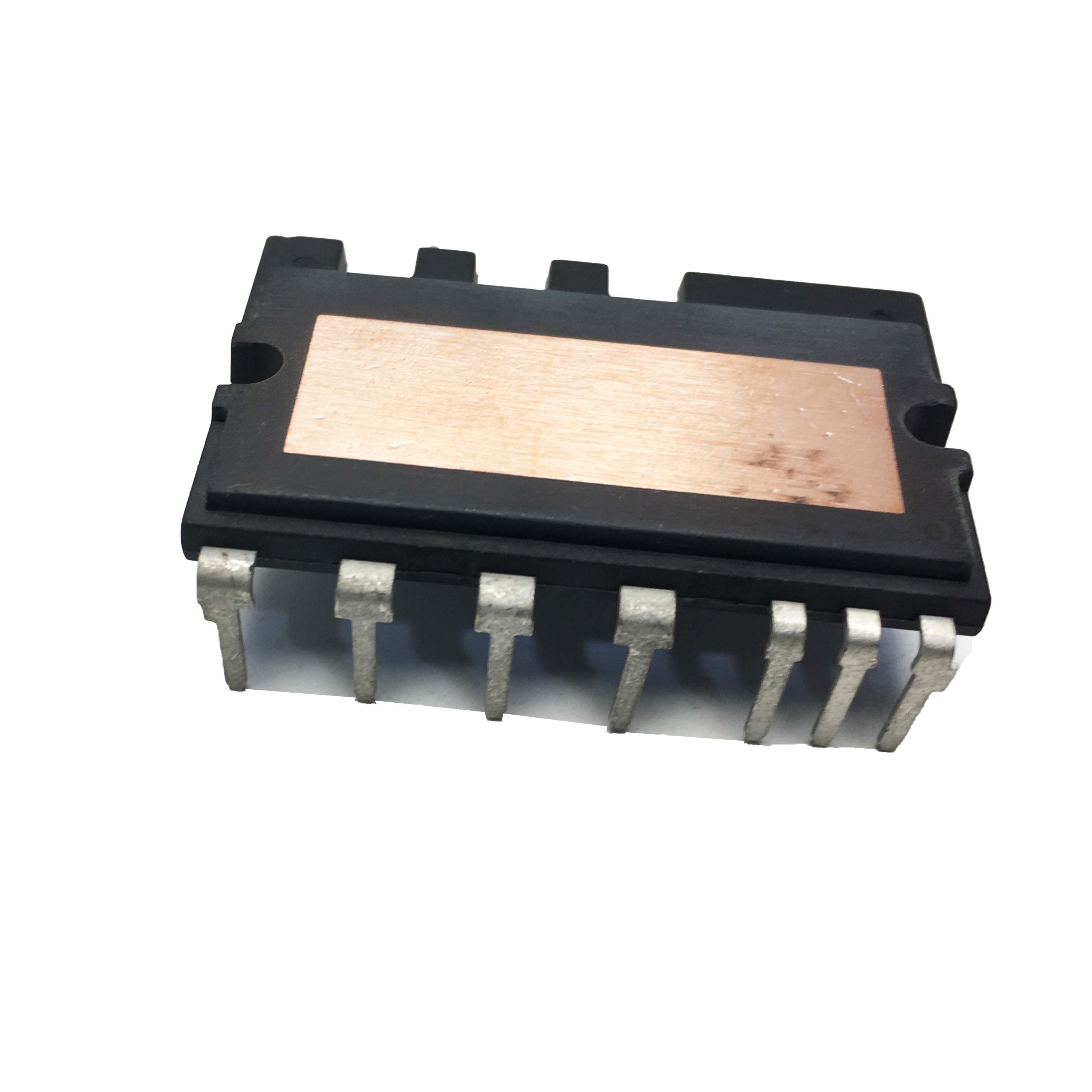

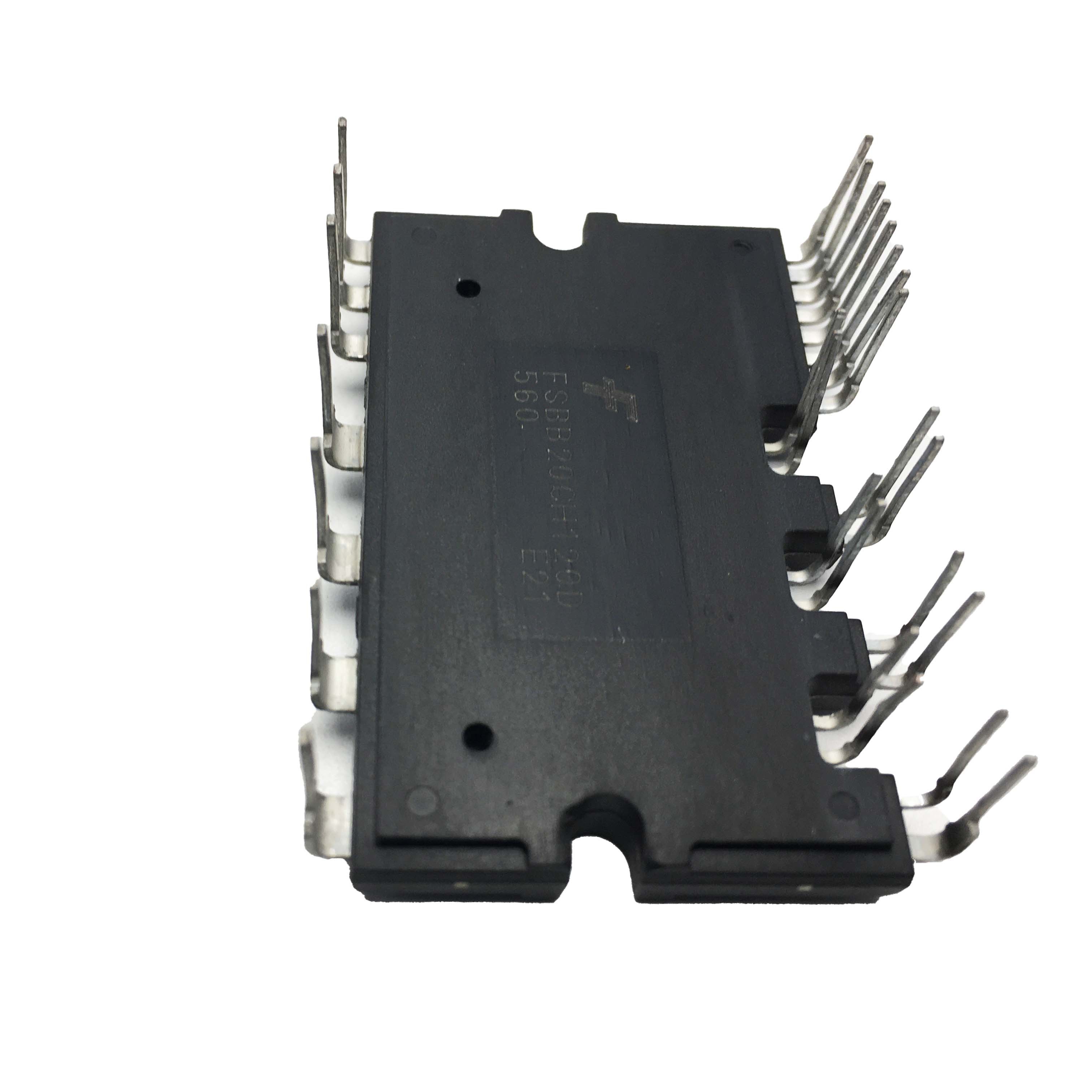

The FSBB20CH120D from onsemi is an intelligent power module (IPM) designed specifically for 3-phase motor drives. With a 1200 V voltage rating and 20 A current handling capacity, this module integrates IGBTs, gate drivers, and robust protection features into a compact 27-pin DIP package.

The FSBB20CH120D incorporates undervoltage lockout, short-circuit protection, thermal detection, and fault signaling, simplifying control logic while enhancing safety. Its optimized thermal design on an AlN DBC substrate ensures efficient heat dissipation, with a junction-to-case thermal resistance as low as 0.55°C/W, making it ideal for high-density applications. This module also supports standard 3.3–5V logic and uses an independent emitter pin for flexible detection and control.

If you are interested in purchasing the FSBB20CH120D, please feel free to contact us for pricing and availability information.

The On Semiconductor Intelligent Power Module is a state-of-the-art IGBT solution designed for high-performance applications requiring efficient power management and thermal stability. With a robust voltage rating of 1200V and a current capacity of 20A, this module is ideal for industrial and automotive applications. Its through-hole mounting design ensures easy integration into various systems, while its wide operating temperature range from -40°C to 150°C guarantees reliable performance in challenging environments. This module is also RoHS compliant, making it a responsible choice for environmentally conscious designs.

Typical Applications

• AC motor drives and inverters

• Variable frequency drives (VFD)

• Industrial power supply systems

• Automation equipment and machinery

• HVAC and pump control systems
