Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL
  • Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL
  • Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL
  • Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL
  • Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL

Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL

Place of Origin Japan
Brand Name SMC
Certification CE ROHS
Model Number CDRQ2BS40-90C-M9BWL
Product Details
Item No:
CDRQ2BS40-90C-M9BWL
Operating Fluid:
Compressed Air
Max. Operating Pressure:
1.0 MPa
Min. Operating Pressure:
0.1 – 0.15 MPa
Ambient / Fluid Temperature:
0°C To +60°C
Switch Mounting:
Up To 2 Switches On The Same Side
Warranty:
One Year
Condition:
New Original
Highlight:

Industrial Automation Sensors Actuator

,

SMC Industrial Automation Sensors

,

Industrial smc pneumatic rotary actuator

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
USD 100-200 / piece
Packaging Details
Original packaging
Delivery Time
2 days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
100 pcs per day
Product Description

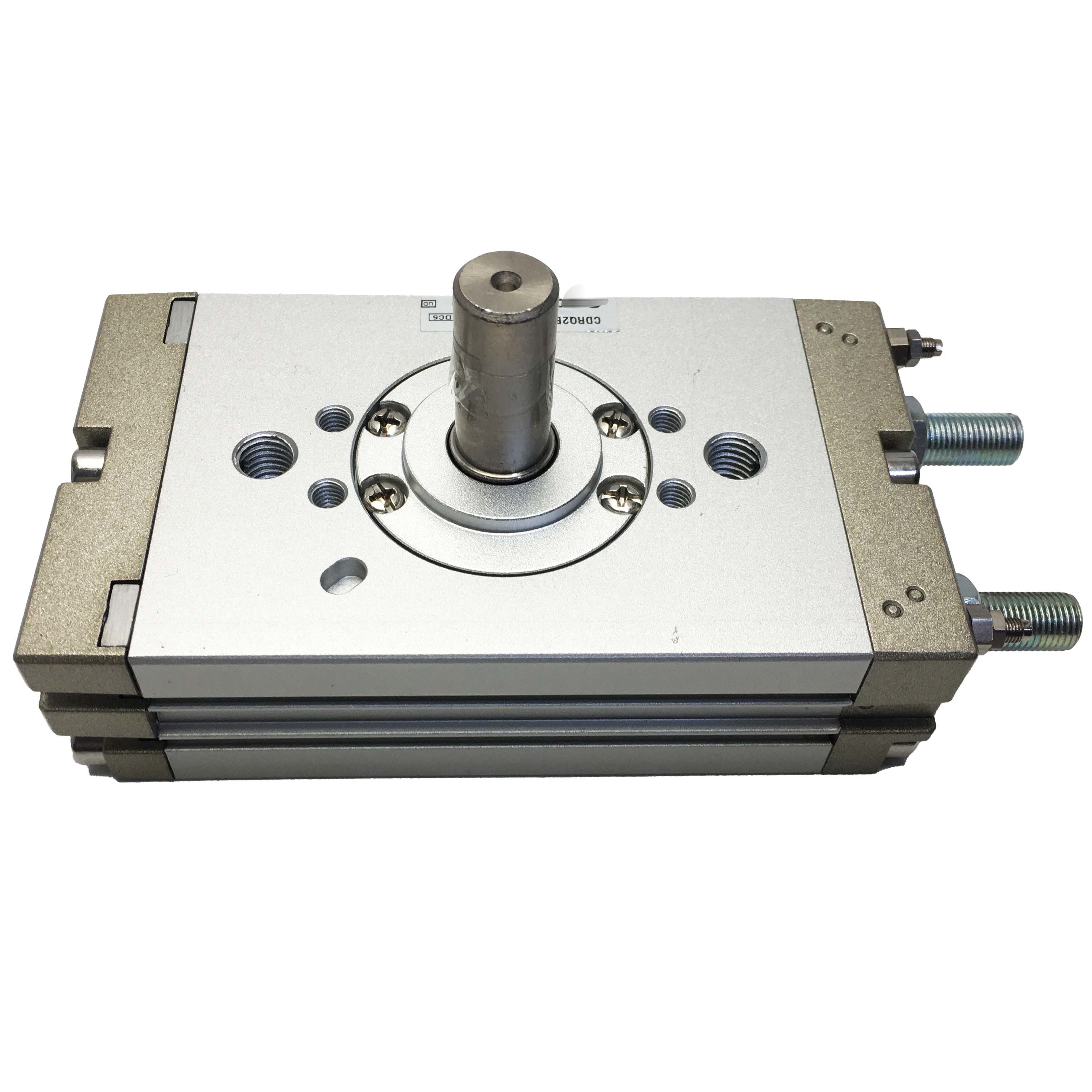

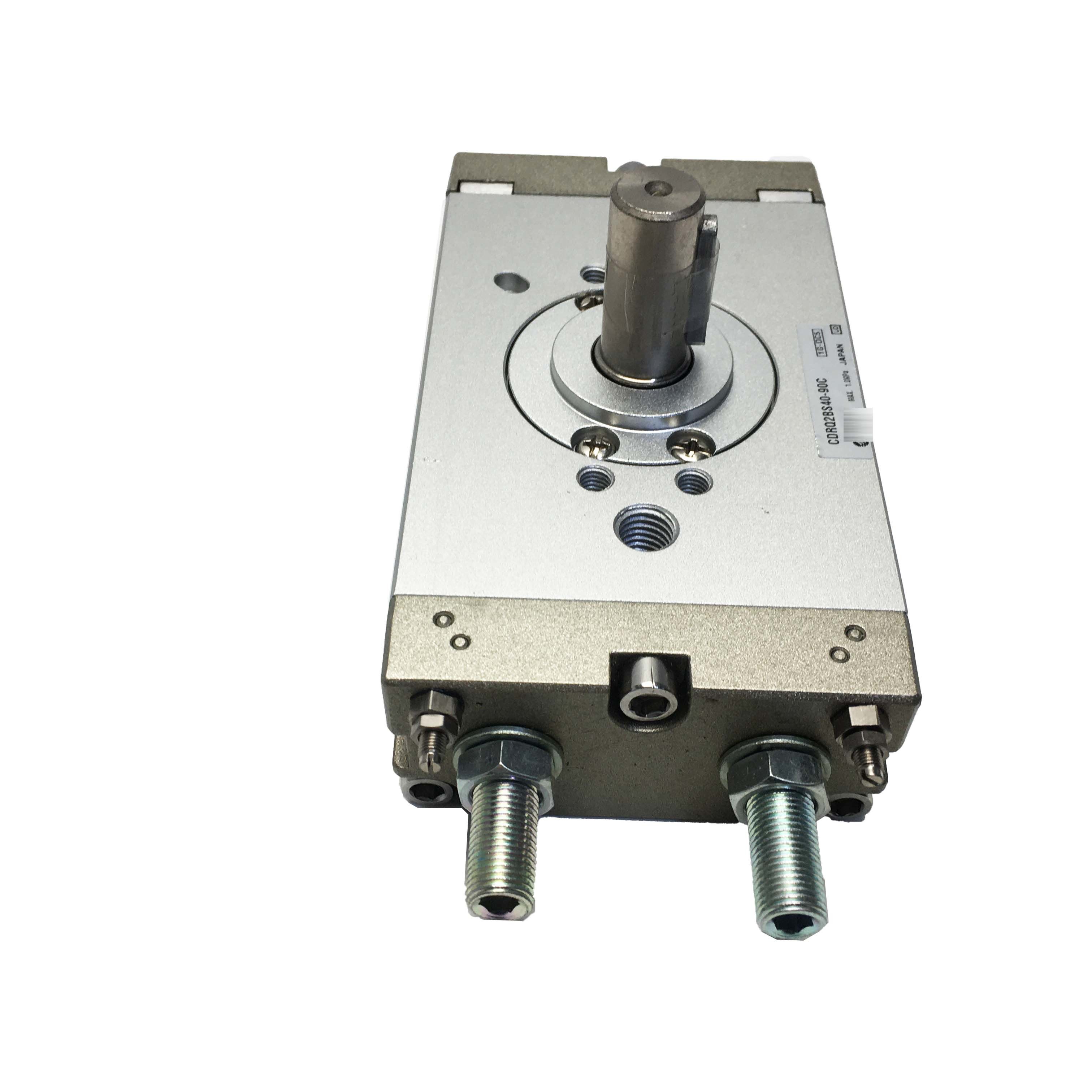

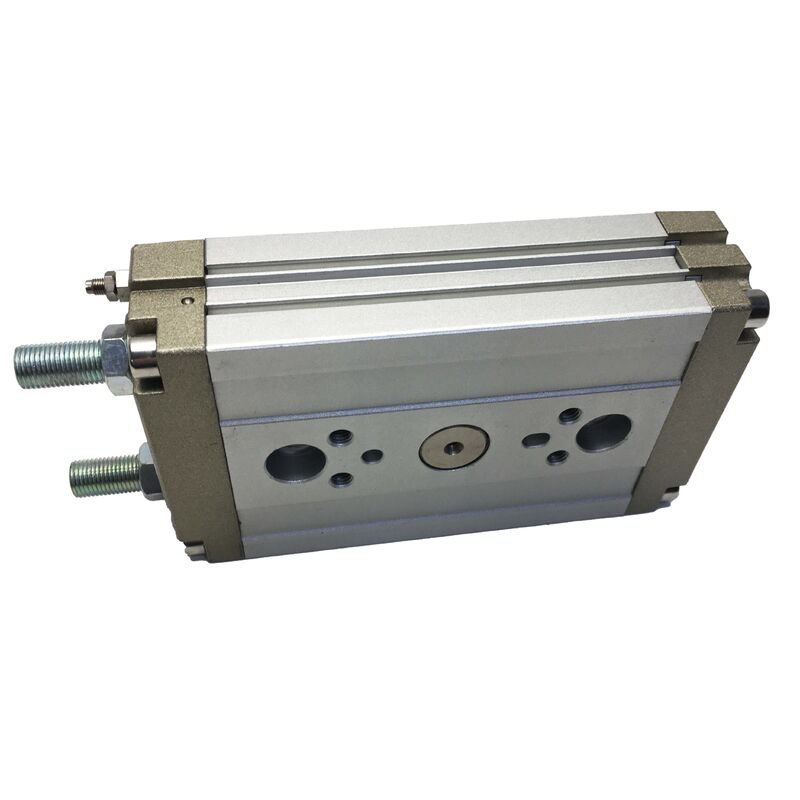

SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL
The SMC CDRQ2BS40-90C-M9BWL is a high-precision pneumatic rotary actuator engineered for industrial automation, robotics, and machinery motion control. Delivering smooth rotation, reliable torque output, and consistent positioning, it is ideal for applications requiring repetitive, controlled angular movement.
This unit is brand new, genuine SMC, and designed to integrate seamlessly with standard pneumatic control systems, providing long service life and stable operation under demanding industrial conditions.
Technical Specifications
Type Rotary Actuator -- One Side Shaft Output
Body Shape Block Shape
Oscillation Angle (A) 90°
Torque Range 3 to < 6
Rated Torque 5.3
Operation Method Single Rack
Environment / Applications Standard
Rigidity / Accuracy Standard
Tube Nominal Diameter --
Valves Provided
Allowable Kinetic Energy Range 0.1 to < 1
Allowable Kinetic Energy 0.4
Operating Pressure Range 0.1 - 1.0
Size 40
Switch Model M9BW
Lead Wire 3-wire
Number of Switches 2 pcs.
Port Type M5
Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL 0
The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes (10~40mm). The CRQ2 uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are available.
  • Low profile
  • Both single shaft and double shaft are available in all sizes
  • 2 auto switches are mountable on the same side
  • Rotating angle adjusting range: 350 to 370
  • Options include magnet, shaft type, port thread style, and air cushion
Core Functional Advantages
  • Precise Rotary Motion - Smooth 90° rotation ensures accurate positioning for assembly, packaging, and robotic applications.
  • High Reliability & Durability - Engineered for repeated cycles with minimal wear, suitable for continuous industrial operation.
  • Flexible Installation Options - Standard mounting dimensions and porting make it compatible with a wide range of automation equipment.
  • Efficient Pneumatic Operation - Optimized for low air consumption while maintaining strong torque output.
  • OEM & Replacement Ready - Direct replacement for SMC actuators of the same series, ensuring minimal downtime.
Genuine Industrial Automation Sensors SMC Pneumatic Rotary Actuator CDRQ2BS40-90C-M9BWL 1
