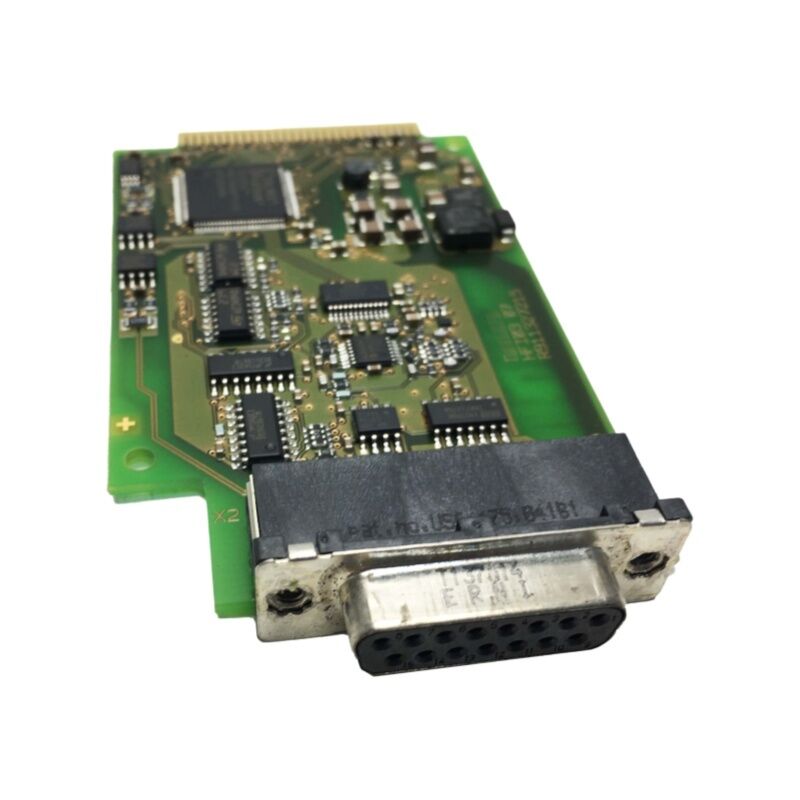

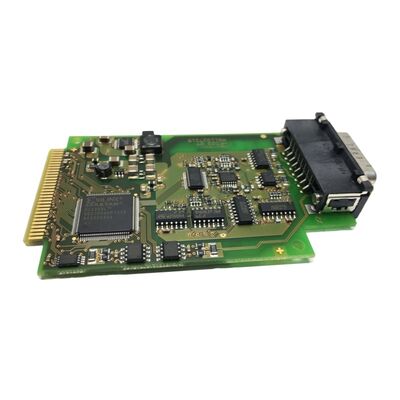

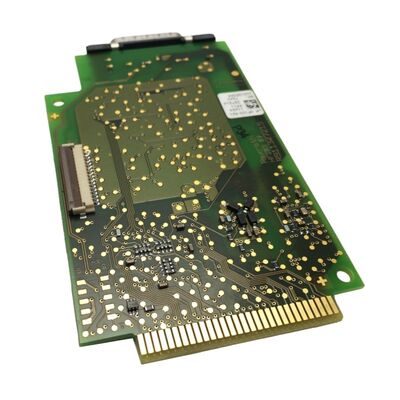

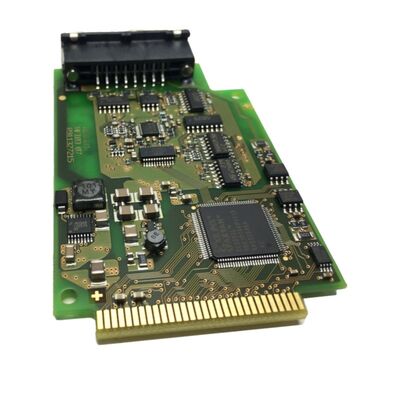

Rexroth HFI003 R911327215 Servo Encoder Circuit Board
Rexroth Servo Shaft Card Encoder Circuit Board HFI003 07R911327215
The Small Board That Carries a Big Responsibility
In a Rexroth servo motor system, the encoder circuit board serves as the intelligence of the motor. This board doesn't just relay position pulses; it stores the motor's identity. The Rexroth HFI003 (Material Number R911327215) is the encoder interface PCB mounted at the shaft end of the motor, bridging the feedback sensor and the IndraDrive servo drive. When this board fails, the drive cannot identify the motor, cannot read valid position data, and will not operate.
Unlike simple rotary encoders, Rexroth's encoder board architecture stores critical motor parameters directly on the PCB—including model designation, winding data, rated current, and encoder-specific calibration values. The IndraDrive reads all of this automatically at power-up via serial communication. This is why swapping in a generic encoder won't work, and why the specific board part number matters: the firmware on the drive expects a recognized device, and only the correct Rexroth encoder board delivers the proper data handshake.
Component Specifications
| Parameter |
Detail |
| Part Number |
HFI003 |
| Material Number |
R911327215 / 07R911327215 |
| Manufacturer |
Rexroth (Indramat) |
| Component Type |
Servo shaft encoder circuit board / encoder interface PCB |
| Function |
Position & speed feedback, motor parameter storage |
| Compatible System |
Rexroth IndraDrive series servo drives |
| Mounting Location |
Rear shaft end of servo motor |
| Communication |
Serial encoder interface to IndraDrive controller |
| Data Stored |
Motor ID, encoder type, calibration values, winding parameters |
Common Failure Causes and Symptoms
Encoder PCBs on Rexroth servo motors operate in demanding environments. Mounted directly to the motor shaft housing, they are exposed to heat from the motor body, vibration from the drivetrain, and potential contamination from coolant mist or grinding dust. Over time, capacitors degrade, solder joints crack from thermal cycling, and optical sensing components lose signal integrity.
Common symptoms when the HFI003 begins to fail:
- F8022 / F2001 encoder fault alarms on the IndraDrive display
- Drive detects incorrect or unrecognized motor type at startup
- Erratic position feedback causing hunting or drift at low speed
- Drive initializes correctly but trips on encoder errors under load
- Complete loss of motor communication—drive shows no motor detected
Any of these conditions points to the encoder board as the primary component to evaluate. The encoder cable, connector, and cable routing should also be checked before concluding board failure, but board failure is the most common root cause once cabling has been ruled out.
Motor Parameter Storage Considerations
One critical aspect of Rexroth's encoder design that often challenges maintenance teams is the motor data memory embedded in the encoder board. When replacing this board with a new or refurbished unit, the replacement must contain the correct parameter data for your specific motor. A physically identical board from a different motor will cause the drive to read the wrong motor type—resulting in incorrect current limits, wrong commutation data, and faults that may appear as drive problems rather than encoder issues.
Reputable suppliers of the HFI003 board either supply units pre-programmed for your motor type or confirm that the unit has been verified on a compatible IndraDrive test rig. Before purchasing, confirm that the encoder data has been validated against your motor's nameplate specifications.
Applications and Compatible Drive Systems
The HFI003 encoder board is used across multiple Rexroth servo motor families operated on IndraDrive controllers, including the HCS01, HCS02, and HCS03 drive families. These drive systems are widely deployed in:
- CNC machine tool feed and spindle axes—turning centers, machining centers, grinding machines
- Printing and paper processing machinery—web tension and register control applications
- Packaging and filling lines—synchronized multi-axis positioning for high-throughput production
- Plastic injection molding machines—clamp and injection axis drives
- Assembly automation—robotic cells and gantry systems running IndraDrive platforms
Sourcing and Quality Verification
The HFI003 is not typically available through standard industrial distribution channels in most markets—it is sourced through the Rexroth service network, qualified servo motor repair facilities, or the surplus industrial parts market. When purchasing from the surplus market, the board should be tested on a live IndraDrive system, not just inspected visually. A board that powers on without fault under no-load conditions may still fail under the thermal and electrical stress of real motor operation.
Key questions to ask any supplier:
- Has the board been test-run on a matched IndraDrive controller?
- Does the encoder data on the board match a known motor type?
- What warranty is provided and under what conditions?
Frequently Asked Questions
Q1: Can the HFI003 R911327215 be used with any Rexroth servo motor, or is it model-specific?
A: The physical board may fit multiple motor variants, but the encoder data programmed onto the PCB is motor-specific. The IndraDrive reads motor identity, encoder type, and parameter values directly from this board at startup. Using a board with incorrect data will result in wrong motor identification and likely drive faults. Always confirm the board's programmed data matches your motor's nameplate before installation.
Q2: What fault codes on the IndraDrive typically indicate an encoder board failure?
A: The most common alarm codes pointing to encoder board issues include F8022 (encoder signals incorrect), F2001 (communication error), and startup errors where the drive reports an unrecognized or incorrect motor type. Before assuming board failure, always inspect the encoder cable and connector—contamination or physical damage at the cable end accounts for a significant share of encoder-related faults.
Q3: Is it possible to repair the HFI003 board rather than replacing it?
A: Component-level repair is possible for experienced electronics technicians with the right test equipment. Common failure points include optical sensing components, capacitors, and hairline solder cracks on the PCB. However, even a successfully repaired board must be re-verified on a Rexroth IndraDrive system to confirm serial communication and motor data functions correctly. Repair without functional testing on matching hardware is not adequate for a safety-critical servo axis.
Q4: Does replacing the HFI003 board require software or parameter changes on the IndraDrive?
A: If the replacement board carries the correct and matching motor parameter data, the IndraDrive should recognize the motor automatically at power-up without requiring manual parameter input. If the drive shows a motor type change warning (C-code), this usually means the new board's data differs from what was previously stored in the drive—this needs to be resolved before the drive will operate normally.
Q5: Where is the HFI003 physically located on the servo motor?
A: The encoder circuit board is mounted at the non-drive end (NDE) of the motor—the rear of the motor opposite the output shaft. It sits inside the encoder housing cover, directly attached to or integrated with the feedback sensor assembly. Accessing it requires removing the encoder cover at the rear of the motor, secured by a small number of fasteners. Handle carefully to avoid disturbing encoder alignment relative to the motor shaft.
