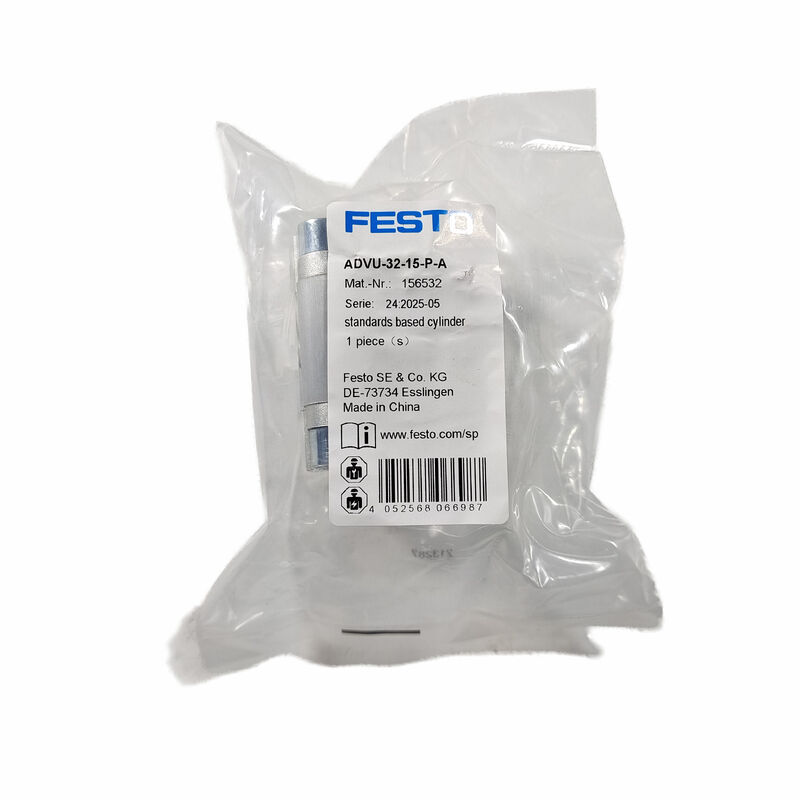

ADVU-32-15-P-A Festo Brand New ADVU3215PA 156532 Cylinder

Festo ADVU-32-15-P-A Compact Pneumatic Cylinder

The Festo ADVU-32-15-P-A is a compact double-acting pneumatic cylinder designed for controlled linear motion in industrial machinery. Its short body length makes it suitable for installations where mounting space is limited.

The cylinder has a 32 mm piston diameter and 15 mm stroke. Elastic cushioning at both ends helps reduce impact during repeated operating cycles.

Key Specifications

Compact Motion Performance

The compact structure provides reliable linear movement without requiring excessive installation space. At 6 bar, the theoretical force is 483 N during advance and 415 N during retraction.

Position detection can be added using compatible proximity sensors. This supports automated sequence control and cylinder position monitoring.

Application Areas

• Packaging machinery
• Assembly equipment
• Clamping mechanisms
• Material handling systems
• Positioning equipment
• Production line automation
• Compact machine modules

FAQ

Q1: What is the bore size of the ADVU-32-15-P-A?
A: The piston diameter is 32 mm.

Q2: What is the stroke length?
A: The cylinder has a 15 mm stroke.

Q3: What operating pressure does it support?
A: The operating range is 0.8 to 10 bar.

Q4: Is the cylinder double-acting?
A: Yes. It uses double-acting pneumatic operation.

Q5: Can it be used with position sensors?
A: Yes. It supports proximity sensor position detection.
