AR30S2R-22B New Original Fuji Push Button Switch AR30S2R22B

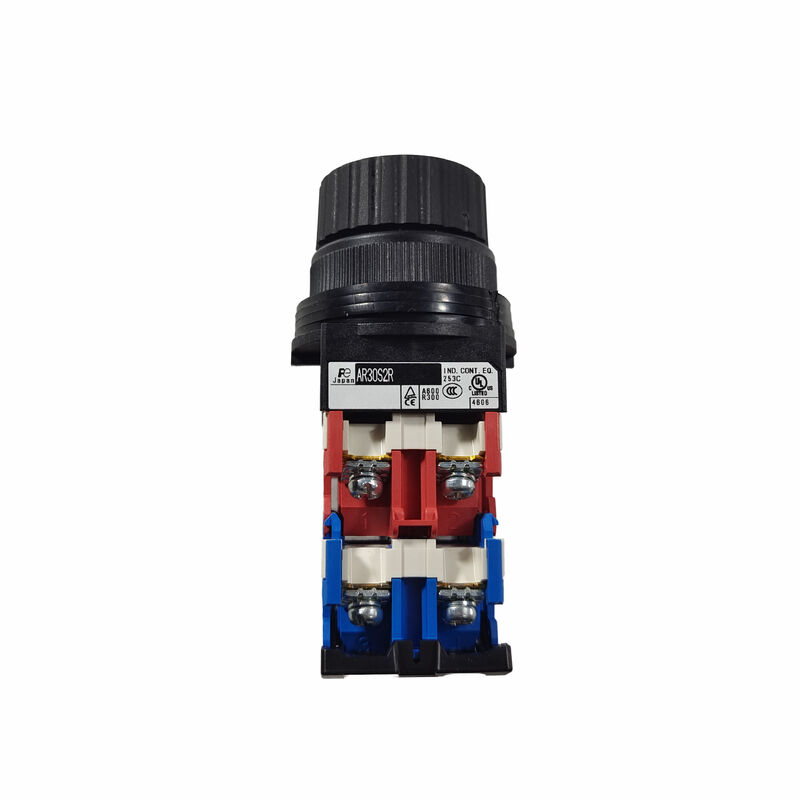

Fuji AR30S2R-22B 30mm Pushbutton with Selector Ring

Combined Panel Control

The Fuji Electric AR30S2R-22B combines a pushbutton with a two-position selector ring. It brings selection and pushbutton operation into one 30mm panel location. The black operator suits industrial control stations and machine panels.

Fuji AR30S2R-22B Technical Specifications

Application Areas

Suitable applications include machine tools, packaging equipment, conveyors and assembly machinery. The combined operator is useful where a control station requires both circuit selection and a manual command.

FAQ

Q1: What type of switch is the AR30S2R-22B?
A: A pushbutton with a two-position selector ring.

Q2: What contacts does it have?
A: Two normally open and two normally closed contacts.

Q3: What mounting size does it use?
A: It uses a 30mm panel mounting size.

Q4: Do all contacts operate together?
A: Contact states depend on ring position and button operation. Check the switching diagram.
