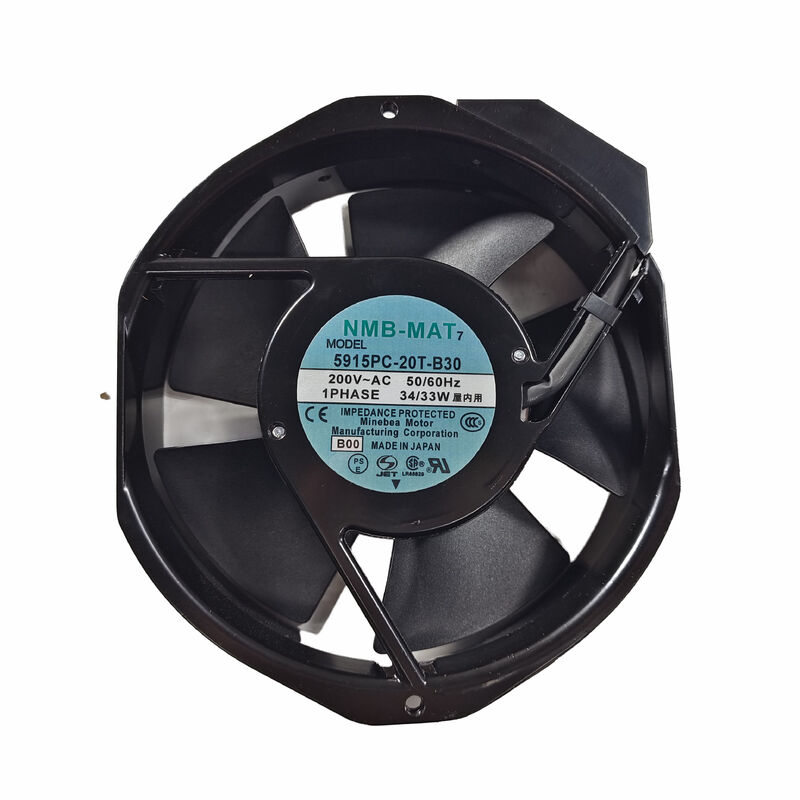

NMB-MAT 5915PC-20T-B30-B00 200V AC Axial Cooling Fan

Cooling Performance

The NMB-MAT 5915PC-20T-B30-B00 is a 200 V AC axial fan with ball bearings. Its 172 × 150 × 38 mm frame fits equipment requiring forced-air ventilation. Maximum airflow reaches 212 CFM at 60 Hz.

Technical Data

Airflow and Installation

The 38 mm frame depth helps accommodate limited installation space. Check mounting clearance and airflow direction before fitting. Filters, grilles and internal obstructions reduce installed airflow. Maximum airflow and maximum static pressure represent different operating points.

Application Areas

Potential applications include electrical control cabinets, power conversion equipment and industrial machinery ventilation. Select the fan to match the equipment’s heat load, available supply voltage and airflow resistance.

FAQ

Q1: What power supply does this fan require?
A: It is rated for 200 V AC at 50 or 60 Hz.

Q2: Does airflow change with supply frequency?
A: Yes. Maximum airflow is 176.5 CFM at 50 Hz and 212 CFM at 60 Hz.

Q3: What type of bearing does it use?
A: It uses ball bearings.

Q4: Will it deliver 212 CFM inside a cabinet?
A: Actual airflow depends on cabinet resistance and operating frequency.
