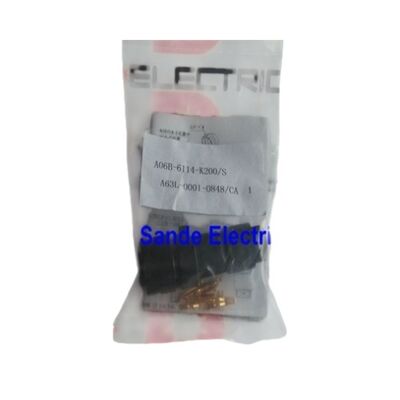

FANUC Encoder Side Connector A06B-6114-K200S / A63L-0001-0848CA

10-Pin | Straight Entry | Motor Feedback Plug | Alpha i Series Servo Motor Compatible

The Connector That Completes the Feedback Loop

Every FANUC CNC servo system depends on one unbroken chain of communication: from CNC controller, through the servo amplifier, down the encoder cable, and into the motor's built-in pulse coder. That chain is only as reliable as its weakest physical connection. The A06B-6114-K200S — also referenced under the FANUC component number A63L-0001-0848CA — is the encoder-side connector plug that forms the critical interface between the encoder feedback cable and the servo motor.

These are the connectors that end up damaged during maintenance, corroded after years of coolant exposure, or simply worn through repeated cable assembly cycles. Having the correct replacement on hand means a feedback fault gets resolved in minutes, not days.

Product Overview

CA vs. CB — Two Variants, One Purpose

The A63L-0001-0848 family comes in two cable exit configurations. The CA variant (this connector) exits the cable straight along the axis of the connector body — the cable runs directly away from the motor end face. The CB variant exits at 90 degrees — the cable bends away perpendicular to the connector axis.

Which one a machine needs depends entirely on the available clearance at the motor encoder port. In tight installations where a cable running axially would foul against an adjacent structure, the elbow (CB) style is the practical choice. Where axial cable routing is clean and unobstructed, the straight CA style is standard. Getting this wrong during a repair means the cable sits under mechanical stress at the connector body, which accelerates both connector and cable degradation.

What This Connector Carries

The 10-pin configuration carries all signals required for the pulse coder (encoder) fitted to FANUC Alpha i series servo motors. These include:

• Position feedback signals — the high-resolution pulse data that tells the servo amplifier exactly where the motor shaft is at all times
• Battery backup lines — the low-current supply that preserves absolute position data in the encoder's memory when main power is off (critical for absolute pulse coder motors that eliminate the need for reference return on power-up)
• Serial communication lines — for the FANUC serial encoder interface protocol used by the Alpha i pulse coder
• Shield/ground connections — essential for noise immunity, given that these signal lines run alongside high-current motor power cables in the same cable duct

Every one of those 10 contacts must be clean, fully seated, and mechanically secure. A single corroded pin or pushed-back contact can produce encoder alarms, erratic position feedback, or complete axis loss — and the fault presentation is often intermittent, making a marginal connector one of the harder faults to diagnose.

Compatible Servo Motors and Systems

The A06B-6114-K200S connector is designed for FANUC Alpha i series AC servo motor encoder connections, as documented in the FANUC Beta series and Alpha i series servo motor description manuals. Documented compatible motor series where this connector style appears include:

• FANUC Alpha i series servo motors (αiS and αiF families)
• FANUC Beta i series servo motors (βiS series — where L and M axis connections are specified for A06B-6114-H304 and related amplifiers)
• FANUC servo motors used with αi series SVM amplifier modules (A06B-6114 series)
• Robot servo motors in FANUC robot controllers using standard FSSB-based servo systems

The connector mates with the corresponding amplifier-side cable assembly through a standard latching metal shell mechanism, providing both electrical continuity and mechanical retention against accidental disconnection.

When This Connector Shows Up on a Work Order

In a busy machine shop, this connector typically appears in three scenarios:

Planned cable replacement. Encoder cables have defined flex life cycles. When replacing an aging encoder cable assembly, the motor-side connector comes with it — or gets replaced separately if the cable body is still serviceable but the connector end has taken damage.

Crash or mechanical damage. A machine crash that pulls the encoder cable taut can damage the connector body, push pins back into the housing, or break the latching shell. Rather than replacing the entire cable run, replacing just the motor-end connector and re-terminating is often the faster, cheaper fix.

Corrosion and contact contamination. In environments with coolant mist, the encoder connector is exposed at the motor end. Metal housing and proper seating provide meaningful protection, but over years of service, contact contamination can cause signal degradation. Connector replacement restores the original contact quality.

A Word on Substitutes and Quality

The FANUC encoder signal protocol is sensitive. The pulse coder outputs serial data at high frequencies, and any increased contact resistance, added capacitance from a poorly shielded connector shell, or dimensional mismatch that allows mechanical play at the contact interface will degrade signal integrity. Using a dimensionally compatible but electrically inferior substitute might appear to work initially, then produce intermittent encoder alarms under thermal expansion, vibration, or after a few hundred flex cycles.

For a production machine, the cost of a correctly specified connector is negligible against the cost of a repeat repair or an unplanned spindle-down event.

Frequently Asked Questions

Q1: What is the difference between the A06B-6114-K200S and the A06B-6114-K200E?

The difference is cable exit direction. The S suffix indicates a straight (axial) cable exit — the cable runs parallel to the connector axis as it leaves the motor end. The E suffix indicates an elbow (90-degree) configuration where the cable bends perpendicular. The A63L-0001-0848CA corresponds to the straight version. Choose based on the available space at your motor's encoder port and how the encoder cable is routed on the machine.

Q2: Is the A06B-6114-K200S the same connector used on all FANUC Alpha i servo motors?

This connector family covers a wide range of Alpha i and Beta i series motors, but FANUC uses different connector specifications across motor generations and families. Always verify compatibility against your specific motor's documentation or the existing connector body on the motor before ordering. For motors in the αiS and βiS families paired with 6114-series amplifier modules, the A06B-6114-K200S / A63L-0001-0848CA is the documented motor-side feedback connector.

Q3: Can this connector be re-terminated in the field, or does it require a full cable assembly replacement?

Re-termination is possible and is standard practice during cable repairs. The pins are soldered or crimped into the connector housing, and a skilled technician can remove the housing, re-prepare the cable ends, and re-terminate. However, the quality of the termination — particularly the shielding continuity and pin seating depth — is critical. A poorly re-terminated connector is often worse than the original fault. For production machines, using a pre-assembled cable or a new connector kit is typically more reliable than field re-termination under time pressure.

Q4: What FANUC encoder alarms typically indicate a connector problem rather than a pulse coder fault?

The most common alarm pattern associated with a marginal connector is an intermittent SV0358 (disconnected encoder) or similar communication error that clears on power cycling or when the cable is physically disturbed. An encoder alarm that appears consistently, without any cable movement, is more likely to indicate a pulse coder failure or battery issue. If the alarm is reproducible by flexing the cable near the motor connector, the connector or the cable end is the first thing to inspect and replace.

Q5: What is the relationship between the A06B-6114-K200S and A63L-0001-0848CA part numbers?

Both numbers refer to the same physical connector. The A06B-6114-K200S is the FANUC system-level ordering number used in amplifier and cable accessory catalogs — it bundles the connector with its context as an approved spare. The A63L-0001-0848CA is the component-level FANUC part number for the connector itself, which cross-references the underlying JAE connector series designation (JN2DS10SL2-R). When sourcing from FANUC aftermarket suppliers, either number will identify the correct part, but always confirm the CA (straight) versus CB (elbow) suffix matches your installation requirement.
