FANUC A16B-1212-0220 | Zero C Control C7 I/O PCB — 104 Inputs / 72 Outputs / Non-Surface-Mount / FANUC 0-C, 0-D, 0-F Series

104 Inputs, 72 Outputs — The Fully Specified Zero C I/O Board

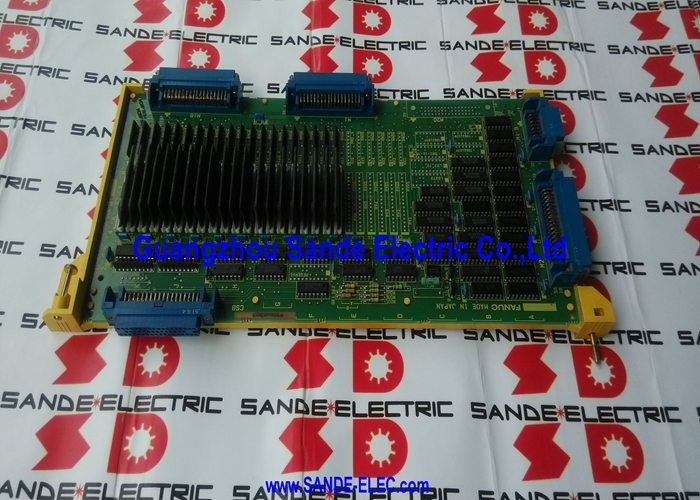

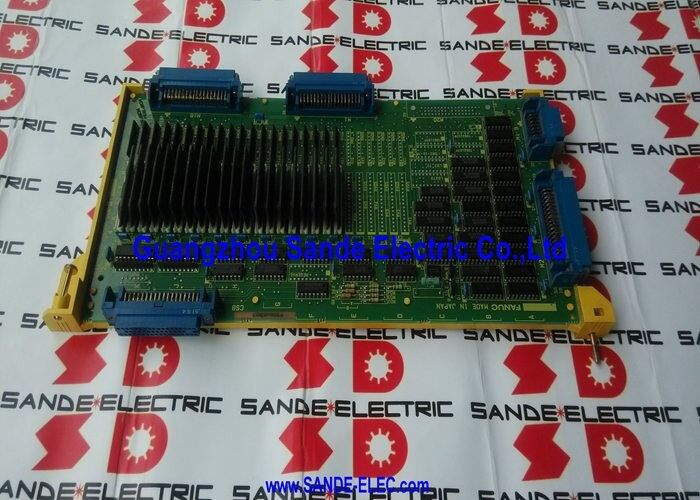

The A16B-1212-0220 is the C7 I/O board for FANUC's Zero (0) series CNC — the long-running Series 0 platform that drove a generation of CNC machine tools through the 1980s and 1990s in its C, D, and F model variants. The C7 designation identifies the fully specified I/O configuration at the high end of the A16B-1212 series: 104 digital inputs and 72 digital outputs. This is the board that fits machines with the highest I/O count within the Zero C control architecture — complex machining centres with full ATC, pallet, and auxiliary function I/O, and turn-mill machines with multiple axes and spindle control.

The board handles the machine interface — every switch, sensor, relay output, and solenoid valve connected to the machine tool that the CNC's PMC ladder logic controls passes through this PCB. The inputs read the machine's physical state (limit switches, door interlocks, sensor signals, operator pushbuttons). The outputs command the machine's actuators (relay coils, solenoid valves, indicator lamps, ATC triggers).

The non-surface-mount construction — through-hole components rather than SMD — is the distinguishing physical characteristic of the original C-series boards. Earlier FANUC I/O boards were not surface-mount, which is relevant when considering repair: through-hole components are more accessible to hand-solder repair than fine-pitch SMD components.

Key Specifications

C7 in the Zero C I/O Board Family

The A16B-1212 series covers the full range of I/O boards for the FANUC Zero C, D, and F control generation. Each variant within the series differs in I/O count and configuration:

The C7 is the highest I/O count standard variant in this board family. Machines with fewer I/O requirements use lower-count variants; the C7 serves the most fully equipped machines.

FAQ

Q1: What FANUC Series 0 variants use the A16B-1212-0220?

The board is designed for FANUC Series 0-C, 0-D, and 0-F controls across multiple machine types: 0-MC (machining centre), 0-TC (turning centre), 0-TTC (twin turret turning centre), 0-MD (machining with direct drive), and 0-TD (turning with direct drive). It also supports OC, OD, and OF spindle and servo interfaces.

Q2: How is a fault on the I/O PCB diagnosed?

I/O PCB faults typically present as specific inputs or outputs becoming unresponsive — a particular switch signal not registering in the PMC, or specific outputs failing to activate regardless of PMC command. Systematic testing using the CNC's I/O diagnostic display (PMC I/O monitor) identifies which specific I/O points have failed. If the fault affects a large block of inputs or outputs rather than a single point, the board itself is the more likely fault source than the field wiring.

Q3: Is the A16B-1212-0220 repairable, or does it require full replacement?

The through-hole (non-surface-mount) construction makes board-level repair more accessible than SMD boards. Common failure points include connector contacts, protection diodes on output channels, and optocoupler ICs on input channels. Specialist FANUC Zero series I/O board repair services can identify and replace failed components and verify the full 104/72 I/O channel count under test.

Q4: Does replacing the A16B-1212-0220 require PMC reprogramming?

The PMC ladder programme is stored in the CNC's main memory, not on the I/O board. Replacing the I/O board does not change the PMC programme. After replacement, verify that all I/O addresses operate correctly by testing each input and output against the PMC monitor. The I/O mapping is defined by the PMC software and the board's physical position in the rack.

Q5: Where is the A16B-1212-0220 sourced?

Through the FANUC Zero series I/O board aftermarket — FANUC Series 0 CNC specialist dealers, board repair services, and tested surplus suppliers. Repair and exchange services are widely available for this generation of FANUC I/O board. Confirm A16B-1212-0220 from the installed board's label. Related boards in the A16B-1212 series have different I/O counts and are not interchangeable.
