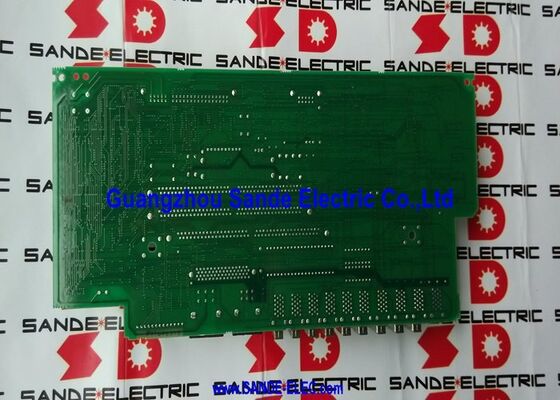

A16B-2202-0432 | FANUC Alpha SPM Control PCB — Top Card for A06B-6088 Series / SPM-15 to SPM-55 / 283–325VDC / Type 1 Interface

SPM — The Spindle Drive Module This Board Controls

The FANUC Alpha SPM (Spindle Power Module) drives the machine tool's main spindle motor. It sits in the drive cabinet alongside the PSM and servo modules, drawing its power from the PSM's DC bus and converting it to variable-frequency, variable-voltage AC output for the spindle motor.

The A06B-6088 series covers a wide range of SPM ratings:

• SPM-15 (A06B-6088-H215): drives Alpha 12, AlphaP15, AlphaP18 spindle motors
• SPM-22 (A06B-6088-H222): drives Alpha aP30, Alpha 15 spindle motors
• SPM-26 (A06B-6088-H226): drives Alpha aP40, Alpha 26 spindle motors
• SPM-30 (A06B-6088-H230): drives Alpha 30, AlphaP40 spindle motors
• SPM-45 (A06B-6088-H245): drives high-power spindle motors at 45kW
• SPM-55 (A06B-6088-H255): 55kW capability

The A16B-2202-0432 is the control PCB (top card) inside all of these SPM variants. One board serves the entire SPM-15 to SPM-55 range.

Key Specifications

Type 1 Interface — Spindle Motor Feedback

The "Type 1 (standard specifications)" designation identifies the spindle motor feedback interface this SPM uses:

M sensor: The standard position/speed sensor for FANUC Alpha spindle motors. Used for speed feedback and spindle orientation positioning.

MZ sensor: A zero-speed/position sensor variant used in built-in motor configurations.

Position coder: A high-resolution position encoder for spindle-as-C-axis applications — thread cutting, rigid tapping, synchronised spindle functions.

The A16B-2202-0432 processes all these feedback types. Its feedback interface circuits read the sensor signals and use them for the closed-loop speed control algorithm — ensuring the spindle reaches and holds commanded speed precisely under varying cutting load.

Application Scenarios

SPM spindle alarm on 18-MC machining centre: A FANUC Alpha SPM-22 spindle module in an 18-MC machining centre develops a persistent spindle alarm (SP alarm code). The base power PCB and driver board test correctly. The A16B-2202-0432 control card is identified as the fault. Board replacement restores spindle operation.

SPM-30 control board failure on 16-TC turning centre: A turning centre with a high-power SPM-30 spindle module loses spindle speed control — the spindle runs but at incorrect speed without responding to programme commands. The A16B-2202-0432 speed control loop circuitry is identified as the fault. Replacement with the same part number restores speed regulation regardless of the SPM-30's higher power rating.

FAQ

Q1: If only the A16B-2202-0432 fails, can it be replaced without replacing the entire SPM module?

Yes. The A16B-2202-0432 is the top control card — physically separated from the base power PCB and driver board inside the module housing. It can be removed and replaced independently. With the module extracted from the cabinet, the A16B-2202-0432 is accessible from the module's front face or after removing the module cover, depending on the SPM variant.

Q2: Does replacing the A16B-2202-0432 affect spindle parameters in the CNC?

No. Spindle parameters (speed limits, acceleration rates, position coder resolution, gear ratios, sensor type) are stored in the CNC's main parameter memory — not in the SPM control board. After fitting the replacement A16B-2202-0432, the CNC communicates with the module using the existing spindle parameters. Verify spindle speed accuracy across the full speed range and confirm rigid tapping or orientation (if used) functions correctly before returning to full production.

Q3: What is the difference between the A16B-2202-0432 and the A16B-2203-0332, which appears alongside it in SPM modules?

Both boards are found inside A06B-6088 series SPM modules. The A16B-2202-0432 is the primary control card (the top card providing the main spindle control logic). The A16B-2203-0332 is an additional signal board providing supplementary interface functions or expanded I/O capability within the module. Both are present in higher-specification SPM configurations. If both need replacement, order both — they serve different functions and one cannot substitute for the other.

Q4: What spindle alarm codes indicate the A16B-2202-0432 has failed?

FANUC Alpha SPM alarms displayed on the module's LED:

• SP alarm 24 (IPM alarm): Often relates to gate drive or power device faults — but if the gate drive board (A20B-2902-0390) is intact, the A16B-2202-0432 may be generating incorrect switching commands
• SP alarm 07 (speed feedback signal error): Points to the feedback processing circuit on the A16B-2202-0432
• SP alarm 29/30/41 (speed error): Speed control loop faults that can originate in the A16B-2202-0432's control algorithm hardware Exclude motor, wiring, and sensor faults before concluding the control card has failed.
