FANUC A20B-2002-0300 | Alpha Series Spindle Motor Encoder Sensor Unit — With Mounting Bracket / On-Board Relay / Type-B Interface

Speed Feedback for the Alpha Series Spindle

The A20B-2002-0300 is the spindle motor encoder sensor assembly for FANUC's Alpha series spindle drive system. It mounts on the rear of the spindle motor, typically under the spindle blower fan, and provides the spindle RPM feedback signal that the Alpha series spindle amplifier module needs to regulate spindle speed under cutting loads.

Unlike servo motor encoders that report absolute or incremental shaft position for position control, a spindle encoder's primary function is speed feedback — the continuous signal the spindle amplifier reads to maintain commanded RPM against variations in cutting force. Without a functioning encoder sensor, the spindle amplifier cannot close its speed loop: it loses the ability to hold stable speed under load, which affects surface finish, tool life, and rigid tapping accuracy.

The sensor unit connects to the JY2 terminal on the Alpha series spindle amplifier module using the Type-B serial interface. This interface specification is specific to the Alpha series — not interchangeable with the FSSB-based feedback of Alpha i or later drive generations.

Two hardware revisions exist: /01A and /02A. Confirm the revision of the installed unit from its label before ordering a replacement.

Key Specifications

On-Board Relay and Mounting Bracket

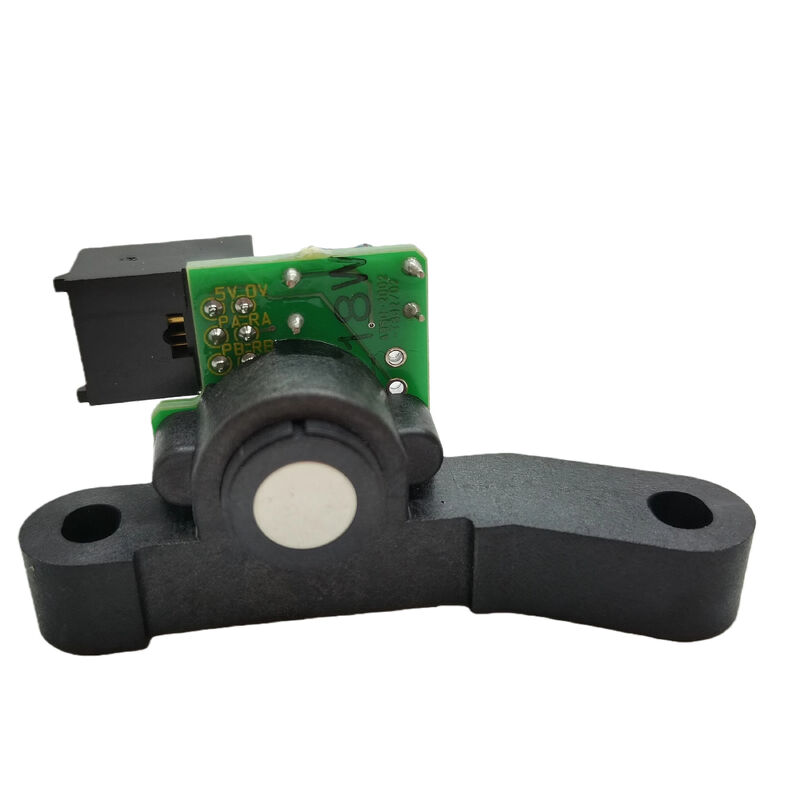

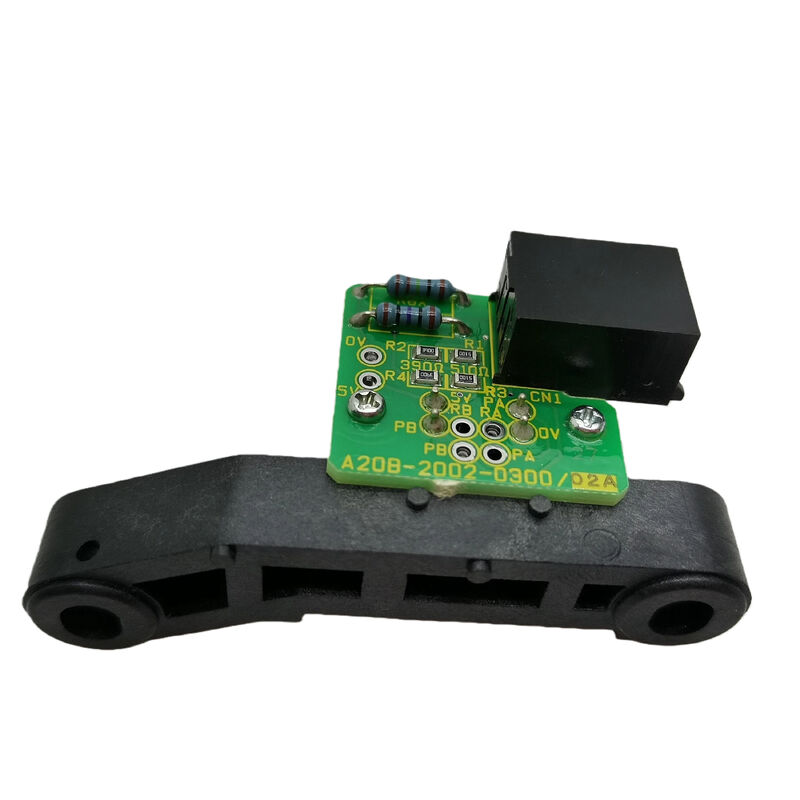

The A20B-2002-0300 is supplied as a complete sensor assembly: the PCB with its on-board relay is mounted in a bracket that locates it correctly relative to the spindle motor's sensor target. The bracket ensures the sensor PCB is positioned at the correct clearance to the motor's magnetic target ring — incorrect clearance produces weak or absent feedback signals even from a functioning PCB.

When fitting a replacement, verify the bracket positioning and sensor-to-target clearance per the spindle motor maintenance documentation. A new PCB installed at incorrect clearance will produce the same alarm conditions as a failed one.

FAQ

Q1: What does the A20B-2002-0300 do in the drive system?

It provides spindle RPM feedback to the Alpha series spindle amplifier module. The sensor detects the rotation of the spindle motor shaft and sends the speed signal to the amplifier via the JY2 terminal connection. Without this signal, the amplifier cannot close its speed loop and the spindle cannot maintain stable speed under cutting load.

Q2: The spindle shows speed hunting under cutting load but runs correctly at no load. Is this sensor the cause?

Speed hunting under load — where spindle speed dips or oscillates when cutting forces increase — is a characteristic symptom of degraded or intermittent speed feedback. If the speed feedback signal is clean at no-load but degraded under load (due to vibration affecting the sensor-to-target clearance or connector contact), speed hunting results. Check the mounting bracket for looseness and the JY2 connector for intermittent contact before replacing the PCB.

Q3: Are /01A and /02A interchangeable?

Both revisions serve the same function. Minor hardware revision differences maintain the same electrical interface and mounting specification. In most cases the revisions are interchangeable, but confirm the revision from the installed unit's label and specify accordingly when ordering to ensure the closest match.

Q4: After replacing the A20B-2002-0300, the spindle shows an orientation fault. What should be checked?

After sensor replacement, spindle orientation requires re-zeroing. The sensor's angular relationship to the motor shaft reference may differ slightly on the new unit. Verify tool change alignment and adjust the spindle orientation stop position parameter (the spindle orientation shift parameter in the CNC's spindle parameter set) in small increments if the spindle stops at a slightly incorrect angle.

Q5: Is the A20B-2002-0300 still available?

Through the FANUC CNC aftermarket — CNC parts dealers and spindle motor service specialists hold both new and tested used units. Confirm the revision (/01A or /02A) and verify both PCB and bracket are included in the supplied unit. Test for on-board relay function and sensor signal output before accepting any used unit.
