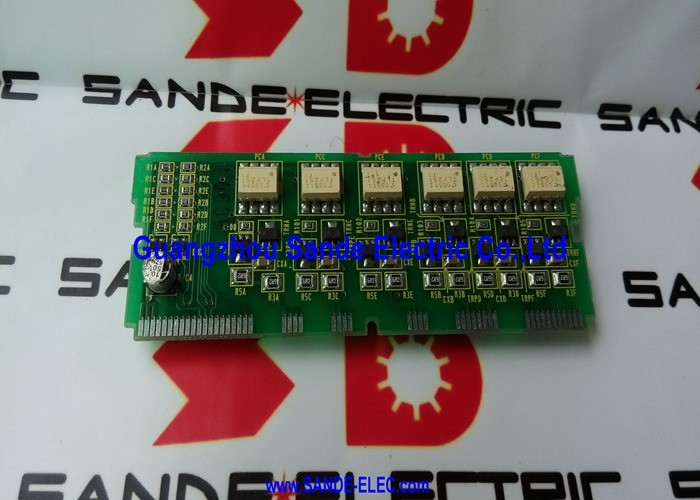

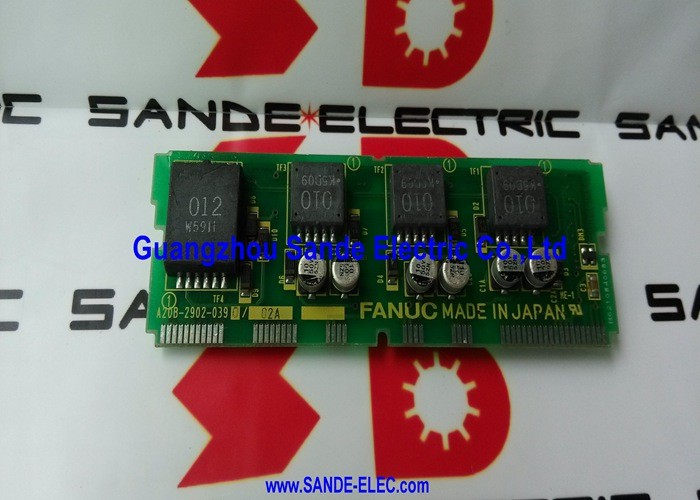

Drive Board A20B-2902-0390 A20B29020390 A2OB-29O2-O39O

A20B-2902-0390 | FANUC Alpha Power Driver Module — IGBT Gate Drive / Firing Board / PSM / SPM-15 to SPM-37 / CNC Drive Systems

Power Driver Module — The Bridge Between Control and Power Devices

Inside every FANUC Alpha drive module, power conversion happens through IGBT (Insulated Gate Bipolar Transistor) switching devices. These transistors carry the full motor or bus current and switch at high frequency — typically 2–4kHz for spindle drives. To switch correctly, each IGBT needs a precisely timed gate drive pulse at the correct voltage level.

The A20B-2902-0390 power driver module generates these gate drive pulses. It receives low-level switching commands from the control PCB (A16B-2202-0432 for spindle modules) and amplifies them into the high-current gate drive signals that actually turn the IGBT devices on and off. This firing/gate drive function is why the board is classified as a "driver module" — it drives the power devices themselves.

Without a correctly functioning A20B-2902-0390:

• IGBTs receive incorrect or no gate drive signals
• Power conversion fails
• The module cannot develop output voltage or current
• Overcurrent or hardware protection alarms fire immediately

Key Product Information

The Internal PCB Stack in Alpha SPM Modules

For a complete picture: the A06B-6088-H222 (SPM-22) as one example contains:

• A16B-2202-0432 (control card): spindle speed control, feedback processing, protection logic
• A20B-1006-0481 (base/power board): DC bus connections, motor output connectors, high-current paths
• A20B-2902-0390 (driver board): IGBT gate drive pulses
• A16B-2203-0332 (additional signal board)

The A20B-2902-0390 is the layer that translates control signals into the electrical events that move motor currents.

Application Scenarios

SPM spindle alarm immediately on enable: A FANUC Alpha spindle module generates an overcurrent alarm the moment the spindle enable command is issued, with no load on the motor. The control card and base power board test correctly, but inspection reveals the A20B-2902-0390 driver board is producing asymmetric gate drive pulses. Replacement restores correct switching and clears the alarm.

PSM fails to establish DC bus: An Alpha PSM unit powers on but fails to develop rated DC bus voltage, displaying a charging alarm. After ruling out AC input and rectifier faults, the A20B-2902-0390 driver board's gate drive output is identified as incorrect. Board replacement restores PSM precharge and bus establishment.

FAQ

Q1: What is the difference between the A20B-2902-0390 and A20B-2902-0391?

These are adjacent part numbers in the same driver module family. The 0390 and 0391 variants serve different power ratings or interface types within the Alpha PSM/SPM range. The A20B-2902-0391 is the corresponding driver board for higher-power or HV-series modules. Always confirm which variant is installed from the board label before ordering — they are not interchangeable.

Q2: Can a damaged A20B-2902-0390 cause permanent damage to the IGBT power devices?

Yes. A gate drive board that produces incorrect timing — for example, simultaneously turning on IGBTs in the same phase leg — creates a direct short across the DC bus. This "shoot-through" condition causes extremely high current to flow through the IGBT devices in microseconds, potentially destroying them. Whenever an IGBT failure is traced back to a board-level fault, the A20B-2902-0390 should be replaced alongside the damaged power devices to prevent recurrence.

Q3: What is the safe discharge procedure before accessing the A20B-2902-0390 inside a PSM or SPM module?

Both PSM and SPM modules contain large DC bus capacitors that retain dangerous voltage after mains power is removed. The mandatory wait time (typically 5–20 minutes depending on module size) must be observed before opening any module housing. Verify discharge by checking the module's charge LED indicator and measuring DC bus voltage with a calibrated voltmeter. Never handle the A20B-2902-0390 with power connected.

Q4: Is the revision /02A critical, or can an earlier revision substitute?

The /02A revision designates a hardware update to the A20B-2902-0390 base design. For most replacement applications, later revisions are backward compatible with the same module. If the installed board label shows an earlier revision (e.g., /01A), fitting a /02A should be compatible. Confirm from FANUC service documentation if there is any known minimum revision requirement for the specific PSM or SPM model.
