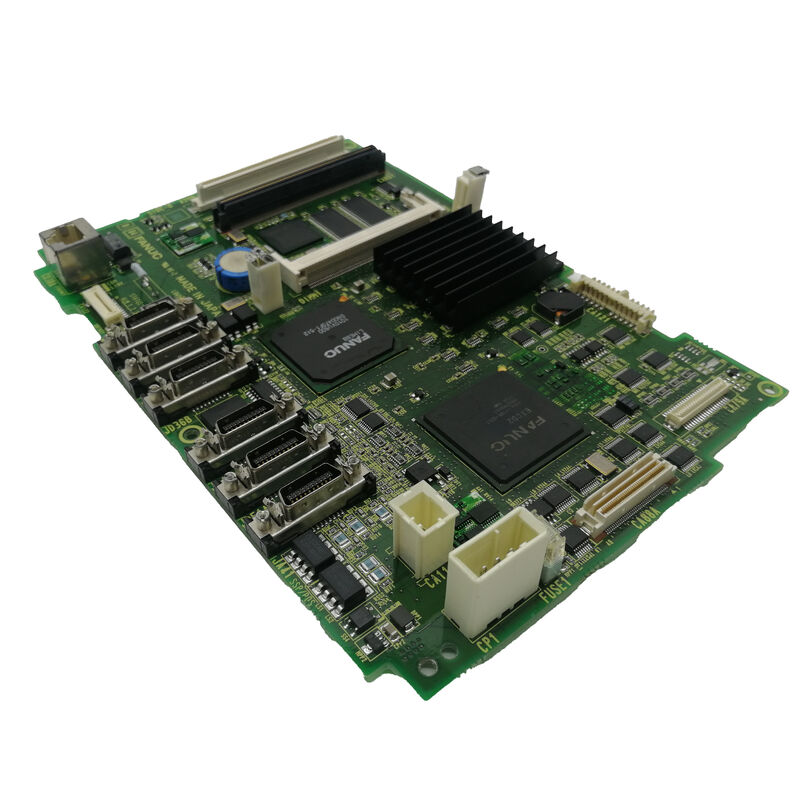

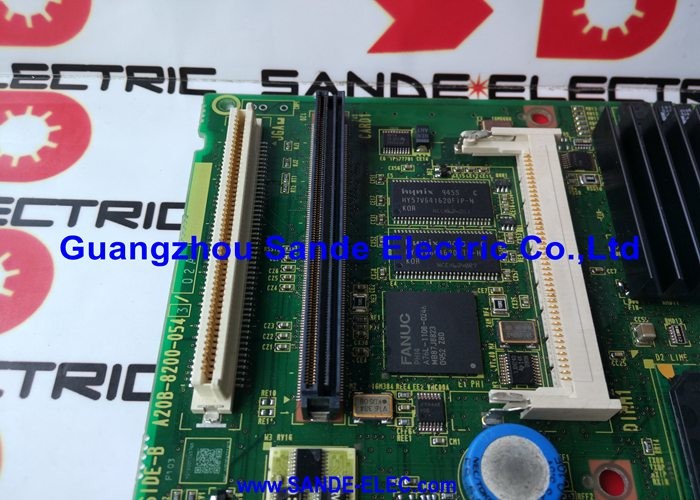

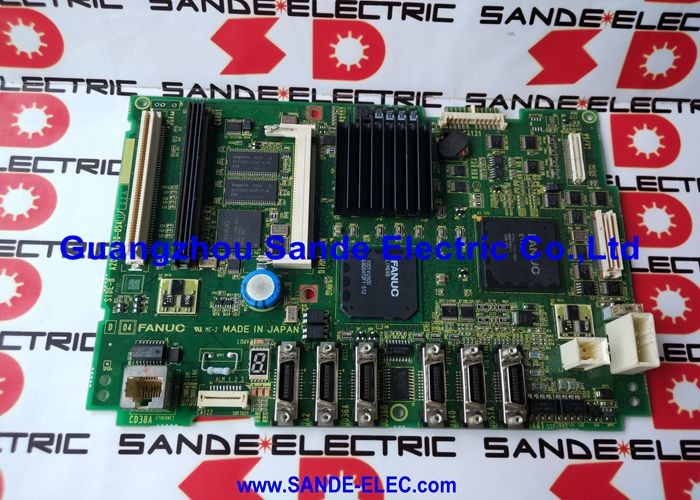

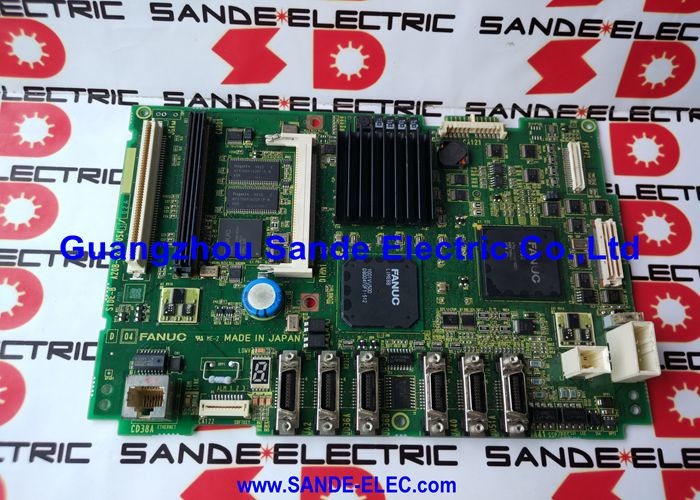

Fanuc Motherboard A20B-8200-0543 A2OB-82OO-O543 A20B82000543

A20B-8200-0543 | FANUC 0i-D / 0i-MD / 0i-TD Main PCB A3 — 5VDC / 9W / Ethernet PC Function / Yellow Backplane / 0.45kg

0i-D System — The Generation the A20B-8200-0543 Serves

The FANUC Series 0i-D is the fourth-generation 0i CNC platform (following 0i-A, 0i-B, and 0i-C). Within FANUC's CNC hierarchy, the 0i-D is the cost-effective, high-reliability option for general-purpose machine tools — machining centres (0i-MD) and turning centres (0i-TD) that do not require the advanced multi-axis capability of the 30i or 31i series.

The 0i-D generation brought meaningful advances over its predecessors: improved servo performance, a more capable PMC (SA1 to SB7 PMC upgrade path), and built-in PC functionality. The A20B-8200-0543 is the A3 main board for this generation — the physical motherboard that all option cards and modules connect to inside the 0i-D control unit.

Key Specifications

PC Function and Ethernet — Network Connectivity Built In

The A20B-8200-0543 includes a PC function with an Ethernet port. This is a significant feature of the 0i-D generation that differentiates it from earlier 0i generations. The PC function allows:

DNC (Direct Numerical Control): Part programmes can be streamed to the CNC from a connected PC over the Ethernet network, without loading the programme into the CNC's programme storage. Long programmes that would not fit in memory run directly from the PC server.

Data collection: Machine status, programme execution data, and production counts can be transmitted to plant network systems via Ethernet. This connectivity supports Manufacturing Execution System (MES) integration without additional communication hardware.

Programme management: Programme libraries stored on a network server are accessible at the machine via the Ethernet connection, simplifying multi-programme production.

Application Scenarios

0i-MD machining centre main board failure: A FANUC 0i-MD CNC fails to boot — the LCD remains blank and no axis power is established. After confirming the power supply is correct, the A20B-8200-0543 is identified as the failed main board. Replacement restores the CNC's boot sequence, and a parameter restore from backup returns the machine to production.

Ethernet connectivity loss: A 0i-TD turning centre loses its Ethernet network connection used for DNC programme streaming. Investigation confirms the Ethernet port on the A20B-8200-0543 has failed. Board replacement restores the DNC network function, allowing programme streaming to resume.

0i-D system refurbishment: An older 0i-MD machining centre is refurbished. The A20B-8200-0543 is replaced as part of a full electronics renewal alongside the other boards in the CNC unit, resetting the main board's service life.

FAQ

Q1: Does replacing the A20B-8200-0543 affect the Ethernet configuration?

The Ethernet MAC address and network parameters (IP address, subnet, gateway) are typically stored in non-volatile memory on the main board or in the CNC's system configuration area. When a replacement A20B-8200-0543 is fitted, Ethernet network parameters may need to be re-entered. The MAC address of the replacement board may differ from the original — inform the network administrator so that DHCP reservations or fixed IP address assignments can be updated if required.

Q2: Is the A20B-8200-0543 compatible with the 0i-C or 0i-B generation?

No. The A20B-8200-0543 is specific to the 0i-D generation. Previous 0i generations use different main board part numbers in different A20B series: the 0i-C uses boards in the A16B-3200-049x range; the 0i-B uses boards in the A16B-3200-049x range as well. The 0i-D's A20B-8200-xxxx main boards are not compatible with earlier 0i hardware architectures.

Q3: What is the recommended cooling requirement for the A20B-8200-0543?

The board requires forced air circulation — it is not rated for natural convection cooling. The 0i-D control unit's internal cooling fan system provides this airflow. Before and after board replacement, verify the control unit's cooling fans are operating correctly. A failed fan that goes unnoticed after a main board replacement can cause the new board to overheat and fail prematurely. Operating the A20B-8200-0543 above 55°C will reduce its reliability and service life.

Q4: What advanced knowledge is required for A20B-8200-0543 replacement?

The complexity comes from: (1) the need for a complete, verified data backup before replacement; (2) Ethernet and PC function configuration steps after fitting; (3) CNC software reload if FROM modules are also being replaced; and (4) the physical disassembly of the LCD/MDI unit to access the main board. Technicians unfamiliar with FANUC 0i-D systems should involve a qualified FANUC service engineer in the replacement process.
