FANUC A44L-0001-0165#150A | Current Sensor (Coil) — 150A / Current Detector for Servo and Spindle Amplifiers

Motor Current — Measured Here, Controlled Everywhere

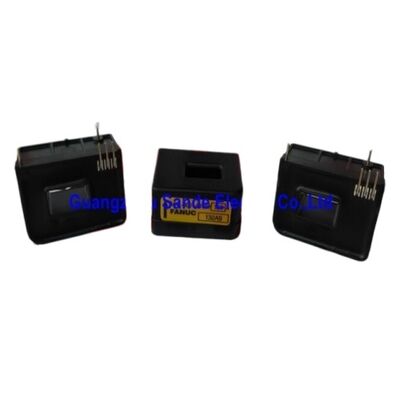

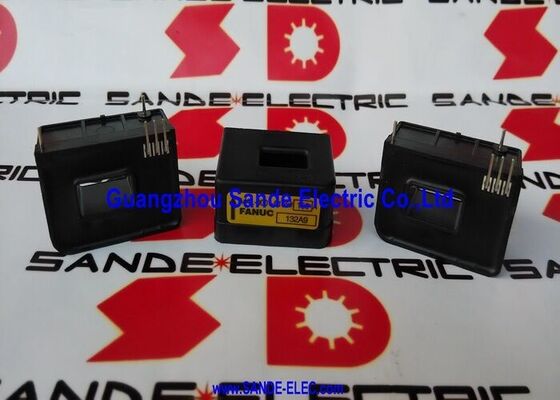

The A44L-0001-0165#150A is FANUC's 150A current sensor — the coil-type detector that measures the actual motor phase current flowing in a FANUC servo or spindle amplifier. The suffix #150A specifies the current rating: this sensor is designed to accurately measure currents up to 150A RMS, which corresponds to the current range of specific servo or spindle amplifier classes that require this sensor.

In a FANUC servo or spindle drive system, the drive's closed-loop current control depends on accurate real-time measurement of the motor current. The current sensor sits in the power circuit — the motor phase cables pass through the sensor's toroidal core, and the sensor outputs a proportional signal to the drive's current feedback circuit. This signal tells the amplifier exactly how much current is flowing to the motor at every moment. The servo control algorithm uses this measurement to regulate torque with the precision required for CNC axis motion and spindle speed control.

If the current sensor fails or reads incorrectly, the amplifier cannot properly close its current control loop. The result is typically an overcurrent alarm — the drive either trips on a spurious current reading that appears as overcurrent, or the actual current becomes unregulated and genuinely overcurrents. The failure mode depends on whether the sensor reads zero (open circuit failure) or an erratic value.

Key Specifications

Selecting the Correct Current Rating

The #150A suffix is not arbitrary — the current rating must match the specific amplifier module the sensor serves. Each FANUC servo and spindle amplifier model has a defined current rating, and the current sensor must be specified for that rating. A sensor rated below the amplifier's peak current output may be driven into saturation or damaged. A sensor rated significantly higher than the actual current provides proportionally less signal resolution.

Available ratings in the A44L-0001-0165 family cover: 50A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, and 600A. Confirm the required rating from the FANUC amplifier's maintenance manual or from the label on the installed sensor before ordering a replacement.

FAQ

Q1: How is a failed current sensor diagnosed in a FANUC drive system?

A failed current sensor typically produces an overcurrent alarm that appears immediately at drive energisation — before significant current can actually flow — or produces an axis/spindle that operates erratically and cannot hold speed. Physically inspect the sensor for cracking, burn marks, or mechanical damage. Substitute with a known-good sensor of the same current rating as the definitive test. If the overcurrent alarm clears with the replacement sensor, the original has failed.

Q2: Can the A44L-0001-0165#150A be replaced with a sensor of a different current rating?

No. The current rating must match the amplifier's specification. A 200A sensor in a 150A amplifier position would work at reduced signal level and may not provide adequate feedback resolution. A 100A sensor in a 150A amplifier position would saturate at the amplifier's peak current. Always use the exact current rating specified for the installed amplifier.

Q3: Is the A44L-0001-0165 a Hall effect sensor or a current transformer?

The A44L-0001-0165 is described as a coil-type current detector — a current transformer format. The motor phase cable passes through the toroidal core, and the sensor outputs a proportional signal through induction. Hall effect current sensors typically describe their output as a DC-accurate signal (able to measure DC as well as AC currents), while transformer-based detectors measure AC motor current — appropriate for the AC motor phase current in FANUC servo and spindle amplifiers.

Q4: Are there compatibility differences between the A44L-0001-0165 series and other FANUC current sensor series?

Yes. FANUC uses several current sensor series across their drive generations. The A44L-0001-0165 is the sensor series for its specific amplifier family — other sensor series (different A44L numbers) may be physically similar but have different output characteristics or mounting arrangements. Confirm the installed sensor's complete part number before ordering a replacement.

Q5: Where is the A44L-0001-0165#150A sourced?

Through the FANUC drive component aftermarket — FANUC amplifier parts dealers, repair specialists, and tested surplus suppliers. The A44L-0001-0165 series in multiple current ratings is a standard replacement item in the FANUC servo and spindle drive aftermarket. Specify the #150A suffix — the current rating determines the selection.
