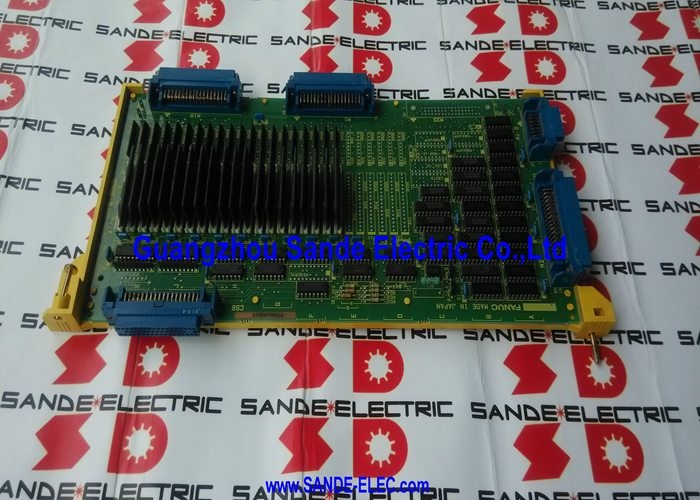

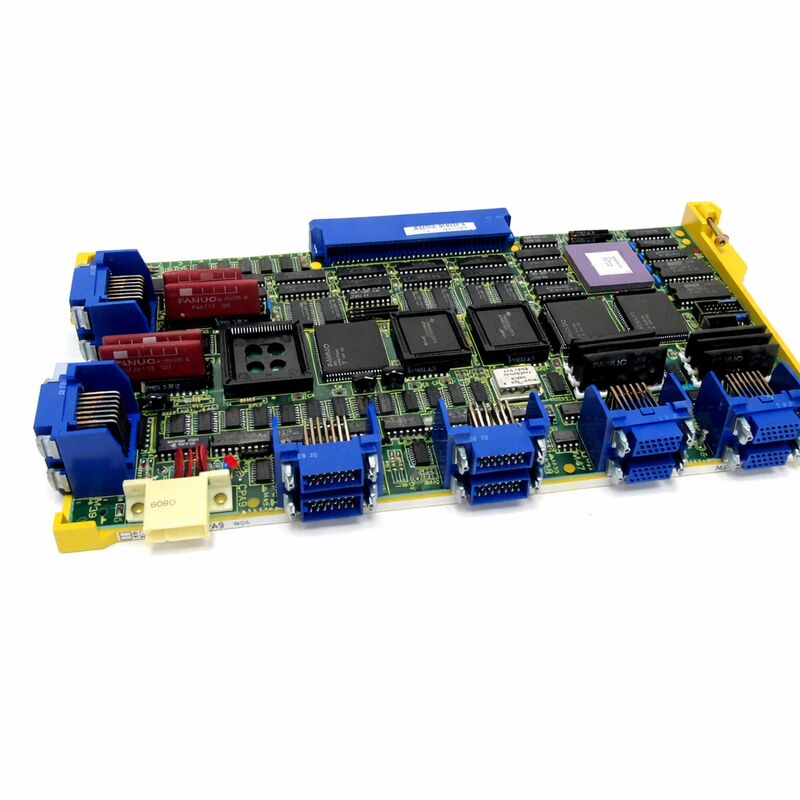

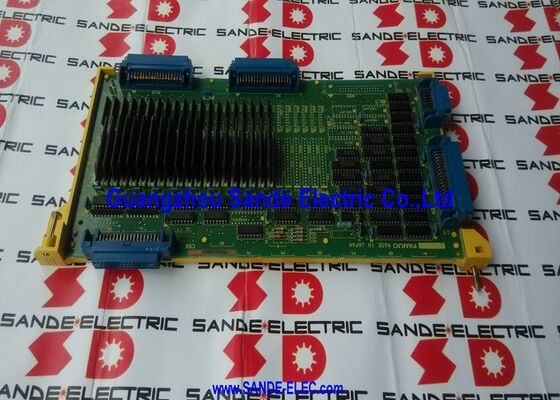

FANUC A16B-1212-0030 | Series 15A Separate Detector Adapter PCB — Full-Closed Loop Feedback for 15-MA / 15-TA

Part Number: A16B-1212-0030

Cross Reference: A16B12120030

Manufacturer: FANUC Corporation (Japan)

Product Type: Separate Detector Adapter — Add-On PCB

What a Separate Detector Does — and Why This Board Exists

In a standard FANUC servo axis, position feedback comes from the encoder mounted on the servo motor shaft. The CNC reads the encoder count, computes actual position, and closes the loop. That arrangement — called semi-closed loop — is accurate enough for most machine tool applications.

Full-closed loop control adds a second feedback device mounted directly on the machine's moving element: a linear scale on the table, a rotary inductosyn on a rotary axis, or a secondary position coder on the ballscrew nut. The machine's actual mechanical position — not just the motor shaft angle — is fed back to the CNC. Any thermal expansion, ballscrew pitch error, or bearing deflection between the motor and the workpiece is measured and corrected in real time.

The A16B-1212-0030 is the hardware that makes this work on Series 15A systems. It adds the signal input path for the separate detector to the CNC control — without this board, the Series 15A cannot accept or process a separate detector signal, and any parameter enabling full-closed loop feedback will generate an alarm.

This board fits FANUC Series 15-MA (machining centre) and 15-TA (turning centre) installations. It is an add-on PCB that connects to the Series 15A control hardware and provides the additional signal processing channel the separate detector requires.

Typical Applications

Precision boring mills and jig borers where table position must be held within microns regardless of thermal growth. Large-frame machining centres where the ballscrew pitch error at full travel would exceed the required part tolerance without closed-loop compensation. Grinding machines using rotary inductosyn feedback on the grinding wheel axis. Retrofit projects restoring the original full-closed loop architecture of a Series 15A machine after detector adapter failure.

Key Specifications

FAQ

Q1: The Series 15A CNC generates an alarm related to the separate detector. Is the A16B-1212-0030 the cause?

Before assuming the board has failed, trace the fault from the detector outward. Check the linear scale or inductosyn signal cable for damage and verify the detector's supply voltage. Inspect the connector between the detector cable and the A16B-1212-0030. If the detector, cable, and connector are confirmed good and the alarm persists, the adapter board has failed.

Q2: Is this board required if the machine only uses motor-mounted encoder feedback?

No. The A16B-1212-0030 is only needed when the machine uses a separate position detector for full-closed loop control. A Series 15A running purely semi-closed loop — motor encoder only — does not require this board and will operate normally without it.

Q3: Can the A16B-1212-0030 work with any type of linear scale?

The board accepts signal types compatible with the Series 15A's separate detector interface — typically sine/cosine analogue or incremental TTL/differential square-wave signals from scales and inductosyn devices. Confirm the specific scale's output format matches the adapter's input specification before installation.

Q4: After replacing the A16B-1212-0030, the CNC still shows a detector alarm. What should be checked?

Verify the replacement board is correctly seated in its connector. Then confirm the Series 15A parameters that enable the separate detector feedback are correctly set — particularly the axis configuration parameter that defines which axes use separate detector input. A parameter mismatch produces an alarm even with a functioning board.

Q5: Is the A16B-1212-0030 available for a Series 15A machine that is still in production?

The Series 15 platform is discontinued by FANUC. The A16B-1212-0030 is sourced through the industrial CNC aftermarket — legacy FANUC parts specialists and Series 15 repair companies. Component-level repair of the original failed board is also a viable option when exchange stock is scarce, since the failure in these adapter boards is often localised to a single signal-conditioning IC or connector.
