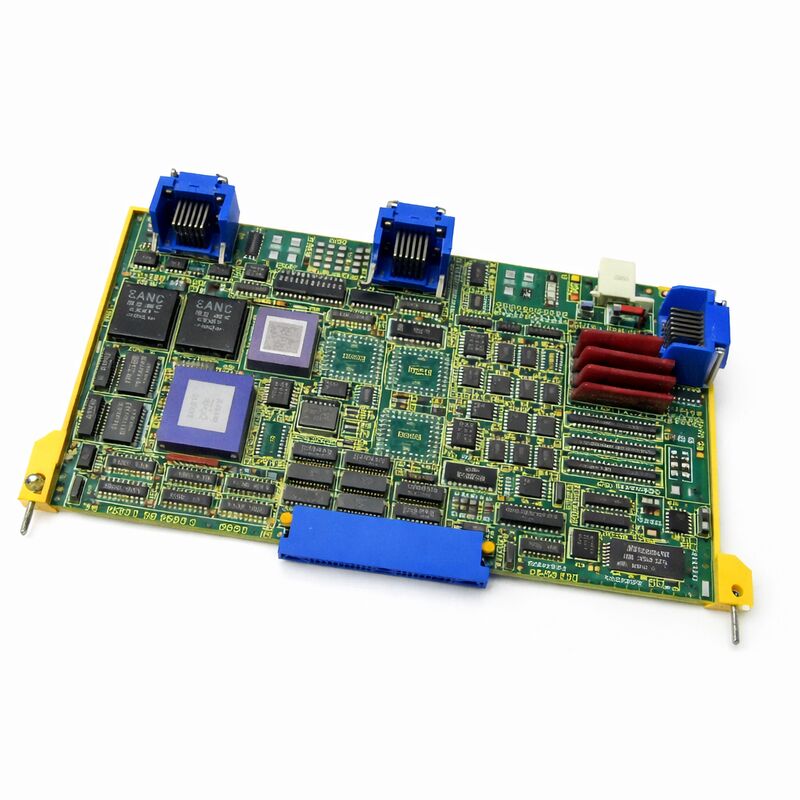

FANUC A16B-2200-0093 1-Axis Control PCB for 15A

The A16B-2200-0093 is a single-axis control board used in FANUC 15A control systems. It is consistently described as a 1-axis PCB for 15A control, an axis control board, and a single-axis digital control board for Type A interface layouts. Several service specialists also identify it as a 1-channel axes board used in 15-MA or 15TA configurations.

This part sits in the axis-control layer rather than the display or memory section. Repair sources note that it is used with digital AC servo amplifier families such as A06B-6058, A06B-6066, and A06B-6090 series arrangements, and that it can work as an additional add-on axis board alongside larger 2-, 3-, or 4-channel axis boards. That makes it useful in systems where one extra controlled axis needs the original FANUC board structure to stay intact.

Key Product Data

Application Areas

A16B-2200-0093 is typically used in FANUC 15A machines that require a single-axis digital control board in a Type A interface layout. It is well suited to one-axis add-on control, 15A axis-board replacement, and repair work in machines that combine this 1-channel board with other multi-channel axis boards.

In actual machine service, this board is most relevant where the machine’s servo architecture already matches the 15A digital axis family and the target axis path has been isolated to the control board rather than to feedback, power, or main control faults.

FAQ

Q1. What type of board is the A16B-2200-0093?
It is a 1-axis control PCB for FANUC 15A, also described as a single-axis digital axis control board and a Type A interface board. Some repair specialists also refer to it as a 1-channel axes board.

Q2. What does this board do in the system?
Its role is to manage the single-axis digital control path within a 15A system. Specialist repair sources describe it as a board used in 15-MA / 15TA environments and as an add-on axis board that can run with other multi-channel axis boards in the same control.

Q3. What should be checked when selecting A16B-2200-0093?
Check the exact part number, the control family, and whether the machine uses a 15A Type A axis layout. It is also worth confirming whether the installed board is part of a larger axis-board combination, since this model can operate alongside 2-, 3-, or 4-channel axis boards.

Q4. How should the key specification be understood?
“1-axis” means this board handles one controlled axis path, “15A” identifies the control family, and “Type A” identifies the interface format it was designed for. Those three elements need to match the installed servo-control structure before replacing the board.

Q5. How should faults be diagnosed before replacing this board?
A useful starting point is to separate single-axis control faults from servo amplifier faults. If one axis is affected while the rest of the system remains stable, and the machine is known to use a 1-channel 15A axis board, the control PCB becomes a more likely fault point. It is also sensible to check the associated digital amplifier family, because this board is tied to installations using A06B-6058 / 6066 / 6090-series amplifier arrangements.
