Pc Board 4axis Control A16B-2200-0250 A16B-22OO-O25O A16B22000250

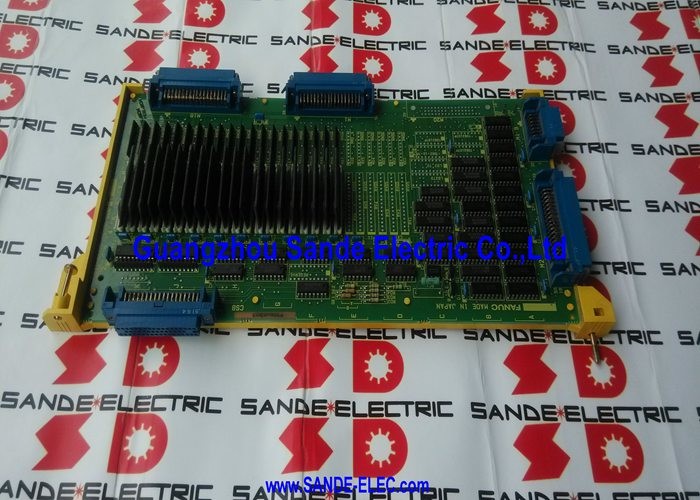

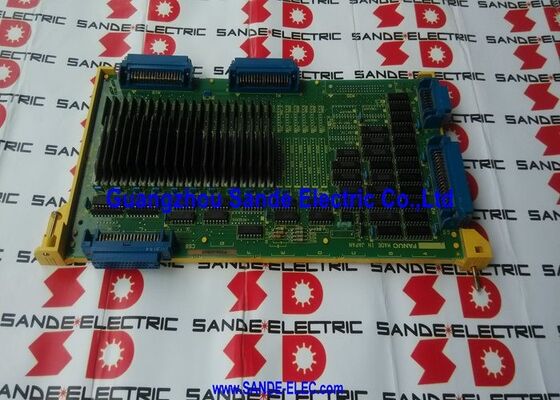

FANUC A16B-2200-0250 4-Axis Axis Control Board

The FANUC A16B-2200-0250 is best treated as a 4-axis axis control board used in legacy FANUC motion-control environments. Different service channels tie this reference to two installed contexts: one group describes it as a 4-axis card for RG2/RH robot control, while another describes it as a 16-bit analog 0-C axis board for older AC or DC velocity-control arrangements.

What stays consistent across those descriptions is the board’s role as an axis-control PCB rather than a memory, display, or I/O board.

That makes A16B-2200-0250 a part that should be selected by exact installed platform match, not by appearance alone.

In practical maintenance work, the most important question is whether the machine already uses this reference in a robot-axis layout or in a 0-C analog axis layout

Technical Data

Application Scenarios

A16B-2200-0250 is suitable for legacy FANUC axis-board replacement, especially where the installed hardware already uses this exact 4-axis control board.

Depending on the machine, that can include RG2/RH robot control repairs or older 0-C analog axis-control restoration.

Product Advantages

The main advantage of this board is that it is not a generic control PCB. It is a dedicated 4-axis control board, which makes it useful when the installed machine already depends on the same axis-control structure.

Another practical advantage is that it remains identifiable across older FANUC environments, so once the platform is confirmed, matching is much more precise than using a broad “axis board” category alone.

FAQ

Q1. What type of board is A16B-2200-0250?
It is a 4-axis axis control board. In service channels it is described both as a 4-axis card for RG2/RH robot control and as a 16-bit analog 0-C axis board, so the installed controller family should be checked carefully.

Q2. What does this board do in the system?
Its job is to handle multi-axis motion control. The stable part of the description is the 4-axis control function, which places it in the machine’s axis-control section rather than in memory, display, or machine I/O.

Q3. What should be checked when selecting A16B-2200-0250?
Check the exact part number, the installed controller family, and whether the machine is using this board in a robot control or 0-C analog axis-control layout. That platform check is essential because this reference appears in more than one legacy FANUC hardware context.

Q4. How should the key specification be understood?
The most important identifier is 4-axis control. For this board, axis count is the stable functional match, while the surrounding platform context must be confirmed from the installed machine.

Q5. How should faults be diagnosed before replacing this board?
Start by separating an axis-control board fault from a servo drive, feedback, or main control fault. If the machine’s axis section is the only affected area and the installed board reference matches A16B-2200-0250, this board becomes a stronger replacement candidate.
