FANUC A20B-2002-0300 | Alpha Series Spindle Motor Encoder Sensor Unit — With Mounting Bracket / On-Board Relay / Type-B Interface

Spindle Speed Feedback for the Alpha Series Drive System

The A20B-2002-0300 is the spindle motor encoder sensor assembly for FANUC's Alpha series spindle drive system. It mounts on the rear of the spindle motor — typically under the blower fan — and generates the spindle RPM feedback signal that the Alpha series spindle amplifier needs to regulate speed under cutting loads.

The sensor connects to the JY2 terminal on the Alpha series spindle amplifier module via the Type-B serial interface. This interface specification is specific to the Alpha generation — not compatible with the FSSB-based feedback of Alpha i or later drive generations.

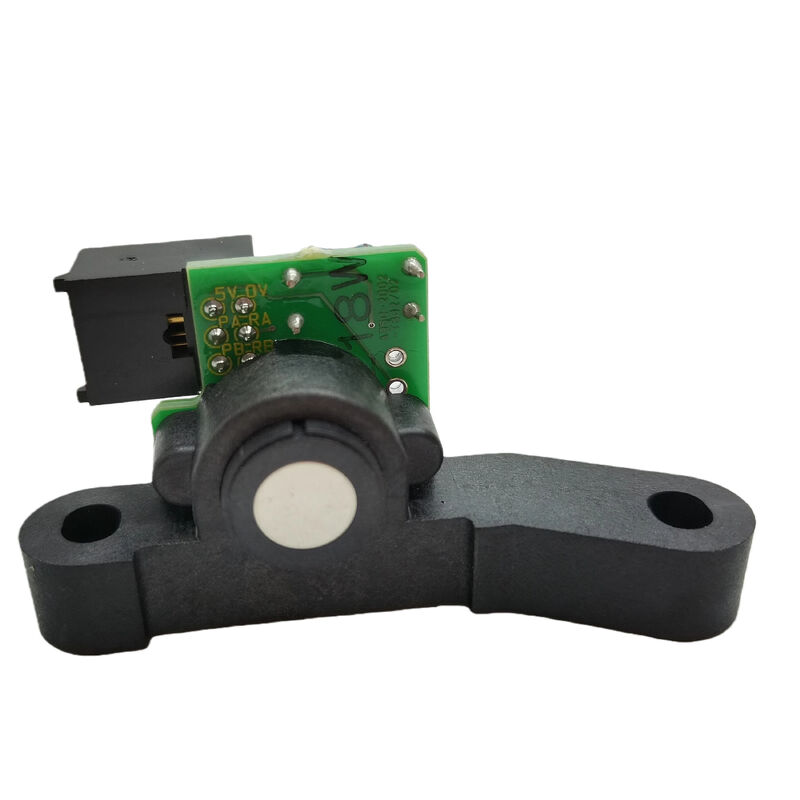

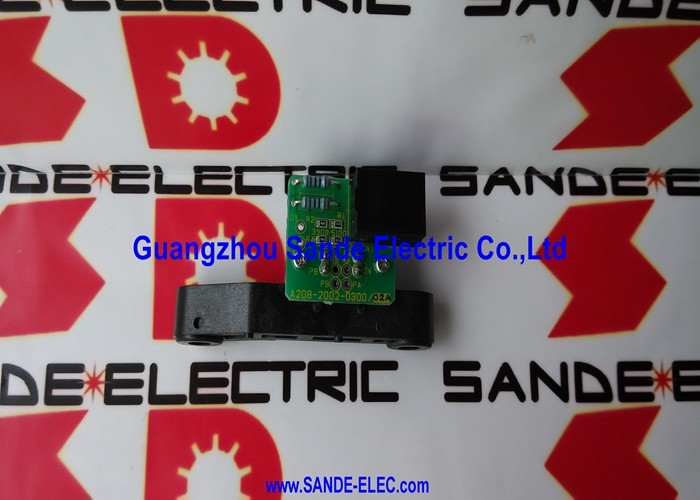

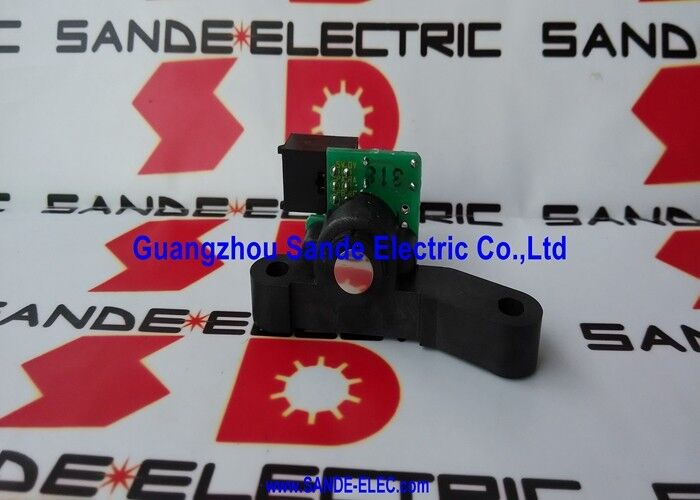

The assembly is supplied as a complete unit: the PCB with its on-board relay mounted in a bracket that positions the sensor at the correct clearance from the spindle motor's magnetic target ring. The bracket determines the air gap between the PCB's sensing elements and the rotating target. Incorrect air gap after installation produces weak or absent feedback signals even from a functioning PCB. Verify the sensor-to-target clearance per the spindle motor's maintenance documentation whenever the assembly is removed and refitted.

Two hardware revisions exist — /01A and /02A. Both serve the same function. Specify the revision from the installed unit's label when ordering if revision matching is required.

Key Specifications

Replacement Reference — A290-0854-V320

FANUC's aftermarket lists the A290-0854-V320 as a related replacement for spindle feedback applications where the A20B-2002-0300 is required. Before substituting with an alternate reference, confirm that the mechanical mounting, connector type, and Type-B signal interface match the installed amplifier and motor configuration.

Fault Diagnosis — The On-Board Relay

The on-board relay on the A20B-2002-0300 provides a switch output that the spindle amplifier uses for fault detection and speed confirmation functions. If spindle speed feedback is lost or the relay output is absent, the amplifier generates a spindle alarm. Before replacing the PCB, verify the mounting bracket for displacement from its mounting position and inspect the JY2 connector for corrosion, coolant residue, or bent pins. A connector fault or shifted mounting produces identical alarm symptoms to a failed PCB.

FAQ

Q1: What does the spindle encoder sensor do in the drive system?

It provides spindle RPM feedback to the Alpha series spindle amplifier via the JY2 terminal. The amplifier uses this signal to maintain commanded spindle speed under varying cutting loads. Without a valid feedback signal, the amplifier cannot close its speed loop and generates a spindle alarm.

Q2: The spindle speed appears normal but tool changes fail with an orientation alarm. Could the A20B-2002-0300 be the cause?

Yes. If speed feedback is present but the Z-pulse reference (once-per-revolution orientation pulse) is absent or intermittent, the spindle can run at commanded speed but cannot orient for tool change. Check the mounting bracket for displacement — a shifted sensor position weakens the Z-pulse without fully disabling speed feedback. Inspect the JY2 connector before replacing the PCB.

Q3: Are /01A and /02A revisions interchangeable?

Both revisions serve the same functional role. Minor hardware changes between revisions maintain the same electrical interface and mounting specification. In most cases they are interchangeable. Confirm from the installed unit's label and specify the revision when ordering if exact revision matching is required.

Q4: After replacing the A20B-2002-0300, the spindle orientation stops at a slightly wrong angle. Is the new sensor faulty?

After sensor replacement, the orientation stop position typically requires re-zeroing. The new sensor's angular reference may differ slightly from the original. Adjust the spindle orientation stop position parameter in the CNC's spindle parameter set in small increments until the stop angle aligns correctly.

Q5: Is the A290-0854-V320 a direct replacement for the A20B-2002-0300?

The A290-0854-V320 is listed as a replacement reference in the aftermarket. Before substituting, confirm the mechanical mounting, bracket geometry, connector type, and Type-B interface compatibility match the specific motor and Alpha series spindle amplifier installed in the machine.
