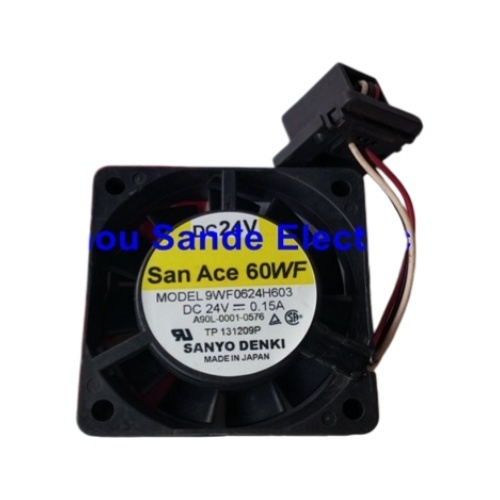

Sanyo SanAce60WF DC 24V 0.15A Fan waterproof 9WF0624H603 9WFO624H6O3

FANUC 9WF0624H603 | 24V DC System Cooling Fan — 0.15A / 60×60×20mm / FANUC CNC and Drive Cabinets

Thermal Management for FANUC Control Hardware

The 9WF0624H603 is a 24V DC brushless cooling fan in the 60×60×20mm standard form factor — used throughout FANUC's CNC control units, servo amplifier modules, and operator panel assemblies to maintain operating temperatures within rated limits. At 0.15A drawn from a 24V supply (3.6W), it provides airflow over heat-generating electronics without significant power draw.

Cooling fans are wear items in FANUC control systems. Bearing wear in the fan motor is one of the most common preventable maintenance events in CNC cabinet service — a fan that is slowing down or running intermittently allows temperature to rise gradually, producing performance degradation or drive alarms before a complete thermal shutdown occurs. Many FANUC CNC and amplifier units display cooling fan alarm codes when the fan speed drops below a threshold; others detect the fan failure only through thermal overload.

Replacing the 9WF0624H603 at the first sign of increased noise, reduced airflow, or a fan alarm code is significantly less disruptive than dealing with a thermal-induced drive failure.

Key Specifications

Installation and Replacement Notes

The 9WF0624H603 connects to the host unit's 24V supply via its cable connector. Before fitting the replacement fan, confirm the connector type and pin assignment match the unit's fan header. The 24V supply must be from the correct source in the control system — do not connect to an incorrectly rated supply.

Mount the fan in the same orientation as the original — airflow direction (intake or exhaust) matters for effective cooling. Most FANUC panel and drive fans pull air across the heat-generating components from the intake side. Reversing the fan direction significantly reduces effective cooling.

After fitting, power up the system and confirm the new fan spins immediately at startup. A fan that hesitates at startup has a bearing fault from the beginning — replace again before running the system.

FAQ

Q1: How frequently should the FANUC cooling fan be replaced?

FANUC typically recommends replacing cooling fans every 2–3 years in normal continuous production environments, or at the first sign of bearing noise, reduced speed, or a fan alarm code. In high-ambient-temperature environments or production lines running multiple shifts, earlier inspection and replacement is prudent.

Q2: The CNC shows a cooling fan alarm. Does this mean the 9WF0624H603 has completely stopped?

Not necessarily — FANUC fan alarm circuits detect when the fan's speed drops below a threshold, which can occur before the fan completely stops. A fan running at half speed still draws current but may not provide sufficient airflow. Replace the fan when the alarm appears rather than waiting for complete failure.

Q3: Is the 9WF0624H603 specific to FANUC, or can a standard 60mm 24V DC fan replace it?

The 9WF0624H603 is a FANUC-specified fan with a defined connector and orientation. A standard 60mm 24V DC brushless fan of equivalent airflow can be used in some applications if the connector and airflow direction match. However, a genuine FANUC fan ensures correct connector fitment and meets the original design specification. Confirm connector type and airflow direction before substituting a non-FANUC unit.

Q4: The fan is running but the drive still shows a thermal alarm. What should be checked?

Confirm the fan is providing adequate airflow — a fan that is spinning slowly due to a partially failed bearing or an obstructed inlet/outlet may not move enough air despite appearing to run. Check that the fan inlet is not blocked by debris or cables. Verify the drive cabinet's overall air circulation is adequate and the ambient temperature is within the drive's specified range.

Q5: Where is the 9WF0624H603 sourced?

Through FANUC-authorised service channels and the FANUC spare parts aftermarket — CNC service suppliers and drive maintenance specialists. Confirm the 9WF0624H603 model designation from the installed fan's label. Fans with similar dimensions but different voltage or connector types are not compatible.
