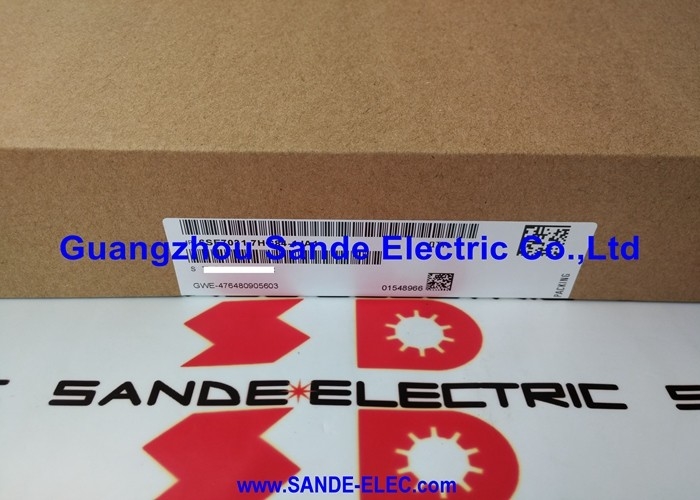

Original Siemens Precharging Board 6SE7031-7HF84-1HH1 6SE70317HF841HH1 6SE7O31-7HF84-1HH1 6SE7 031-7HF84-1HH1

6SE7031-7HF84-1HH1 | Siemens SIMOVERT MASTERDRIVE PCU1 Precharging Module — Designs E & F / 3-Phase 380–575V / 50/60Hz

Why a Precharging Module Is Essential in a Drive System

Every AC drive with a DC bus has large electrolytic capacitors in the DC link section. These capacitors store the energy that smooths the rectified DC voltage and supplies the inverter stage. When a drive is powered up from a cold start, those capacitors are completely discharged — their impedance is momentarily very low. Without limiting the inrush, direct connection to mains would push an extremely high surge current through the rectifier bridge and capacitors, potentially causing immediate overcurrent damage.

The precharging module (PCU1) controls this initial charging process. It limits the inrush current to a safe level by inserting a controlled impedance path during start-up. Once the DC bus voltage reaches a safe level close to its operating value, the precharging circuit switches out and the drive enters normal operating mode.

The 6SE7031-7HF84-1HH1 provides this function specifically for SIMOVERT MASTERDRIVE converters in Design E and F configurations.

Key Specifications

Precharging Sequence — What Happens on Power-Up

When mains is applied to a MASTERDRIVE unit containing the 6SE7031-7HF84-1HH1:

1. The mains voltage is connected through the PCU1's limiting circuit — current inrush is controlled as the DC bus capacitors charge.
2. The PCU1 monitors the DC bus voltage. As voltage rises toward the operating level, the charging sequence progresses.
3. When the DC bus reaches the threshold voltage indicating full capacitor charge, the PCU1 signals completion and the main contactor or bypass closes, connecting the rectifier directly to the DC bus.
4. Normal drive operation begins. The PCU1 remains in circuit as a supervisory element, ready for the next start sequence.

Application Scenarios

MASTERDRIVE unit service: A SIMOVERT MASTERDRIVE Design F converter in a heavy-duty press drive develops a start-up fault — the drive trips on DC bus undervoltage before reaching operating speed. Inspection identifies the PCU1 precharging module as the failed component. Fitting the 6SE7031-7HF84-1HH1 replacement restores the correct precharging sequence, and the drive powers up successfully.

Preventive spare: A steel mill operates multiple SIMOVERT MASTERDRIVE E and F frame drives on continuous rolling mill duties. A 6SE7031-7HF84-1HH1 is maintained as a workshop spare, allowing immediate replacement on a PCU1 failure without waiting for a shipping lead time.

FAQ

Q1: How do I know if the 6SE7031-7HF84-1HH1 is the correct PCU1 for my MASTERDRIVE?

Confirm the MASTERDRIVE unit's design letter from its nameplate — the design must be E or F. Also verify the input voltage — the 6SE7031-7HF84-1HH1 covers 380–575V AC three-phase. If the unit's mains voltage and design letter match, the 6SE7031-7HF84-1HH1 is the correct PCU1. For design letters A through D, or for voltages outside 380–575V, a different PCU1 part number applies.

Q2: What symptoms indicate a failed PCU1 precharging module?

A failed PCU1 typically causes the drive to trip on DC bus overvoltage (capacitor charging out of control), DC bus undervoltage (capacitor not charging at all), or an overcurrent alarm at the point of mains application. A visible sign is burn damage, component discolouration, or failed resistors or relays on the PCU1 board. Some failures are intermittent — the drive powers up correctly sometimes but trips on other start attempts.

Q3: Can the 6SE7031-7HF84-1HH1 be operated on 60Hz mains supplies?

Yes. The module is rated for 50/60Hz input frequency, covering both European 50Hz and North American 60Hz mains systems. The 380–575V voltage range covers the major industrial supply voltages in both regions — 400V/415V for European supplies and 460V/480V for North American supplies.

Q4: Does the precharging module need to be set up or configured after installation?

The PCU1 is a hardware component — it does not carry parameters or firmware. Installation involves physically fitting the module in the correct location within the MASTERDRIVE E or F frame and connecting the specified connectors per the MASTERDRIVE installation manual for the applicable design size. No software commissioning is required after installation.

Q5: Can the MASTERDRIVE run without the PCU1 if it has failed?

No. Attempting to power a MASTERDRIVE Design E or F without a functioning PCU1 would subject the DC bus capacitors and rectifier bridge to uncontrolled inrush current on every start. This damages the rectifier diodes and capacitors — typically causing immediate and severe internal failure of the converter on the first power application without precharging.
