Original Siemens Mm430 Inverter/Converter Cpu Control Board /Main Board MC00160783G01 MCOO16O783GO1

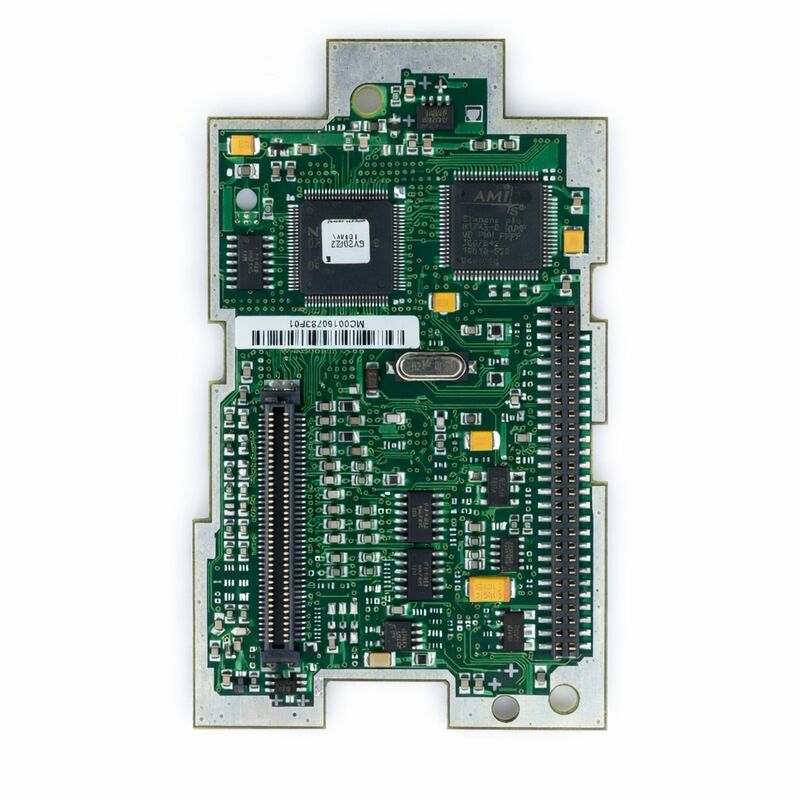

Siemens MC00160783G01 MM430 Inverter CPU I/O Control Board

The MC00160783G01 belongs to the same Siemens inverter-board family used in MICROMASTER 430 drives, but it is more explicitly described as an inverter CPU and I/O control motherboard.

That wording makes it especially suitable for product pages where the board needs to be presented as a control-and-interface PCB inside the inverter rather than as a standalone communication card.

Siemens MM430 documentation shows a detachable I/O board arrangement and a modular internal structure, which is useful context for this part. In practical terms, MC00160783G01 fits the control section where CPU logic and interface management need to remain aligned with the original MM430 hardware layout.

Technical Data

Typical Applications

MC00160783G01 is appropriate for MM430 inverter repair, CPU / I/O board replacement, and drive restoration where the installed inverter still uses the original Siemens control platform.

Siemens describes the MICROMASTER 430 as a drive family for pumps and fans, while the broader family documentation also covers conveying systems, material transport, and machine-tool-related variable-speed applications, which are natural real-world environments for this board.

Why Choose This Product

When the issue affects both inverter control behavior and onboard interface handling, MC00160783G01 is more precise than a generic “inverter main board” description because it is specifically positioned as a CPU and I/O control motherboard for MM430.

That makes it especially useful for exact-reference maintenance on existing Siemens drive installations.

FAQ

Q1. What type of board is MC00160783G01?
MC00160783G01 is an inverter CPU and I/O control motherboard for the MICROMASTER 430 platform.

Q2. What does this board do in the system?
Its role is to support the inverter’s internal control logic together with I/O-side control handling.

The MM430 documentation shows the drive uses a detachable I/O-board structure, which fits this board’s control-and-interface positioning inside the inverter.

Q3. What should be checked when selecting MC00160783G01?
Confirm the exact board code, the MM430 drive family, and the full label on the installed board.

This series is often listed alongside nearby suffix variants, so the installed code should be checked carefully instead of relying on the family number alone.

Q4. How should the key specification be understood?
The key identifier is the board’s role as a CPU / I/O control motherboard for MM430.

That tells you it belongs to the drive’s internal control section, not to a removable fieldbus module or a simple operator panel accessory.

Q5. How should faults be diagnosed before replacing this board?
A practical diagnosis starts by separating terminal-side I/O faults from main control-board faults.

Siemens support references for MICROMASTER drives show that I/O-board problems can be diagnosed separately, so when the inverter’s internal control behavior is unstable beyond one interface path, the CPU/I/O motherboard becomes a more likely fault point.
