Original Siemens Mm430 Inverter/Converter Cpu Control Board /Main Board MC00160783F01 MCOO16O783FO1

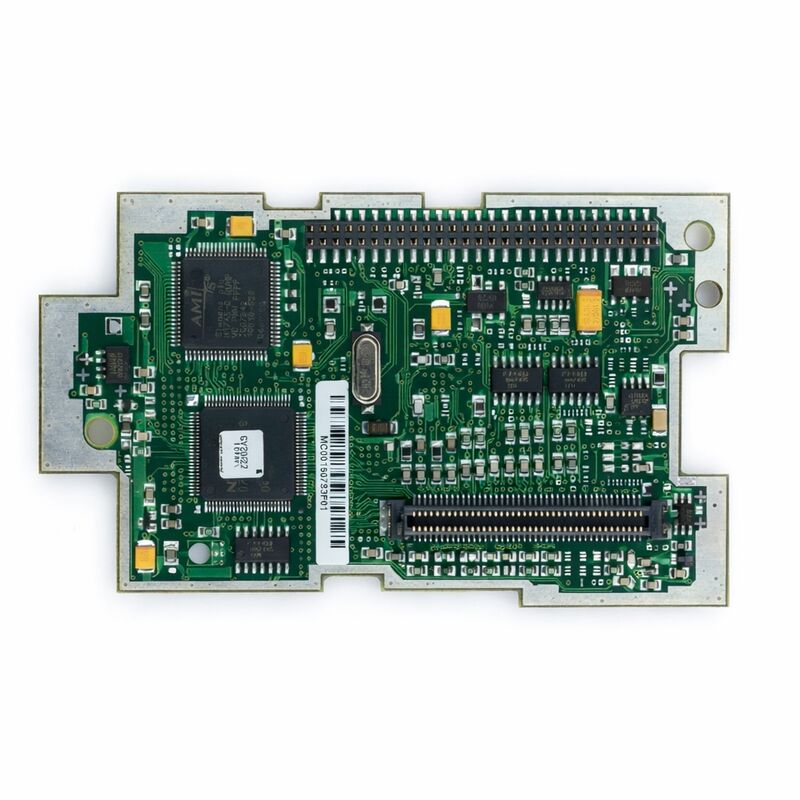

Siemens MC00160783F01 MM430 Inverter CPU Control Board

The MC00160783F01 is best positioned as a CPU control board / main control board for the Siemens MICROMASTER 430 inverter platform.

Listings for this exact part describe it as an MM430 inverter CPU control board, while Siemens’ MM430 documentation shows the drive uses a detachable I/O board and a modular internal layout, which fits the role of a central control board inside the inverter rather than a simple terminal card.

For product-page use, this board is most accurately described as the internal control PCB that supports inverter logic, operating coordination, and board-level restoration in MM430 drives.

In practical maintenance work, this kind of board is selected by exact part number and installed inverter family first, because a mismatch at the CPU board level can affect the full drive platform rather than one external interface alone.

Product Data

Application Scenarios

This board is suitable for MM430 drive repair, inverter motherboard replacement, and control-board restoration in installations that already use the same Siemens drive family. Siemens positions the MICROMASTER 430 as a drive platform for pumps and fans, and the wider MM420/430/440 family documentation also points to applications such as conveying systems, material transport, and machine tools, which makes this board relevant anywhere an MM430 inverter remains in service in those environments.

Why Choose This Product

MC00160783F01 is the right kind of spare when the installed drive already depends on the MM430 control architecture and the repair needs to stay within the original inverter platform.

A board at this level is more than a signal accessory: it belongs to the drive’s internal control structure, so exact part-number matching is far more useful than using a generic “inverter PCB” replacement path.

FAQ

Q1. What type of board is MC00160783F01?
MC00160783F01 is an inverter CPU control board used as a main control PCB in the MICROMASTER 430 drive family.

Q2. What does this board do in the system?
Its role is to support the inverter’s core control layer. Siemens documentation for MM430 shows a modular internal design with a detachable I/O board, which is consistent with MC00160783F01 functioning as a central internal control board rather than an external terminal-only module.

Q3. What should be checked when selecting MC00160783F01?
The key checks are the exact part number, the installed drive family, and whether the inverter is built on the MICROMASTER 430 platform.

At this level, family match matters as much as connector appearance.

Q4. How should the key specification be understood?
The most important identifier here is not a voltage or current rating but the board role and drive family: CPU control board for MM430.

That is the main compatibility point for board-level replacement.

Q5. How should faults be diagnosed before replacing this board?
Start by separating a main control fault from an I/O-side fault or a peripheral connection issue. Siemens support references for MICROMASTER drives note that an I/O-board fault can present separately, so if the drive’s broader internal control behavior is affected rather than only the terminal-side interface, the CPU board becomes a stronger candidate.
