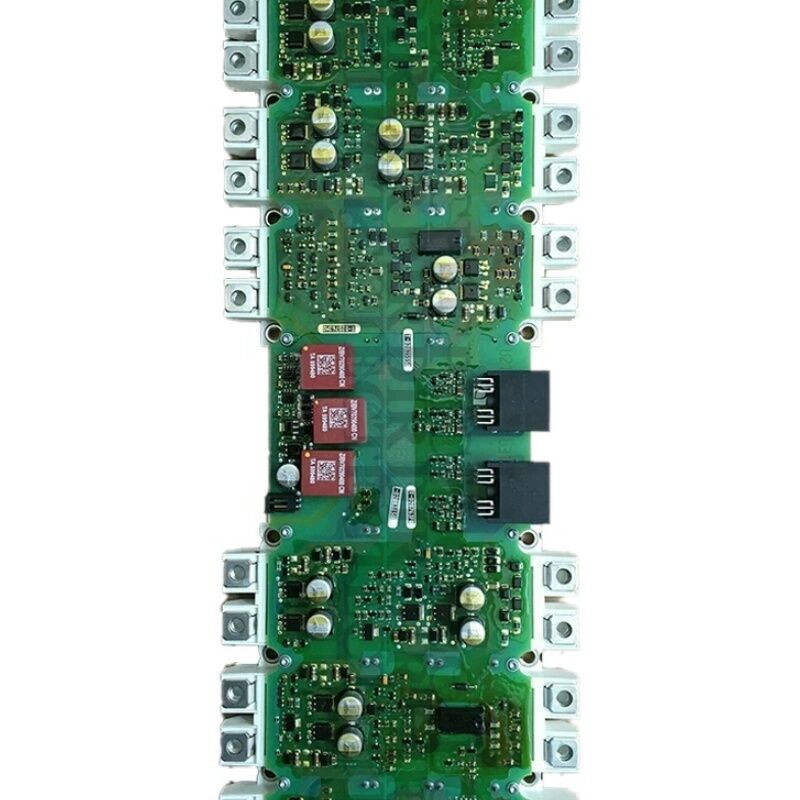

Siemens 430/440 Inverter/Converter Driver Board Igd Trigger Board A5E00121526 A5EOO121526

Siemens A5E00121526 | A5E-Series Internal Drive Circuit Board

Part Number: A5E00121526

Manufacturer: Siemens AG (Germany)

Product Type: Internal Drive Circuit Board — PCB Assembly

Product Family: Siemens A5E-Series Drive Components

Production Status: Discontinued

Overview

The A5E00121526 is a Siemens A5E-series internal circuit board for industrial drive and inverter systems. The A5E prefix is Siemens' internal component designation applied across its drive platforms — from the MICROMASTER series through SIMOVERT MASTERDRIVES and SINAMICS. Each A5E-numbered assembly performs a specific function within the drive's electronics: power supply, signal conditioning, gate drive interface, or measurement acquisition.

When a drive requires internal board replacement, the A5E number on the installed board's label is the definitive reference for sourcing the correct spare. Substituting a visually similar board with a different A5E number risks electrical incompatibility, even when the boards appear to share the same form factor.

The A5E00121526 sits in the lower numerical range of A5E drive components, placing it in the earlier production period of Siemens' drive history. Boards in this range commonly appear in SIMOVERT MASTERDRIVES, legacy SINAMICS, and MICROMASTER platforms.

With the part discontinued, the specialist industrial aftermarket — repair companies holding tested exchange stock — is the primary sourcing channel.

Key Specifications

Identification and Sourcing

Confirm the A5E00121526 number directly from the installed board's label before ordering. The A5E number encodes the board's specific circuit design, component specification, and production revision — all of which must match for a replacement to function correctly.

Specialist drive repair companies often hold A5E-series boards in tested exchange stock. Some also offer component-level repair of the original board when failure is localised to identifiable components — a practical alternative when replacement boards are in limited supply.

ESD Handling

All A5E-series PCB assemblies contain ESD-sensitive devices. Handle only with a grounded wrist strap on a conductive surface. Transport and store in metallised anti-static packaging. Avoid contact with synthetic clothing or ungrounded plastic surfaces at all stages — receiving inspection, storage, and installation.

FAQ

Q1: How is the A5E00121526 identified as the correct board for a specific drive?

Cross-reference the A5E number on the installed board's label against the drive's internal spare parts documentation. The label number is the definitive reference — do not rely on visual similarity. Siemens' industry support portal provides spare parts lists for most drive platforms, cross-linked to board A5E numbers.

Q2: The A5E00121526 is discontinued. Where is it sourced?

The specialist industrial drive aftermarket is the primary source. Reputable spare parts dealers hold tested exchange stock, and some offer board-level repair services. Request functional test documentation when sourcing from the aftermarket.

Q3: Can the drive operate without the A5E00121526 installed?

This depends on the board's function in the specific drive architecture. Boards serving core signal paths — power supply, current measurement, gate drive — are essential for operation. Confirm the board's function from the drive's schematic before assuming operation is possible without it.

Q4: Is parameter reconfiguration required after replacing the A5E00121526?

A5E-series circuit boards do not store drive parameters. Parameters reside on the drive's main control board or CompactFlash card. Board replacement does not require parameter re-entry; the drive reads its configuration normally after the new board is installed.

Q5: What storage conditions apply to the A5E00121526 held as a spare?

Store in metallised anti-static packaging in a dry environment, away from temperature extremes. Keep storage temperature between −25°C and +70°C with no condensation. Label clearly with the A5E number and removal date. Inspect visually for corrosion before installation if storage exceeds two years.
