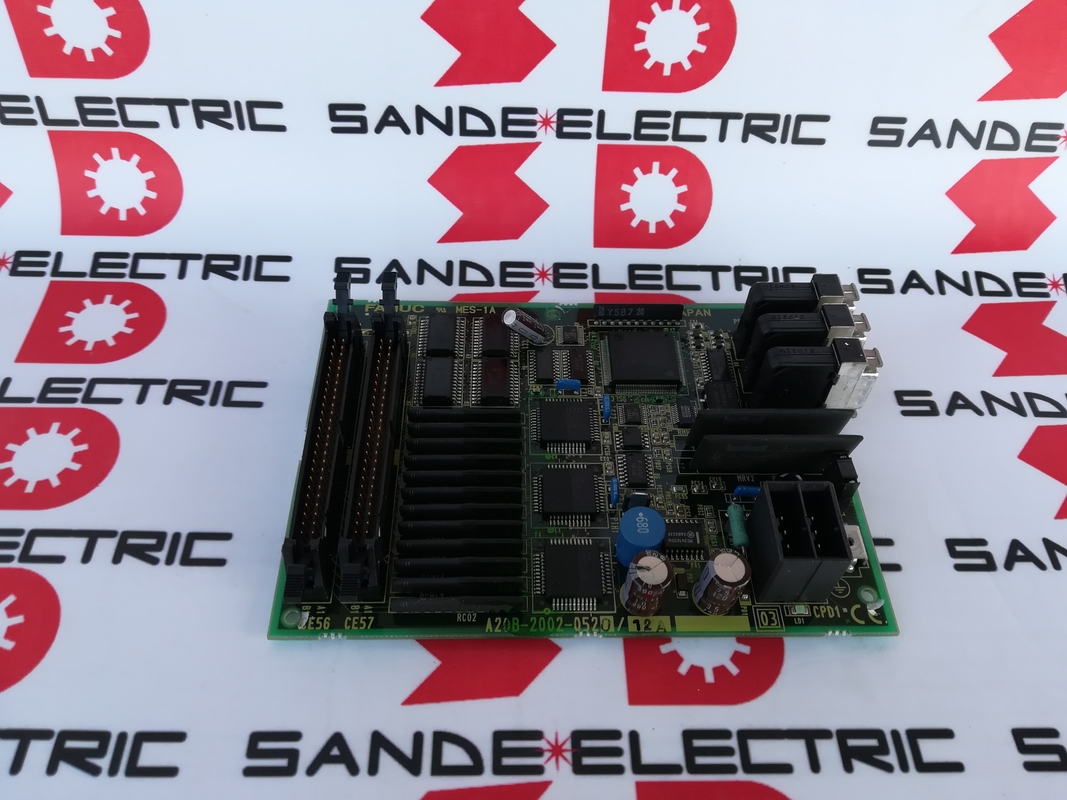

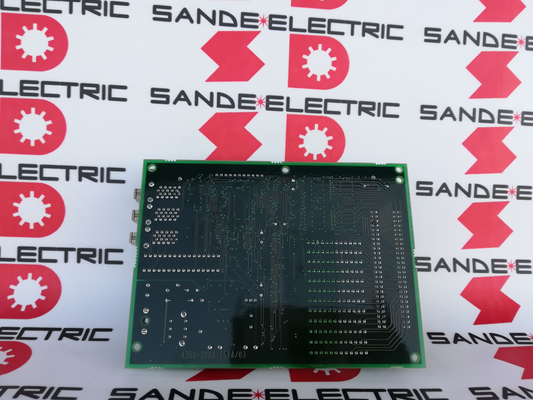

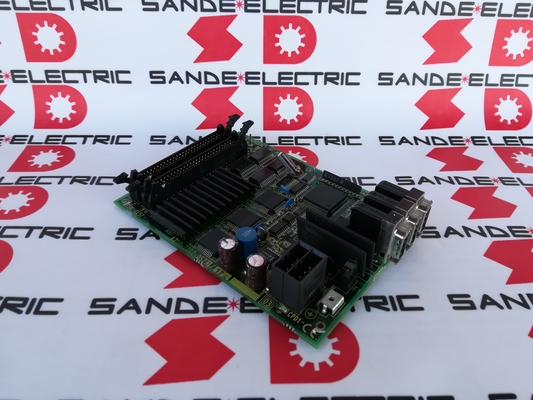

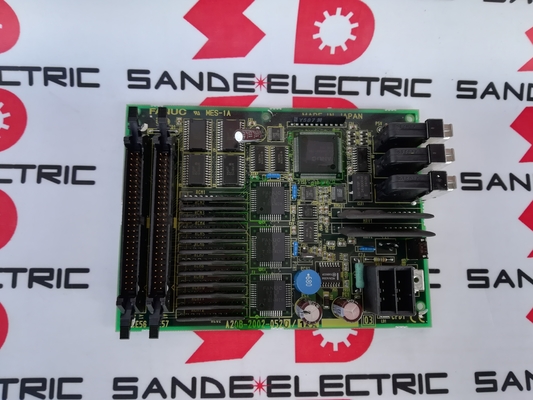

1PC Used GE Fanuc Driver Board A20B-2002-0520 In Good Condition A20B20020520 A2OB-2OO2-O52O

A20B-2002-0520 | FANUC Series 16i / 18i Operator Panel I/O PCB — 48 DI / 32 DO / MPG Interface / Operator Panel Board

Operator Panel I/O — What This Board Connects

Every CNC machine has an operator panel — the hardware interface between the machine operator and the CNC. The operator panel carries:

Inputs (DI = 48): Pushbuttons (cycle start, feed hold, emergency stop), mode selector switches (auto, MDI, jog, handle), override rotary switches (feedrate, rapid, spindle speed), axis jog directional buttons, and function-specific keys assigned by the machine tool builder.

Outputs (DO = 32): Panel indicator lamps, operational status lights (spindle on, coolant on, feed hold active, alarm indicator), mode feedback illumination, and any other machine status signals driven to visible indicators on the operator station.

The A20B-2002-0520 reads all 48 switch inputs and drives all 32 lamp/indicator outputs simultaneously, forming the complete electrical interface between the operator's physical controls and the CNC's PMC ladder logic.

Key Specifications

A20B-2002-0520 vs A20B-2002-0521 — The MPG Distinction

The 0521 variant is the version without the MPG interface. Both boards provide the same 48 DI / 32 DO I/O capacity for the operator panel. The difference is one feature:

A20B-2002-0520: More fully populated PCB — includes the MPG connector and its associated interface circuitry. The correct board for operator panels where an electronic handwheel connects to the CNC.

A20B-2002-0521: Less populated — the MPG connector section is absent. Used when no MPG is fitted to the machine's operator panel, or when the MPG connects through a separate interface rather than through the operator panel I/O board.

Fitting an A20B-2002-0521 in a machine that uses an MPG results in the handwheel not functioning — the MPG signals have no interface to connect to. Always verify which variant is installed before ordering a replacement.

Application Scenarios

Operator panel board fault on Series 18i: A machining centre with FANUC 18i control develops erratic operator panel behaviour — some pushbuttons not responding, some indicator lamps failing to illuminate as expected. The A20B-2002-0520 operator panel board is identified as the fault source. Replacement restores full operator panel I/O function.

MPG non-function after maintenance: Following maintenance on an operator panel, the electronic handwheel stops functioning. Investigation confirms the MPG connector on the A20B-2002-0520 has been damaged. Board replacement restores MPG operation.

Machine upgrade: An older operator panel with limited I/O is upgraded with a new panel design requiring 48 DI and 32 DO. The A20B-2002-0520 provides the correct I/O count with MPG support for the upgraded panel.

FAQ

Q1: How does the A20B-2002-0520 connect to the FANUC CNC system?

The A20B-2002-0520 connects to the FANUC CNC via the high-speed I/O Link — a serial communication interface that carries all operator panel input and output data between the board and the CNC's PMC. The I/O Link cable connects from the board's I/O Link connector to the CNC's I/O Link channel. The CNC's PMC ladder logic addresses the 48 inputs and 32 outputs through the I/O Link assigned addresses.

Q2: Can the A20B-2002-0520 be used with Series 16i-B or 18i-B controls, not just 16i-A?

The A20B-2002-0520 is confirmed for use across the FANUC i-series CNC family including Series 16i and 18i variants. The board communicates via the I/O Link protocol which is consistent across i-series CNC generations. Confirm the I/O Link addressing from the CNC's I/O configuration parameters to ensure the board's inputs and outputs are correctly mapped in the PMC.

Q3: What happens if more than 48 inputs or 32 outputs are needed for the operator panel?

The 48 DI / 32 DO capacity of a single A20B-2002-0520 covers most standard machine tool operator panel configurations. For larger operator panels requiring more than 48 inputs or 32 outputs, a second I/O board can be added to the system — the I/O Link supports multiple boards in a daisy-chain configuration. Each additional board adds its own DI/DO count to the system's total available operator panel I/O.

Q4: Does the MPG on A20B-2002-0520 support more than one handwheel?

The FANUC operator panel I/O board's MPG interface typically supports connection for up to three MPG (Manual Pulse Generator) units simultaneously — allowing three separate handwheels to be connected to one board. This is useful for large machine tools where handwheels are positioned at multiple operator stations or axes. The active MPG is selected via the CNC's mode settings or by operator panel switch.

Q5: What should be backed up before replacing the A20B-2002-0520?

The A20B-2002-0520 does not store CNC parameters — it is a pure I/O interface board. No specific backup is required before replacing this board. However, as a general precaution before any CNC maintenance, back up the CNC's SRAM contents (parameters, programmes, tool data) and the PMC ladder programme. After fitting the replacement board, verify all operator panel functions — pushbutton responses, indicator lamps, and handwheel operation — before returning the machine to production.
