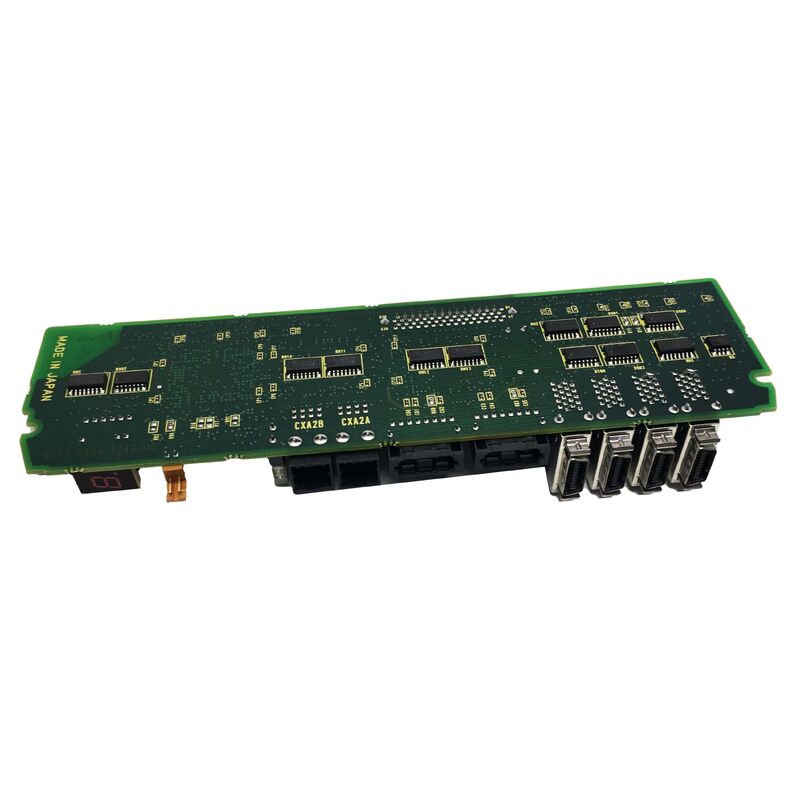

A20B-2100-0541 | FANUC Alpha SVM2 FSSB Dual-Axis Control PCB — A06B-6096-H2xx / HRV3 / LCD Display / Supersedes A20B-2100-0251

SVM2 FSSB Dual-Axis Series — Two Axes, One Module

The FANUC Alpha SVM2 (A06B-6096-H2xx) is the dual-axis servo amplifier module — controlling two independent servo axes from one 60mm-wide housing. The full SVM2 FSSB product range:

The A20B-2100-0541 is the common control PCB for all these SVM2 FSSB models — one board covers the complete dual-axis range from SVM2-3/3 to SVM2-40/40. Wiring boards differ by current rating combination; the control PCB is constant throughout.

Key Specifications

HRV3 and LCD Display

HRV3: The GE Fanuc Alpha maintenance manual specifies: "When using HRV3, use PCB A20B-2100-054X." The 054x family provides HRV3 high-speed current control — tighter servo stiffness and faster response for precision contouring applications.

LCD display: A front-face LCD shows operational status codes and alarm numbers directly at the drive module — useful in cabinets with multiple SVM2 modules for immediate fault identification without navigating CNC alarm menus.

Daito LM fuse: A self-resetting Daito LM fuse protects the 24V control supply. Before concluding the PCB has failed when a drive shows no power response, check this fuse first — a 24V wiring fault can trip it without damaging the board.

Application Scenarios

SVM2-20/20 FSSB alarm: A FANUC Alpha SVM2-20/20 (H203) develops FSSB communication alarms. The wiring board is intact. Replacing A20B-2100-0541 restores both dual-axis channels.

Multi-SVM2 cabinet spare: A machine cabinet runs multiple SVM2 modules at different current ratings. One A20B-2100-0541 spare covers any of them.

FAQ

Q1: Can A20B-2100-0541 directly replace A20B-2100-0251?

The 0251 is the earlier specification; 0541 is the current specification. For most SVM2 FSSB applications this is a direct replacement. Verify from the FANUC Alpha maintenance manual that no wiring board update is needed when fitting the updated control PCB.

Q2: Does replacing A20B-2100-0541 require servo parameter changes?

No. Servo parameters reside in the CNC's main memory. After fitting the replacement, the CNC re-establishes FSSB communication and applies existing parameters to both axes automatically.

Q3: What alarm codes does the SVM2 LCD display for IPM faults?

Axis-specific IPM alarm codes include: L-axis IPM alarm (code 8), M-axis IPM alarm (code 9), L+M IPM alarm (code b), etc. These codes are visible on the A20B-2100-0541's front LCD — identifying which of the two axes triggered the fault without consulting the CNC alarm screen.

Q4: What is the Daito LM fuse on A20B-2100-0541?

A self-resetting fuse protecting the 24V control circuit. If the drive shows no LED/LCD activity after a wiring overcurrent event, check the Daito fuse before replacing the PCB. Correct the 24V wiring fault first; the fuse resets after the fault is cleared.
