Fanuc A20B-2100-0800 PCB Board In Good Condition A20B21000800 A2OB-21OO-O8OO

FANUC A20B-2100-0800

Alpha i Spindle Module Control PCB for Type A SPMC i Drives

Product Overview

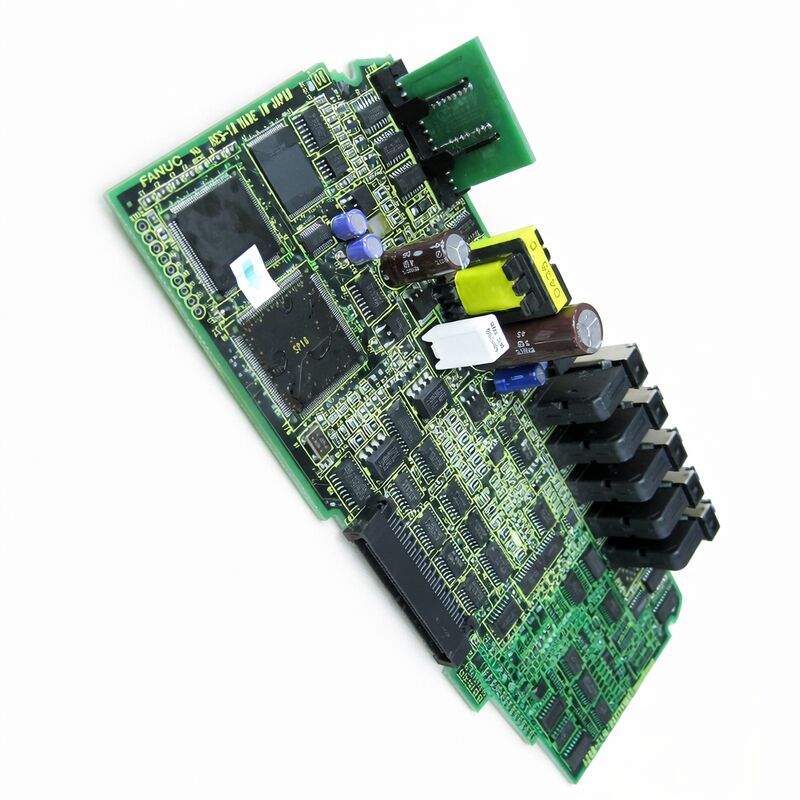

The FANUC A20B-2100-0800 is a spindle module control PCB used in the Alpha i spindle module family. It is identified as a spindle drive control board for Alpha i spindle module Type A and is associated with SPMC i series spindle amplifiers.

This places it firmly in the spindle-drive control layer, not in the main CNC processor section or the operator interface side of the machine.

This board is used in 200V Alpha i spindle module applications and is listed with a module range from 2.2 kW to 100 HVi.

In practical terms, those values describe the spindle module family it supports rather than the board’s own power draw.

For service engineers, that distinction matters because the PCB is chosen by amplifier family and type, not by generic appearance.

A board like A20B-2100-0800 is typically purchased when the spindle amplifier hardware is still worth repairing and the correct control PCB is needed to restore the original Alpha i spindle-drive structure.

That makes it a natural fit for board exchange, spindle amplifier overhaul, and long-life maintenance of installed FANUC drive systems.

Parameter Table

Applications

The A20B-2100-0800 is best suited to Alpha i spindle amplifier repair, especially where the machine uses a Type A SPMC i spindle module and the service objective is to keep the original spindle-drive architecture in place.

It is a strong fit for board-level repair, spindle module refurbishment, and maintenance inventory for FANUC machines that still rely on Alpha i spindle hardware.

It also works well in exchange repair programs, spindle-control troubleshooting, and support of 200V spindle module systems where replacing the full amplifier is unnecessary or uneconomical.

In day-to-day maintenance, the board is most useful when the fault is traced to the control section of the spindle amplifier rather than to the wider CNC or motor side.

FAQ

Q1: What kind of board is A20B-2100-0800?
It is a spindle drive control PCB for the Alpha i spindle module, specifically identified with Type A SPMC i spindle amplifier applications.

Q2: Is this board part of the spindle amplifier or the CNC main board?
It belongs to the spindle amplifier section. Its function is tied to spindle-drive control, so it should not be treated as a main CNC CPU board or a general-purpose control PCB.

Q3: What does “Type A” mean here?
In this context, Type A identifies the spindle module family the board is intended for.

It is a fit and application designation for the Alpha i spindle module, which is why exact model matching is important during service.

Q4: Do the 2.2 kW to 100 HVi figures describe the board itself?
No. Those figures describe the spindle module range the board is used with, not the PCB’s own electrical consumption.

For purchasing and repair, the more important identifiers are the part number, Alpha i spindle family, and Type A SPMC i fit.

Q5: What should be checked before replacing this board?
Confirm the exact board number, verify the spindle amplifier family and type, inspect the connector area and surrounding amplifier hardware, and make sure the fault is actually in the control board rather than in the power section or external spindle circuit.
