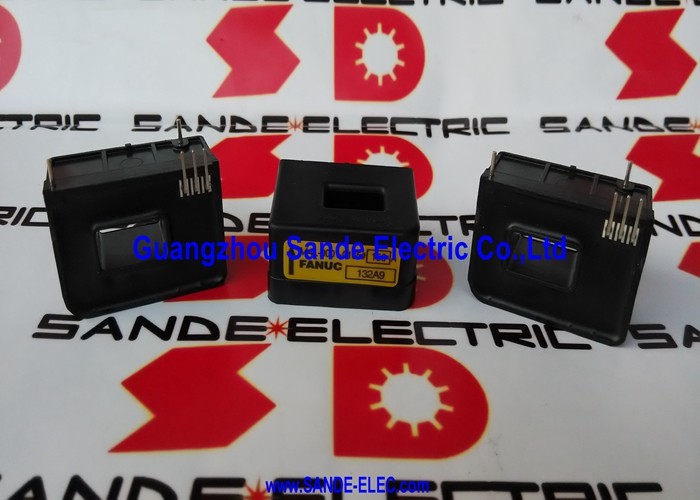

Fanuc IC A20B-2902-0130 A2OB-29O2-O13O A20B29020130

FANUC A20B-2902-0130 | Hybrid Integrated Circuit — ZIP-16 Encapsulation / A20B-2902 Series

Hybrid ICs in FANUC CNC and Drive Systems

The A20B-2902-0130 is a hybrid integrated circuit in ZIP-16 (Zigzag In-line Package, 16-pin) encapsulation from FANUC's A20B-2902 series. A hybrid integrated circuit is a distinct class of electronic component — not a standard IC, not a discrete component, but a miniaturised assembly where multiple components (resistors, capacitors, transistors, diodes, ICs) are integrated onto a substrate inside a single sealed package.

FANUC used hybrid circuits throughout their CNC and servo drive hardware to integrate proprietary, compact, and reliable sub-circuits in a form factor that could be produced and tested as a unit. The ZIP-16 package format places 16 leads in a zigzag arrangement along both sides of the package body, allowing the hybrid to mount directly into a 16-pin ZIF socket or through-hole position on a PCB.

When a hybrid circuit fails inside a FANUC PCB, the fault is typically difficult to diagnose further — the hybrid's internal components are encapsulated and inaccessible. A failed hybrid is identified by eliminating surrounding components, confirming the relevant functional block is not responding, and then confirming the result by fitting a replacement hybrid. Because hybrids are proprietary FANUC components, replacement sourcing is exclusively through the FANUC spare parts aftermarket.

Key Specifications

Handling and Identification

The A20B-2902-0130 hybrid must be handled with ESD precautions — anti-static wrist strap, conductive work surface, and anti-static packaging for storage. The proprietary hybrid's internal circuitry is sensitive to electrostatic discharge through the exposed leads.

When fitting a replacement hybrid, confirm that the PIN 1 orientation of the new component matches the socket's orientation marking on the PCB. Hybrid circuits in ZIP format can be physically reversed — an incorrectly oriented hybrid may be damaged or may damage surrounding circuitry at power-on.

The A20B-2902 series spans memory modules and specialised function components. Adjacent part numbers within the series serve entirely different functions. Confirm A20B-2902-0130 specifically from the failed component's own marking before ordering — do not substitute based on physical appearance or package type alone.

FAQ

Q1: What is a hybrid integrated circuit and how does it differ from a standard IC?

A standard IC integrates transistors and passive elements on a single silicon chip using semiconductor manufacturing processes. A hybrid IC integrates multiple separate components — discrete chips, resistors, capacitors — onto a ceramic or insulating substrate, then encapsulates the entire assembly. Hybrids allow component combinations that cannot be fabricated as standard ICs, and are sealed in a tested, replaceable package. FANUC's A20B-2902-0130 is one such hybrid — a proprietary assembly designed for a specific function within FANUC's control or drive hardware.

Q2: What ZIP-16 socket is compatible with the A20B-2902-0130?

ZIP-16 components mount in 16-pin zigzag sockets or directly into through-hole PCB positions with the correct pin spacing for ZIP packaging. Confirm the existing socket type in the PCB before fitting the replacement — some ZIP sockets are ZIF (zero-insertion-force) type, which requires the lever to be raised before insertion. Forcing a ZIP component into a locked ZIF socket bends or breaks leads.

Q3: Can the A20B-2902-0130 be repaired internally?

No. The hybrid's internal components are permanently encapsulated inside the ZIP-16 package. There is no practical access to the internal circuitry without destroying the package. A20B-2902-0130 failures require replacement with an equivalent hybrid unit, not internal component-level repair.

Q4: How is the A20B-2902-0130 identified as the failed component on a PCB?

Hybrid failure typically manifests as a functional block in the associated circuit becoming inoperative. The fault is located to the hybrid by functional testing of the circuit block — confirming the expected input/output relationship for that circuit is absent — and then confirming by substitution. Visual inspection of the hybrid package may reveal cracking, burning, or discolouration in severe failure cases, but many hybrid failures produce no visible external signs.

Q5: Where is the A20B-2902-0130 sourced?

Through the FANUC component-level spare parts aftermarket — FANUC board repair specialists and component dealers with FANUC hybrid stock. Hybrid circuits are low-volume, high-specificity spares — stock may be limited. Confirm A20B-2902-0130 from the component's own marking before ordering. The A20B-2902 series contains many different component types across memory modules and hybrid ICs.
