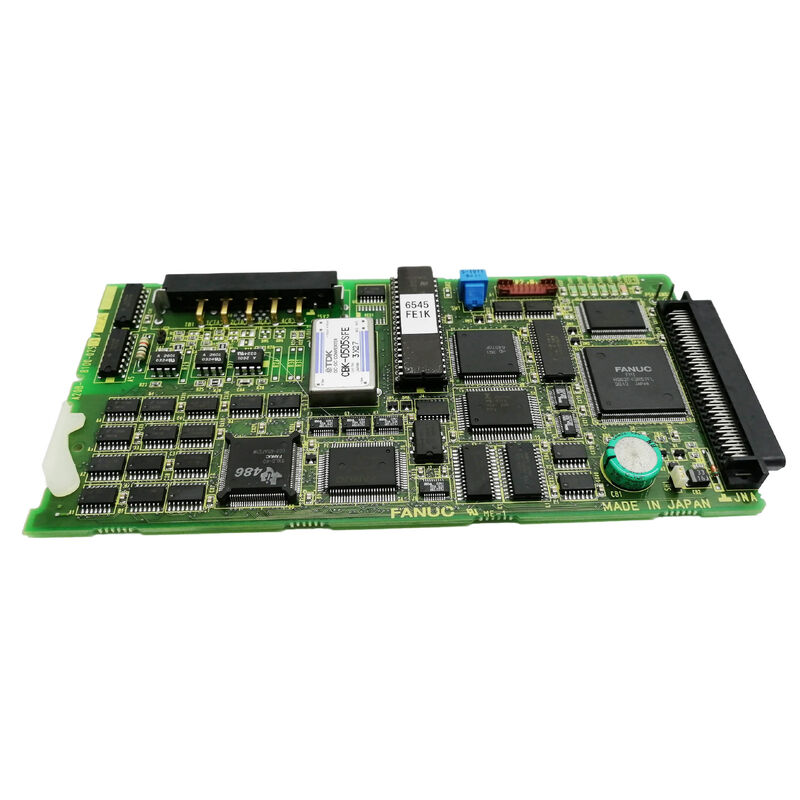

FANUC A20B-8100-0462 | Main CPU PCB, 210i-A — LCD-Mounted, Japan Origin, Discontinued

Part Number: A20B-8100-0462

Manufacturer: FANUC Corporation (Japan)

Product Type: Main CPU PCB (LCD-Mounted Main Board)

Compatible System: FANUC Series 210i-A CNC

Status: Discontinued by Manufacturer

Overview

The A20B-8100-0462 is the LCD-mounted main CPU PCB for FANUC Series 210i-A CNC systems. In the A20B-8100 series, the main CPU board is the controller's computational core.

It houses the central processor, manages communication between all subsystems, and integrates the interface to the LCD panel directly on the board — an integrated design that reduces cabling complexity and puts the CNC's processing power and display interface on a single assembly.

FANUC's 210i-A belongs to the high-performance end of the i-series CNC family. Related to the 160i/180i line, the 210i designation covers controllers designed for demanding multi-axis applications.

Open CNC architecture on these platforms integrates standard PC processing with FANUC's motion control capability, enabling complex operator interfaces, network connectivity, and expanded data management functions alongside precise axis and spindle control.

The A20B-8100-0462 is discontinued. It is no longer produced by FANUC.

Machines running Series 210i-A controls that need this board must source it from surplus or refurbished inventory.

These machines are still running in production environments globally — the demand for this board is driven by operating equipment, not historical interest.

Key Specifications

LCD-Mounted Architecture

The A20B-8100-0462 is not a rack-mounted board in the traditional CNC sense. It mounts within the LCD/MDI unit — the operator panel assembly.

This places the CNC's main CPU directly behind the display screen.

The processing hardware and the operator interface are one integrated unit. Cable runs between the operator panel and a separate CNC rack are reduced significantly.

This architecture was a design direction FANUC pursued across the i-series generation. Integrating the main CPU with the LCD assembly makes the controller more compact and simplifies installation in machine tool cabinets.

It also means that replacing the main CPU board requires working within the LCD unit rather than in a separate electronics cabinet.

When the A20B-8100-0462 fails, the LCD/MDI assembly stops functioning as a complete unit.

The display may go dark, the CNC may not boot, or specific functions may become unavailable depending on the nature of the fault. In all cases, the path to repair involves this board.

Series 210i-A Platform

The 210i-A is a capable CNC platform built for high-axis-count and high-option configurations.

Open CNC features on this generation allow Windows-based software to run alongside FANUC's motion control kernel — operator HMIs, DNC systems, and custom machine-builder applications share the same hardware as the core CNC.

The main CPU board carries this dual-environment processing load.

It must handle CNC real-time tasks — servo position loops, interpolation, PMC execution — without compromise, while simultaneously supporting the PC-side functions.

The A20B-8100-0462 was designed for exactly this environment.

Replacing this board requires restoring the CNC software environment.

FROM module contents, CNC parameters, and PC-side software configuration all need attention after installation. The FROM module that plugs into the main board is a separate component — verify its contents are current and compatible before powering up after a board replacement.

Sourcing and Condition

Because this board is discontinued, the available supply is finite and shrinks over time. Boards in good condition, with documented repair history or verified test status, are worth prioritising over unknown-condition units offered without any service information.

The A20B-8100 series was used across multiple FANUC CNC generations with different suffix numbers for different models.

Do not substitute a board from a different model — even one that looks identical — without confirming compatibility.

The 210i-A has specific hardware requirements that are not necessarily met by boards from the 160i-A or 180i-A families, despite the families' close relationship.

FAQ

Q1: The 210i-A CNC will not boot. The LCD is completely dark. Is the A20B-8100-0462 likely at fault?

A completely dark LCD on power-up can indicate a failed main CPU board, a failed LCD backlight or inverter, or a power supply fault upstream of the board.

Check the operator panel power LED first.

If power is reaching the panel but the LCD remains dark and the CNC does not boot, the main CPU board becomes the primary suspect.

A board that has visible burn marks or component damage confirms the diagnosis.

Q2: After replacing the A20B-8100-0462, what is the correct startup sequence?

Boot the controller into the BOOT screen (hold appropriate keys during power-up — procedure is model-specific). Verify the FROM module is correctly installed and readable. Load or confirm system software. Exit BOOT, then restore CNC parameters and programs.

If Open CNC PC functions are configured, verify those settings separately. Run axes in JOG mode to confirm servo response before returning the machine to automatic operation.

Q3: The FROM module appears to be intact. Do FROM contents survive a main CPU board replacement?

Yes. The FROM module is a separate physical component that plugs into the main board. It retains its contents independently of the main CPU board's condition.

If the FROM module is intact and its contents are uncorrupted, the software it holds loads normally after the board is replaced.

Verify FROM module seating carefully after installing the new main board — poor contact causes read errors that can look like corruption.

Q4: Is the A20B-8100-0462 the same board as those used in FANUC 160i-A or 180i-A systems?

No. The 210i-A uses a specific main CPU board. Related i-series models share the same A20B-8100 board family but use different suffix numbers.

The 160i-A, 180i-A, and 210i-A have distinct hardware requirements despite their architectural similarities. Install only the correct part number for the 210i-A system.

Q5: Can the A20B-8100-0462 be repaired rather than replaced?

Component-level repair is viable in many cases. Common faults include failed electrolytic capacitors (particularly common in boards that have been in service for many years), damaged battery circuits, and corrupted firmware memory.

Boards with physical damage from power surges or arcing events may not be viable repair candidates.

A qualified repair centre with FANUC i-series experience can assess repairability after inspection.
