FANUC A02B-0283-B500 | Series 18i-MB CNC Operator Interface — LCD Display / I/O Link / 1024–2048 I/O Points

Series 18i-MB Operator Interface — LCD, I/O Link, and Full CNC Integration

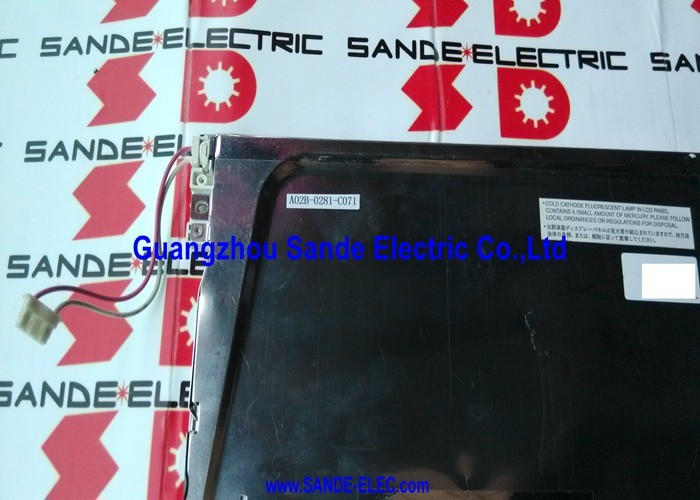

The A02B-0283-B500 is the operator interface unit for FANUC's Series 18i-MODEL B CNC — the hardware through which the machine operator interacts with the 18i-MB CNC system. It integrates an LCD display panel with the CNC control electronics, providing the operator screen, keyboard, and system-level I/O connections in a single unit.

The FANUC Series 18i is a high-performance CNC generation for complex machining applications — mill-turn centres, multi-axis machining, and precision manufacturing where the 18i's multi-axis capability and advanced interpolation functions are required. The B designation (MODEL B) identifies the later, more capable hardware generation within the 18i family. The A02B-0283 series covers this 18i-B generation system unit hardware.

Two FANUC I/O Link channels provide the communication interface to machine-side I/O — connecting the CNC to I/O units, operator panels, safety circuits, and peripheral device interfaces distributed around the machine. The 1024-point base I/O configuration covers standard machining centre automation requirements; expansion to 2048 points accommodates complex machine tool applications with high I/O counts.

Key Specifications

Replacement Notes — Parameter and Programme Reload Required

Replacing the A02B-0283-B500 requires a full reload of all CNC parameters, tool offset data, and part programmes from backup. The replacement unit arrives without the machine-specific configuration — all system data must be restored before the machine returns to production. A current, complete backup of all CNC data is mandatory before starting any operator interface replacement on a Series 18i-MB machine.

The A02B-0283 series covers the 18i-MB generation. The closely related A02B-0281 series covers the 16i/18i-A generation. These series are not interchangeable — confirm the installed CNC generation from the machine documentation before ordering.

FAQ

Q1: What CNC series is the A02B-0283-B500 compatible with?

The A02B-0283-B500 is designed for FANUC Series 18i-MODEL B (18i-MB) CNC systems. The A02B-0283 series covers the 18i-B hardware generation. It is not directly compatible with earlier 18i-A units (A02B-0281 or A02B-0282 series) or later 18i-C units without verifying hardware interface compatibility.

Q2: What does the I/O Link interface connect to in the machine?

The two FANUC I/O Link channels connect the CNC to the machine's I/O network — I/O unit modules distributed around the machine for operator panel I/O, machine door switches, coolant and hydraulic controls, ATC sequences, and other machine-side discrete signals. The I/O Link serial bus carries these signals over relatively simple wiring from the CNC to the I/O units.

Q3: Is the LCD display replaceable separately from the operator interface unit?

On the A02B-0283-B500 integrated unit, the display panel is part of the combined operator interface assembly. Individual component replacement availability depends on specific fault diagnosis and FANUC service parts availability. For display faults specifically, confirm with a FANUC-authorised service centre whether the display sub-assembly can be replaced independently or whether the complete operator interface requires replacement.

Q4: Must all machine parameters be reloaded after replacing the A02B-0283-B500?

Yes. The replacement unit contains no machine-specific configuration. All CNC parameters (servo parameters, spindle parameters, machine parameter settings), tool offset data, and part programme library must be restored from backup. A complete backup taken before the fault condition developed is essential. Without a backup, parameters must be rebuilt from machine documentation.

Q5: What is the relationship between adjacent A02B-0283 variants (B500, B502, B503)?

Within the A02B-0283 series, different suffix variants (B500, B502, B503, etc.) differ in CNC configuration — axis count, option packages, spindle control configuration, and software options. The B500 is the base operator interface unit. Other suffixes add specific configuration options for the 18i-MB system. Confirm the specific installed variant from the unit's label before ordering a replacement.
