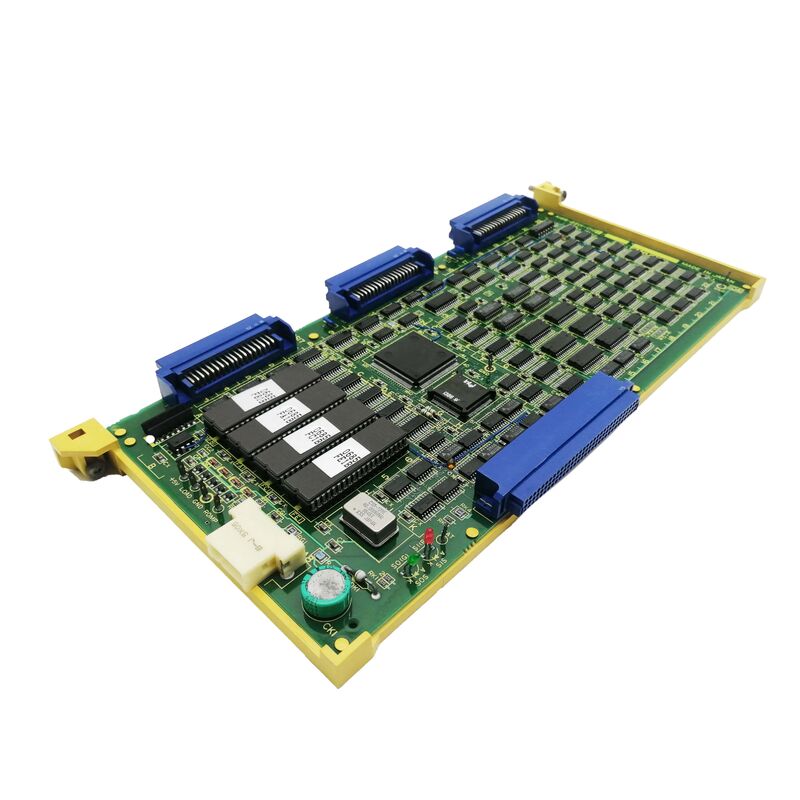

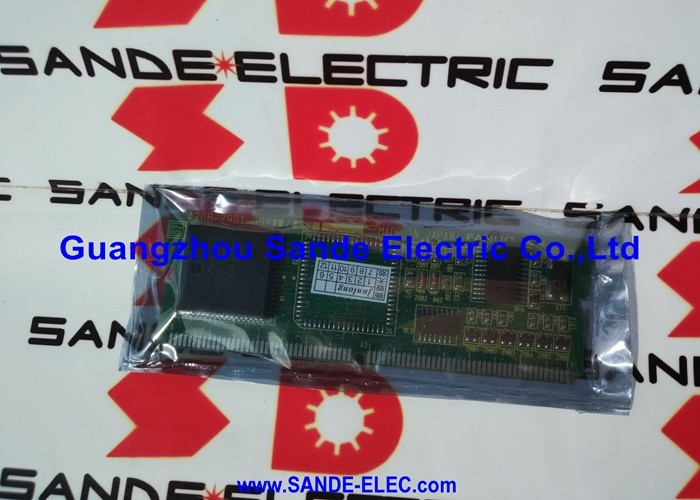

Fanuc Control Module A16B-2201-0351 A16B22010351 A16B-22O1-O351

A16B-2201-0351 | FANUC Series 15-B Multi Axis Buffer PCB — Sub CPU / Max Sub-B / Multi-Axis Control / Synchronous Control / Series 15-B

Sub CPU Architecture in Series 15-B — Why a Second Processor?

The FANUC Series 15-B is designed for the most demanding multi-axis machine tools — transfer lines, large multi-spindle machining centres, and flexible manufacturing systems where axis count reaches 8, 12, or more. Managing this many axes simultaneously taxes the main CPU's real-time budget.

The Series 15-B addresses this through a sub CPU architecture: the main CPU handles the primary CNC functions (programme interpolation, user interface, communication), while a dedicated sub CPU board handles the expanded axis control and synchronous functions. The A16B-2201-0351 is this sub CPU board — the "Max Sub-B" designation indicating it carries the maximum capability available in the sub CPU option for the Series 15-B.

Key Product Information

Max Sub-B — The Highest Sub CPU Specification

Within the Series 15-B sub CPU board family, several variants provide different capability levels:

• A16B-2201-0310 (Sub-A, High-speed): High-speed sub CPU for applications requiring fast axis response
• A16B-2201-0331: Specifically for multiaxis control, synchronous control, and malfunction check
• A16B-2201-0351 (Max Sub-B): The maximum-specification sub CPU board, providing the full multi-axis, synchronous, and malfunction check capability set

The "Max" designation for the A16B-2201-0351 indicates it carries the maximum feature set within the Sub-B class — suitable for the most demanding Series 15-B configurations.

Application Scenarios

Large machining centre sub CPU fault: A Series 15-B multi-axis machining centre with 12 controlled axes develops an alarm related to the sub CPU board. Axes 5–12 are unavailable. The A16B-2201-0351 is identified as the failed board. Replacement restores the full multi-axis operation.

Synchronous axis control fault: A gantry-type machine with synchronised gantry axes develops a synchronous control alarm. The synchronous functions provided by the A16B-2201-0351 are disrupted. Board replacement restores the synchronous axis pair's coordinated movement.

FAQ

Q1: What is the difference between A16B-2201-0351 (Max Sub-B) and A16B-2201-0331?

Both boards provide multi-axis control, synchronous control, and malfunction check functions for the Series 15-B. The A16B-2201-0351 is designated "Max Sub-B" indicating higher capability or additional processing resources compared to the A16B-2201-0331. Confirm from the FANUC Series 15-B hardware documentation which sub CPU variant is required for the specific system axis configuration.

Q2: Does replacing A16B-2201-0351 require re-setting axis parameters?

Multi-axis and synchronous axis parameters are stored in the CNC's main parameter memory, not in the sub CPU board. Replacing the A16B-2201-0351 does not erase axis parameters. After fitting the replacement, the CNC re-establishes communication with the sub CPU board and applies the existing axis configuration. Verify all axis functions including synchronous pair behaviour after replacement.

Q3: What CNC alarms indicate the A16B-2201-0351 has failed rather than an axis drive fault?

Sub CPU board faults typically generate alarms that affect multiple axes simultaneously — specifically the axes beyond the main CPU's native capacity. If axes 1–4 operate normally but axes 5+ all alarm together, the sub CPU board is a primary suspect. Single-axis alarms (one axis out of a set) more commonly point to the servo drive or motor for that specific axis rather than the sub CPU.

Q4: Is the A16B-2201-0351 compatible with Series 15-A or Series 15-C CNC systems?

The A16B-2201-0351 is confirmed for the Series 15-B. The Series 15-A uses different sub CPU board hardware (such as A16B-2200-0081 for add-on axis functions). The Series 15-C (if applicable) has its own hardware generation. Always specify the exact Series 15 model (15-A, 15-B, 15-C) when sourcing this board.

Q5: What data backup is required before replacing A16B-2201-0351?

As with any CNC main unit board maintenance, perform a full backup before replacement — all CNC parameters (including axis-specific and synchronous axis parameters), all part programmes, tool data, work offset data, and PMC ladder programme. The sub CPU board itself does not store programme data, but the backup ensures recovery if any other issue occurs during the board replacement process.
