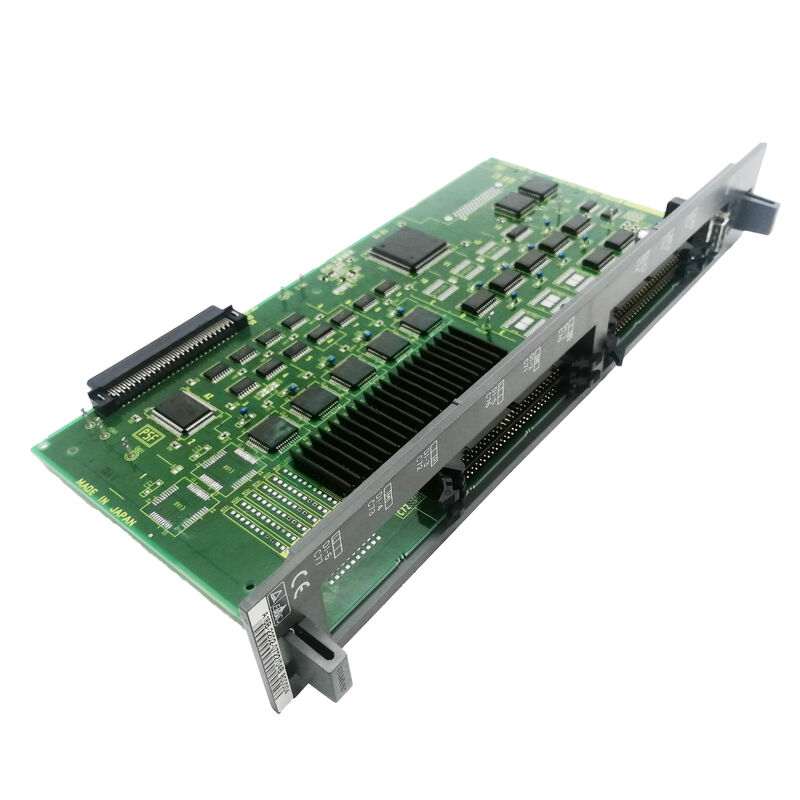

A16B-2202-0435 | FANUC Alpha SPM Control Card — A06B-6088 Series / SPM-15 to SPM-55 / 043x Control Card Family

A06B-6088 — The Core Alpha SPM Series

The A06B-6088 is FANUC's foundational Alpha series Spindle Power Module family — the spindle amplifier series found on thousands of CNC machine tools built during the Alpha era. Its six power ratings cover a wide spindle motor range:

All modules in this range use the same control card. The A16B-2202-0435 — in the 043x control card family — is one of the valid control cards for these modules.

Key Product Information

Software and Motor Compatibility

CNC Electronics notes the A06B-6088 SPM series modules come with "#H50x suffix which denote different software: namely #H500, #H501 and #H508." These software variants determine which spindle motor family the module can drive:

• H500: Standard motor compatibility
• H501: Extended or alternative motor compatibility
• H508: Additional motor variants

When sourcing A16B-2202-0435, confirm from the installed spindle module's nameplate which #H50x software version is fitted, and confirm the replacement board carries compatible software.

Application Scenarios

SPM-22 spindle module control card fault: A FANUC Alpha SPM-22 (A06B-6088-H222) develops spindle speed regulation failure — the spindle runs but at incorrect speed without responding to CNC commands. The A16B-2202-0435 control card is identified as the fault. Replacement with a matching software version restores speed regulation.

SPM-30 control card replacement: A large machining centre's 30kW spindle module requires a control card. The A16B-2202-0435 serves the SPM-30 (A06B-6088-H230) in the same way as smaller SPM ratings — the same control card handles the 30kW module.

FAQ

Q1: Is A16B-2202-0435 directly interchangeable with A16B-2202-0432?

Both are in the A16B-2202-043x family and serve the A06B-6088 SPM series control card position. However, the specific software version on each board may differ — and software version determines motor compatibility. Before replacing A16B-2202-0432 with A16B-2202-0435 (or vice versa), confirm both boards carry the same software variant (#H500, #H501, or #H508) as the installed spindle module.

Q2: What internal boards are inside a typical A06B-6088 SPM module alongside A16B-2202-0435?

A typical A06B-6088 SPM module contains:

• Control card: A16B-2202-043x (or A16B-2203-033x) — this board
• Power PCB/base board: A20B-1006-0480 through A20B-1006-0690 (varies by power rating)
• Firing board: A20B-2902-039x (IGBT gate drive)
• Additional signal board: A16B-2203-0332 in some configurations

Q3: What CNC spindle alarm codes indicate the A16B-2202-0435 control card has failed?

Spindle alarms SP07 (speed deviation), SP08 (serial spindle communication error), SP24/SP25 (IPM alarm from incorrect gate drive commands), and SP30/SP41 (speed error) can originate from control card faults. Eliminate external causes (motor, encoder, wiring) before concluding the control card has failed.

Q4: Does replacing A16B-2202-0435 require any parameter changes?

No. Spindle parameters are stored in the CNC's main memory. After fitting the replacement control card, the CNC reloads spindle parameters automatically through the serial spindle bus link. Verify spindle speed accuracy and run orientation if the machine uses spindle orientation before returning to production.

Q5: What does "Type 1" interface mean for the A06B-6088 SPM series?

Type 1 uses standard M-sensor and position coder feedback from the spindle motor. This contrasts with "Type 2" (A06B-6088-H3xx series) which is a later firmware generation with different motor software but the same hardware family.
