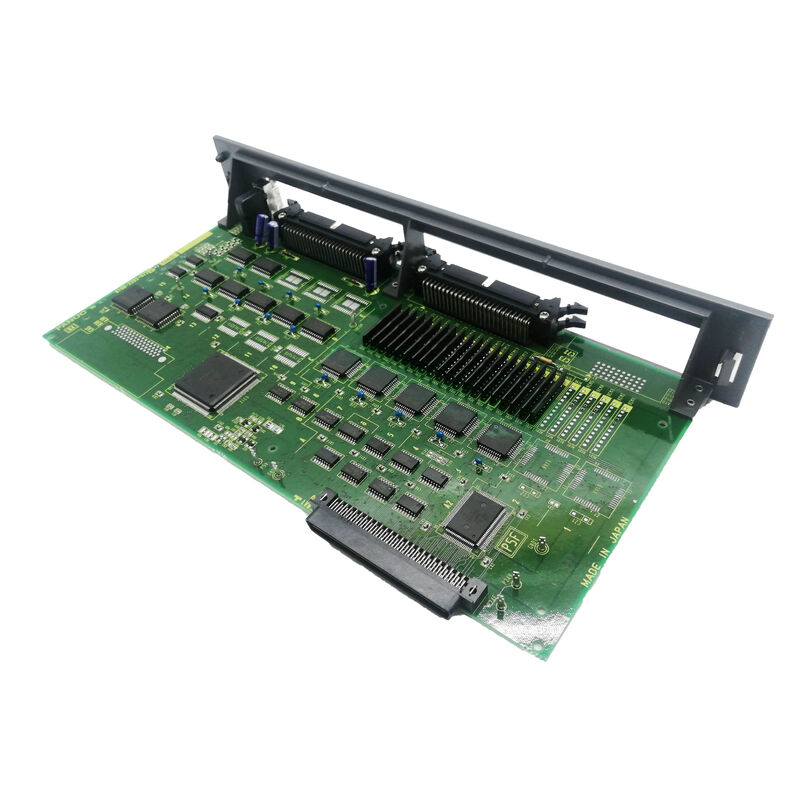

A16B-2202-0471 | FANUC A16B-2202 Series Drive PCB — Alpha Series CNC Drive Systems / Industrial Automation Spare

A16B-2202 — Core Drive PCB Series

The A16B-2202 series is FANUC's primary family of drive-related printed circuit boards for the Alpha (αi) CNC drive generation. This series covers servo and spindle amplifier boards across multiple drive module families:

Spindle control cards (04xx range): Including A16B-2202-0421 (PSM control PCB), A16B-2202-0431/0432/0435 (Alpha SPM 6088 series control cards for spindle amplifier modules), all confirmed in this session.

Servo wiring boards (07xx range): Including A16B-2202-0740–0743 (Alpha-i SVM1 FSSB wiring boards), A16B-2202-0750–0753 (Alpha SVM2 Type A/B wiring boards) — the complete wiring board family for single-axis and dual-axis servo amplifier modules.

SVM1 wiring boards (07xx range): A16B-2202-0760–0762 (Alpha SVM1-40S, SVM1-40L, SVM1-80 wiring boards for Type A/B interface), also confirmed in this session.

Larger SVM1 wiring boards: A16B-2202-0790/0991 (for SVM1-240 and SVM1-360 of the Alpha Type A/B series).

The A16B-2202-0471 is one specific board within this comprehensive Alpha drive PCB family — serving the function defined by its specific part number in the applicable drive module.

Key Product Information

Alpha Series — The Foundation of a Generation

The Alpha series (both Alpha and Alpha-i) powered FANUC CNC machine tools through a productive era of manufacturing. Alpha series drives appear in:

Machining centres: X, Y, Z servo axes and main spindle, with the servo and spindle drives sharing the same drive cabinet and drawing from the same PSM DC bus.

Turning centres: One or two servo axes plus a spindle — often configured with one Alpha PSM and two SVM modules alongside an SPM.

Grinding machines: Precision servo axes where the Alpha drive's current control performance supports the high servo stiffness needed for grinding depth precision.

Large machining systems: Multi-axis configurations with multiple SVM2 modules and a high-power SPM, all coordinated from one Alpha cabinet.

The A16B-2202 series PCBs are the internal electronics that make these drive systems function — the A16B-2202-0471 contributes to this infrastructure in its specific role.

Application Scenarios

Alpha drive module PCB fault: A FANUC CNC drive system develops a fault traceable to the A16B-2202-0471 board. The board is identified from its label inside the drive module. Replacement restores the drive's function.

Drive module refurbishment: A specialist CNC service workshop overhauling an Alpha series drive module replaces the A16B-2202-0471 as part of a comprehensive internal board renewal.
