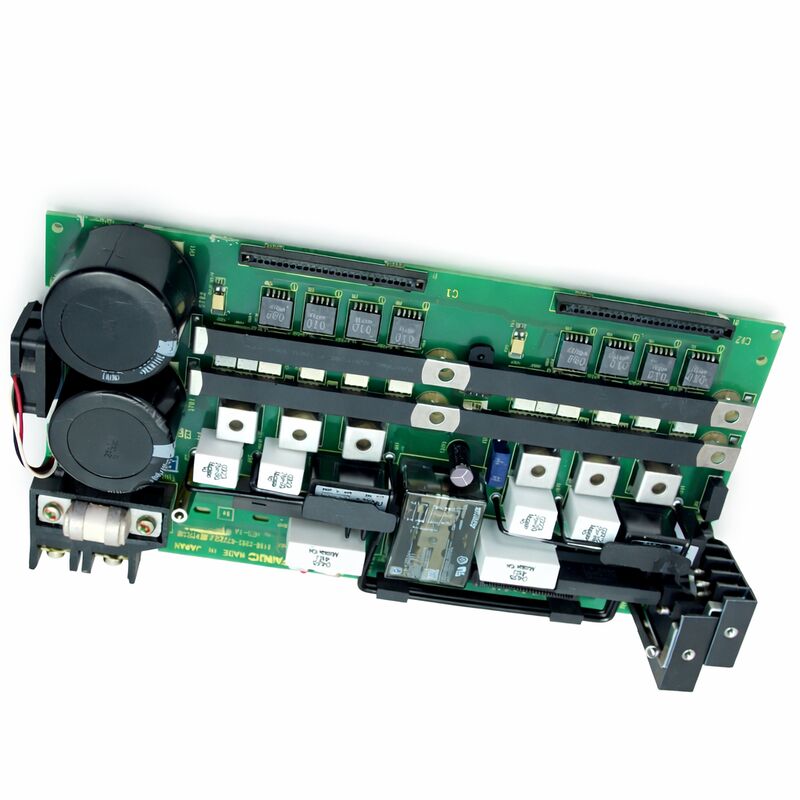

Part Number: A16B-2202-0721

Manufacturer: FANUC Corporation (Japan)

Product Type: I/O PCB — Source Type, 104 DI / 72 DO with Hi-Speed Skip

Board Series: A16B-2202

Overview

The A16B-2202-0721 is a source-type I/O PCB carrying 104 digital inputs and 72 digital outputs, with a dedicated hi-speed skip function built into the board. It belongs to FANUC's A16B-2202 I/O board family — the standard I/O PCB series used across multiple FANUC CNC control generations.

I/O boards are the interface between the CNC controller and the machine's field devices.

Every sensor, switch, solenoid, relay, and signal light on the machine connects to the CNC through I/O points.

The A16B-2202-0721 provides 104 of those input connections and 72 output connections in a single board, in the source output configuration — meaning the output transistors supply current to the connected loads rather than sinking it.

The hi-speed skip function is a dedicated high-speed input that bypasses normal I/O scan cycle latency. Standard I/O channels are read at the PMC scan rate, which introduces a scan delay between the physical signal event and the CNC's response.

The hi-speed skip input captures the signal interrupt directly at the hardware level, allowing the CNC to record axis position at the moment the skip signal fires.

This is the mechanism behind probing cycles, tool measurement, and in-process gauging operations — anywhere the machine must capture a precise position at the instant a measuring contact is made.

Key Specifications

Source vs. Sink — Why It Matters

FANUC I/O boards come in source and sink output configurations. The wiring approach at the machine's field devices determines which type is correct for a given machine. Source outputs supply positive voltage to the load — the common return of the field device connects to the negative rail. Sink outputs pull the signal low — the field device's positive connects to the supply rail and the I/O board provides the return path.

Mixing source and sink boards in a drive cabinet that was wired for the opposite configuration requires rewiring.

This is not a trivial change on a fully installed machine. Before sourcing a replacement for the A16B-2202-0721, confirm the installed board's output type from its label and from the machine's electrical documentation.

The source/sink designation is always on the board label.

Hi-Speed Skip — Probing and Gauging Applications

The hi-speed skip input on this board connects directly to the CNC's interrupt-handling hardware. When a signal arrives on this input — typically from a touch probe, a tool setter, or a gauging probe — the CNC captures the current axis position count in hardware. No software scan delay applies.

This hardware position capture is what enables precise workpiece probing. Without it, the position recorded at the moment of probe contact would lag by up to one PMC scan cycle — typically a few milliseconds.

At feed rates used for probing, even a few milliseconds of lag translates to measurable position error. The hi-speed skip eliminates this lag.

The position is accurate to the CNC's interpolation cycle resolution.

Probing cycles, automatic tool length measurement, and in-process gauging on FANUC systems depend on this hardware function.

The A16B-2202-0721 provides it as an integrated feature alongside the main I/O channel count.

I/O Row Configuration — Confirm Before Ordering

This board supports two different I/O connector row configurations: a two-row arrangement and a three-row arrangement.

The physical connector layout and the wiring harness connections differ between these configurations.

Installing a board with a different row configuration from the one the machine was wired for requires harness modification.

Before ordering, determine how many rows of I/O connectors the currently installed board uses.

Check the physical board in the cabinet, or check the machine's electrical documentation. This is a practical verification step — the two configurations are otherwise identified by the same part number.

FAQ

Q1: Several PMC outputs show no response, but the PMC ladder appears to be executing normally. Could the A16B-2202-0721 be at fault?

A partial output failure — multiple consecutive outputs not responding while others work — with a normal PMC execution state often points to a driver section fault on the I/O PCB itself. Check the fuse for the output common rail first.

A blown output common fuse kills all outputs fed by that common. If fuses are intact, the output driver section of the board is the likely fault.

Q2: The machine uses a Renishaw probing cycle. The probe fires but the recorded position is consistently offset. Is the hi-speed skip input the issue?

A consistent position offset on probing — rather than random scatter — is more commonly a feed rate or approach vector issue than a skip input hardware fault.

A genuine hi-speed skip input failure causes the CNC to not register the skip event at all, or to register it at the software scan delay position.

If the probe fires and a position is recorded but it is offset, check the probing macro parameters and the feed rate setting.

If no skip event is registered, test the skip input signal at the board connector.

Q3: Is the source-type A16B-2202-0721 interchangeable with a sink-type I/O board of the same DI/DO count?

No. Source and sink boards have different output transistor polarity.

A sink-type load wired to a source output, or vice versa, will not operate correctly and may damage the board or field device. Only replace with a board of matching output type.

Confirm the installed board is source type before ordering.

Q4: The I/O board was replaced but some field device connections are now intermittent. What should be checked first?

Check that all I/O connector harnesses are fully seated on the new board.

I/O board connectors on FANUC PCBs are pressure-fit — partial seating causes intermittent signal faults that are difficult to distinguish from field device problems.

Reseat each connector firmly and re-test the affected I/O points before investigating field wiring.

Q5: How is the hi-speed skip input wired on the A16B-2202-0721?

The hi-speed skip input uses a dedicated connector separate from the standard I/O harness. It connects directly to the probing device's output signal.

The signal polarity and interface voltage must match what the board expects — typically a 24 VDC NPN or PNP signal depending on the machine's electrical configuration.

Refer to the machine's connection manual for the correct wiring diagram.
