FANUC A16B-2202-0880

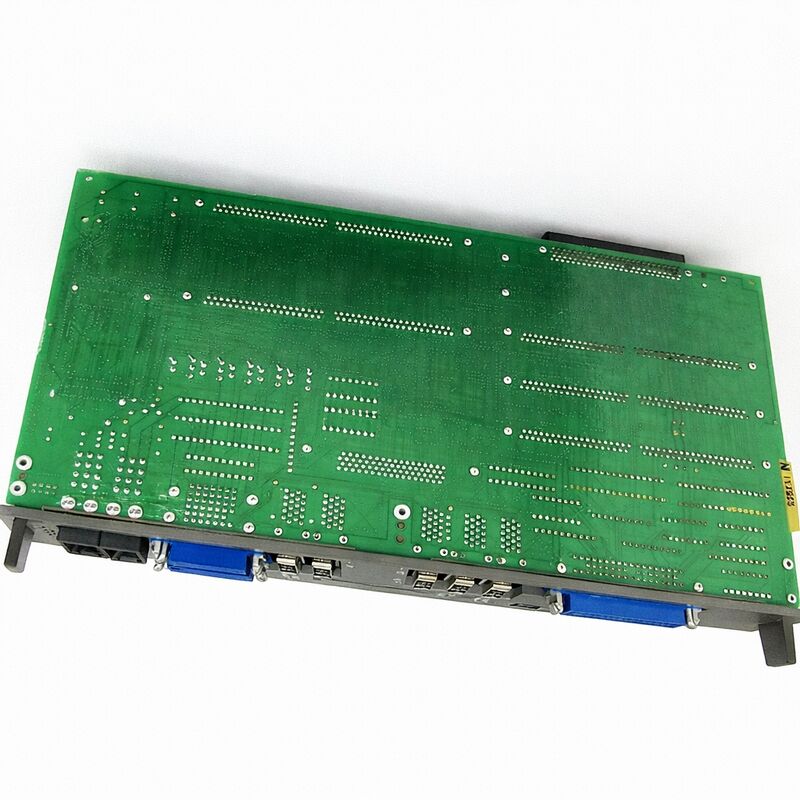

4-Axis Loader Control PCB for FANUC CNC Systems

Product Snapshot

For loader-control applications, the FANUC A16B-2202-0880 is best understood as a 4-axis loader control PCB rather than as a general servo or spindle board.

It is associated with F18M/T and F18B/21B loader-control environments and is positioned as a CNC-side board for equipment that depends on coordinated loader movement and board-level control stability.

That makes this board especially relevant in machine systems where the loader mechanism is integrated into the FANUC control structure and cannot be treated as a separate standalone add-on.

In practical maintenance, replacing the correct loader control PCB helps preserve the original motion logic and board-level compatibility of the loader section without forcing wider system changes.

Parameter Table

Main Description

A board like A16B-2202-0880 belongs to a narrower and more application-specific category than a standard CPU or display PCB.

It is intended for the loader-control side of the machine, where coordinated axis handling and control-board stability matter directly to automated loading performance.

That role is important because loader faults can interrupt cycle continuity even when the main machining section is still available.

From a purchasing standpoint, this model is best suited to repair departments, CNC service companies, and spare-parts buyers supporting machines with integrated loader functions.

It is most valuable when the machine remains operationally worthwhile and the fastest repair path is a direct replacement of the original loader control PCB.

Applications

The A16B-2202-0880 is well suited to 4-axis loader control systems, especially in FANUC-controlled equipment where loader movement and handling logic are integrated into the CNC architecture.

Typical applications include automatic loading systems, machining cells with integrated part handling, loader-board replacement, and restoration of original loader-control circuits in existing FANUC installations.

It also fits board-level repair stock and long-term support for machines using F18M/T or F18B/21B loader-control arrangements.

In these environments, keeping the exact board available can be more practical than trying to adapt a non-matching control card into a loader system that expects the original PCB layout.

Replacement Guide

Before replacing the A16B-2202-0880, technicians should confirm that the fault is actually in the loader-control section rather than in sensors, field wiring, actuator outputs, or the wider CNC I/O path.

Because this board is tied to the loader-control role, diagnosis should include both board-level checks and machine-side loader behavior.

Once installed, the practical test is not only whether the board powers up, but whether the loader section responds correctly across its controlled axes and machine-handling sequence. That includes verifying stable signal processing, correct axis-related reactions inside the loader cycle, and consistent recovery after startup.

The verification steps are practical engineering guidance based on the board’s stated 4-axis loader-control role.

FAQ

Q1: What is A16B-2202-0880 used for?
It is used as a 4-axis loader control PCB in FANUC CNC-related loader systems, especially in F18M/T and F18B/21B loader-control contexts.

Q2: Is this a general servo control board?
No. Its listed role is loader control, which makes it more specific than a general servo amplifier board.

It is intended for the loader-control side of the machine.

Q3: Why is the 4-axis designation important?
Because it indicates the board’s intended loader-control scope. In repair work, axis configuration matters because the control board must match the machine’s original control layout.

Q4: What should be checked before replacement?
Technicians should inspect the loader-side I/O, axis-response behavior, and board connections, and confirm that the problem is not being caused by external devices or the machine’s broader control chain.

Q5: Why is exact part-number matching important here?
Loader-control PCBs are tied to a specific machine function. Using the exact A16B-2202-0880 model is the safer way to preserve compatibility inside the original FANUC loader-control structure.
