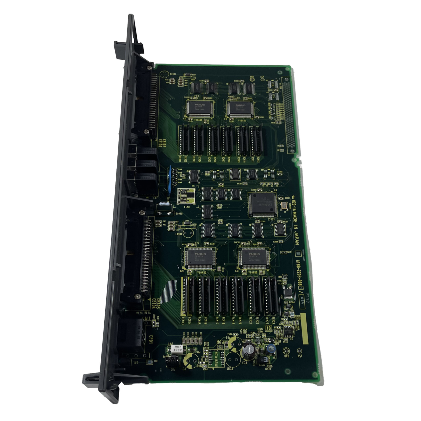

A16B-2203-0111 | FANUC Zero-C C6 I/O PCB — 80DI / 56DO / Series 0-C and 0-D / Machine Interface Board

C6 — The Mid-Range I/O Configuration

Within the A16B-2203-01xx I/O board family for the FANUC Series 0-C CNC, three capacity levels address different machine tool complexity requirements:

The C6 (A16B-2203-0111) positions between the fully-specified C7 and the minimal C5. Its 80/56 DI/DO count covers the I/O requirements of mid-complexity CNC machine tools — machines that need more than the basic C5 provides but do not reach the full signal complement of a complex machining centre with automatic pallet changers and tool magazines.

This makes the C6 the correct specification for:

• Standard 2-axis CNC turning centres with moderate automation
• Compact CNC machining centres without pallet changers
• Grinding machines with moderate machine interface complexity
• Machines where the C7's additional 24 inputs and 16 outputs would simply go unused

Key Specifications

PMC Ladder Connection — How the Board Functions

The A16B-2203-0111 connects to the Series 0-C CNC's PMC (Programmable Machine Controller) ladder logic via the I/O Link serial interface. The PMC executes the machine's sequence logic:

1. Input scan: Every PMC cycle, the board reads all 80 input terminal states — limit switches, sensors, operator panel buttons, confirmation signals — and forwards them to the PMC.
2. Output update: Every PMC cycle, the PMC writes output commands to the board's 56 output channels — activating coolant pumps, relay coils, solenoid valves, indicator lamps.
3. Machine sequencing: The PMC evaluates the ladder rungs against the current input states and determines the output states — effectively implementing the machine tool's sequence logic.

When A16B-2203-0111 fails, both input reading and output driving stop — the PMC loses contact with the machine field devices.

Application Scenarios

0-TC turning centre I/O board failure: A FANUC 0-TC CNC lathe develops PMC alarms affecting hydraulic chucking and coolant functions. The A16B-2203-0111 C6 board is identified as the fault. Replacement restores all 80/56 machine I/O.

0-MC compact machining centre: A small CNC machining centre without a pallet changer uses the C6 I/O specification — 80 inputs and 56 outputs cover its spindle interlock, door, coolant, and axis brake signals comfortably within the C6 capacity.

FAQ

Q1: Can A16B-2203-0111 (C6) replace A16B-2203-0110 (C7) if the C7 is unavailable?

Only if the PMC programme uses 80 or fewer inputs and 56 or fewer outputs. If the machine's PMC programme addresses signals in the range 81–104 DI or 57–72 DO, those signals do not exist on the C6 board — PMC alarms would result. Confirm the machine's I/O point usage from the PMC ladder documentation before substituting a lower-capacity board.

Q2: Does A16B-2203-0111 work with Series 0-D controls as well as 0-C?

Yes. The A16B-2203-01xx C-series I/O boards are confirmed for both 0-C and 0-D (and 0-F) era controls. DNC Electronics confirms the C7 (A16B-2203-0110) works with 0-MD, 0-TD, 0-MF, 0-TF configurations — the same compatibility extends to the C6 A16B-2203-0111 within the same board family.

Q3: What connectors are used on A16B-2203-0111?

The C6 board has fewer populated connector positions than the C7 (which carries M18, M1, M20, M2, M19). The C6's 80/56 signal complement uses a subset of the connector array. Confirm the exact connector layout from the Series 0-C hardware connection manual for the specific machine configuration.

Q5: Does replacing A16B-2203-0111 require PMC programme changes?

No. The PMC programme uses I/O address numbers, not board-specific identifiers. A like-for-like replacement of the A16B-2203-0111 with the same C6 board restores I/O communication without any PMC programme modification.
