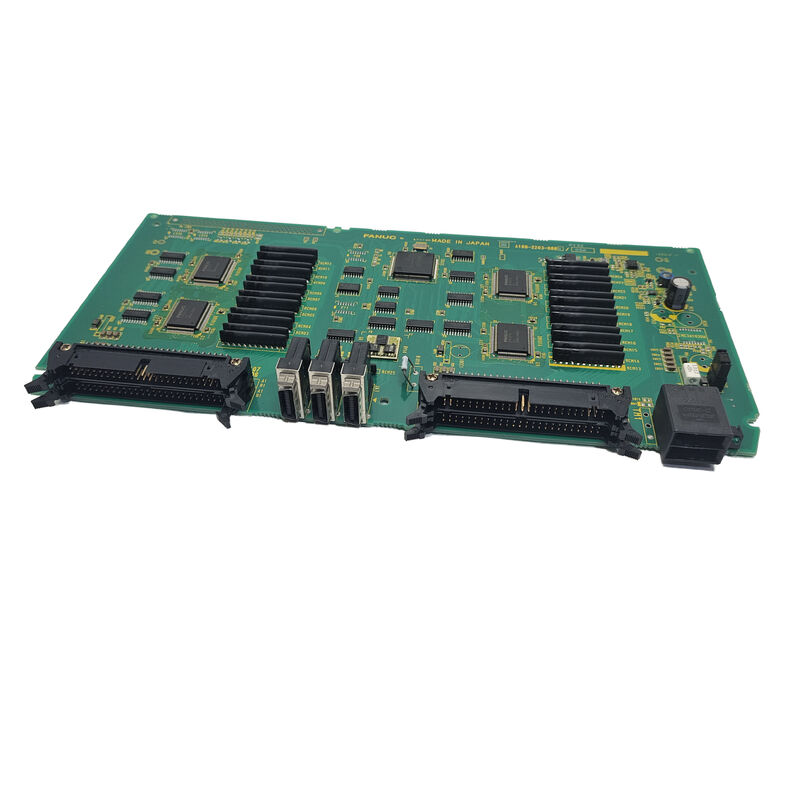

Fanuc A16B-2203-0200 Interface Board A16B22030200 A16B-22O3-O2OO

A16B-2203-0200 | FANUC A16B-2203 Series PCB — CNC Interface / Industrial Automation / Japan Manufactured

A16B-2203-020x — Within a Versatile Series

The A16B-2203 numbering spans a wide range of board types across FANUC's product generations. The 02xx group within this series sits in a distinct functional zone — separate from the 01xx I/O boards (C-type I/O for Series 0-C), the 05xx–07xx servo and spindle wiring boards (αis/αi amplifier internals), and the 08xx–09xx power and robot controller boards.

Boards in the A16B-2203-02xx range serve specific interface or control functions within the FANUC CNC and automation architecture. The FANUC Maintenance Manual for Series 0-C/0-D (GFZ-61395E/06) references the A16B-2203-020x range in connection with servo axis interface cards:

A16B-2203-0020: 4-axis servo interface card (Type B interface, 1st and 2nd axis, 3rd and 4th axis) for Series 0-C CNC — providing the servo axis connection between the CNC main board and the servo amplifier units for up to four controlled axes.

A16B-2203-0021: 2-axis variant in the same servo interface card family for Series 0-C.

The A16B-2203-0200 is in this same numerical zone, serving a defined interface function within the FANUC system it is installed in.

Key Product Information

Series 0-C Era Interface Boards — Design Principles

The A16B-2203-02xx family operates within the Series 0-C and related CNC generation's hardware architecture. These CNC systems use a modular card architecture where:

Axis interface cards connect the CNC's main processor to the servo amplifier drives — translating digital axis commands into the communication format understood by the drive hardware.

Signal routing boards aggregate and distribute control signals between the CNC's internal bus and the connected hardware — ensuring that commands from the main CPU reach the correct destination boards without contention.

Specialised interface PCBs provide hardware-specific connections for particular machine tool functions or communication protocols specific to the Series 0-C generation.

The A16B-2203-0200 serves its defined role in this architecture, confirmed from its label installed in the specific CNC system.

Application Scenarios

CNC interface board replacement: A FANUC CNC system develops a fault traceable to the A16B-2203-0200 board. The board is identified from its part number label, the replacement is sourced, and system function is restored.

Maintenance spare inventory: A facility operating FANUC CNC equipment with A16B-2203-0200 boards maintains a spare to enable rapid response to a board fault.

FAQ

Q1: How do I confirm A16B-2203-0200 is the correct board for my FANUC system?

Read the part number from the installed board label. If it reads A16B-2203-0200, this is the confirmed replacement. Cross-reference against the spare parts list in the FANUC maintenance manual for the applicable CNC model — the manual maps each board slot to its part number and functional description.

Q2: Is A16B-2203-0200 related to the C-type I/O boards (A16B-2203-0110/0111)?

No. The C-type I/O boards are in the A16B-2203-01xx range (0110, 0111, 0112). The A16B-2203-0200 is in the 02xx range — a different functional group within the same A16B-2203 series. The series number alone does not indicate the same function; the specific part number within the series determines the function.

Q3: Does replacing A16B-2203-0200 require CNC configuration changes?

This depends on the board's functional role. Interface boards that pass signals without storing configuration data typically require no changes after replacement. Boards that hold address configuration or hardware settings may require post-replacement configuration. Confirm from the applicable FANUC maintenance documentation.

Q4: What ESD precautions apply to A16B-2203-0200?

Handle with a grounded anti-static wrist strap on an ESD-safe work surface. Store and transport in anti-static packaging. Power down the CNC completely before accessing any internal boards. The SMD-construction ICs on A16B-2203 series boards are ESD-sensitive.
