A16B-2203-0650 | FANUC αi SPM-2.2i Spindle Module Wiring Board — A06B-6111-H002 / 2.2kW / Control PCB A20B-2100-0800

SPM-2.2i — The Entry Point of the αi Spindle Range

The FANUC αi Spindle Power Module (SPM) A06B-6111 series covers spindle drive amplifiers from 2.2kW to 55kW within a single product family. The SPM-2.2i (A06B-6111-H002) is the smallest in this range — suited to light spindle motor applications where 2.2kW continuous drive power meets the machining requirement.

The A06B-6111 series uses standard 200VAC (three-phase) input, making it the appropriate spindle drive for machines installed in 200V supply regions. Its output drives FANUC αi series AC spindle motors.

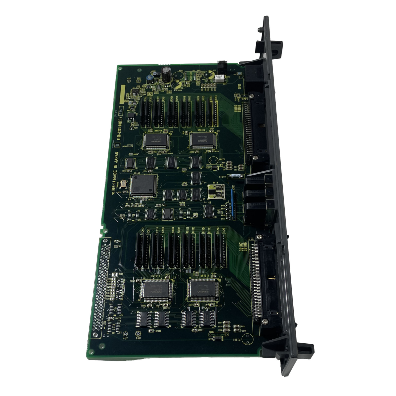

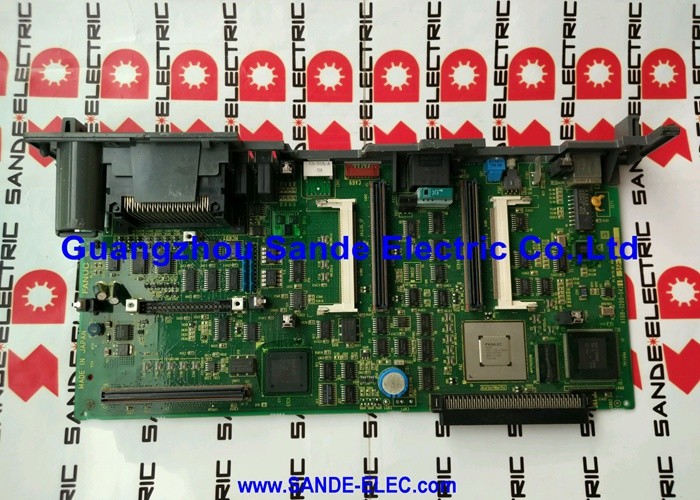

The A16B-2203-0650 is the wiring board for this 2.2kW module — the physical PCB layer that hosts all the external connectors and routes the spindle motor current, DC bus supply, and encoder feedback connections within the SPM-2.2i housing.

Key Specifications

αi SPM Wiring Board Family — A16B-2203-065x

The A16B-2203-065x range is the wiring board family for the smaller ratings in the αi SPM series (A06B-6111):

All four variants use the same control PCB (A20B-2100-0800). The wiring board changes between ratings because the physical size of the power components — IGBT devices, bus conductors, and thermal management hardware — scales with the power rating.

Application Scenarios

SPM-2.2i spindle module wiring board fault: A small CNC turning centre using an A06B-6111-H002 spindle module develops spindle motor output problems traceable to the wiring board's motor connector area. The A16B-2203-0650 is replaced, restoring correct spindle output.

Drive module refurbishment: A specialist CNC service centre overhauling an SPM-2.2i module replaces the A16B-2203-0650 wiring board as part of a complete internal board renewal.

FAQ

Q1: Is A16B-2203-0650 interchangeable with A16B-2203-0651 (SPM-5.5i wiring board)?

No. Despite using the same control PCB (A20B-2100-0800), each wiring board is matched to its specific SPM power rating. The SPM-2.2i wiring board (0650) and the SPM-5.5i wiring board (0651) have different physical layouts to accommodate different IGBT device footprints and current-carrying hardware. They are not interchangeable.

Q2: Does the SPM-2.2i require a separate PSM (Power Supply Module)?

Yes. The A06B-6111 SPM receives its DC bus from an external PSM — it does not have an integrated power supply. The PSM generates the regulated DC bus from the AC mains supply; the SPM draws from this bus and converts it to variable-frequency AC for the spindle motor.

Q3: Does replacing A16B-2203-0650 affect spindle parameters?

No. Spindle parameters (speed limits, gear ratios, motor type, acceleration) are stored in the CNC's main parameter memory. Replacing the wiring board does not affect stored parameters. After fitting the replacement, the CNC re-establishes serial spindle communication and applies the existing parameters.

Q4: What discharge procedure applies before accessing A16B-2203-0650?

The SPM-2.2i contains a DC bus capacitor bank that retains dangerous voltage after mains power removal. Follow the FANUC maintenance manual's discharge wait procedure for the A06B-6111-H002 module before opening the housing or handling internal boards.

Q5: What spindle motors does the SPM-2.2i (A16B-2203-0650 wiring board) typically drive?

The SPM-2.2i is matched to FANUC αi series spindle motors in the 2.2kW output class — typically motors in the αiS 2.2/10000, αiS 3/6000, or similarly rated αi spindle motor range. These motors power small-frame CNC machines where 2.2kW is sufficient for the machining application.
